Projection relationships

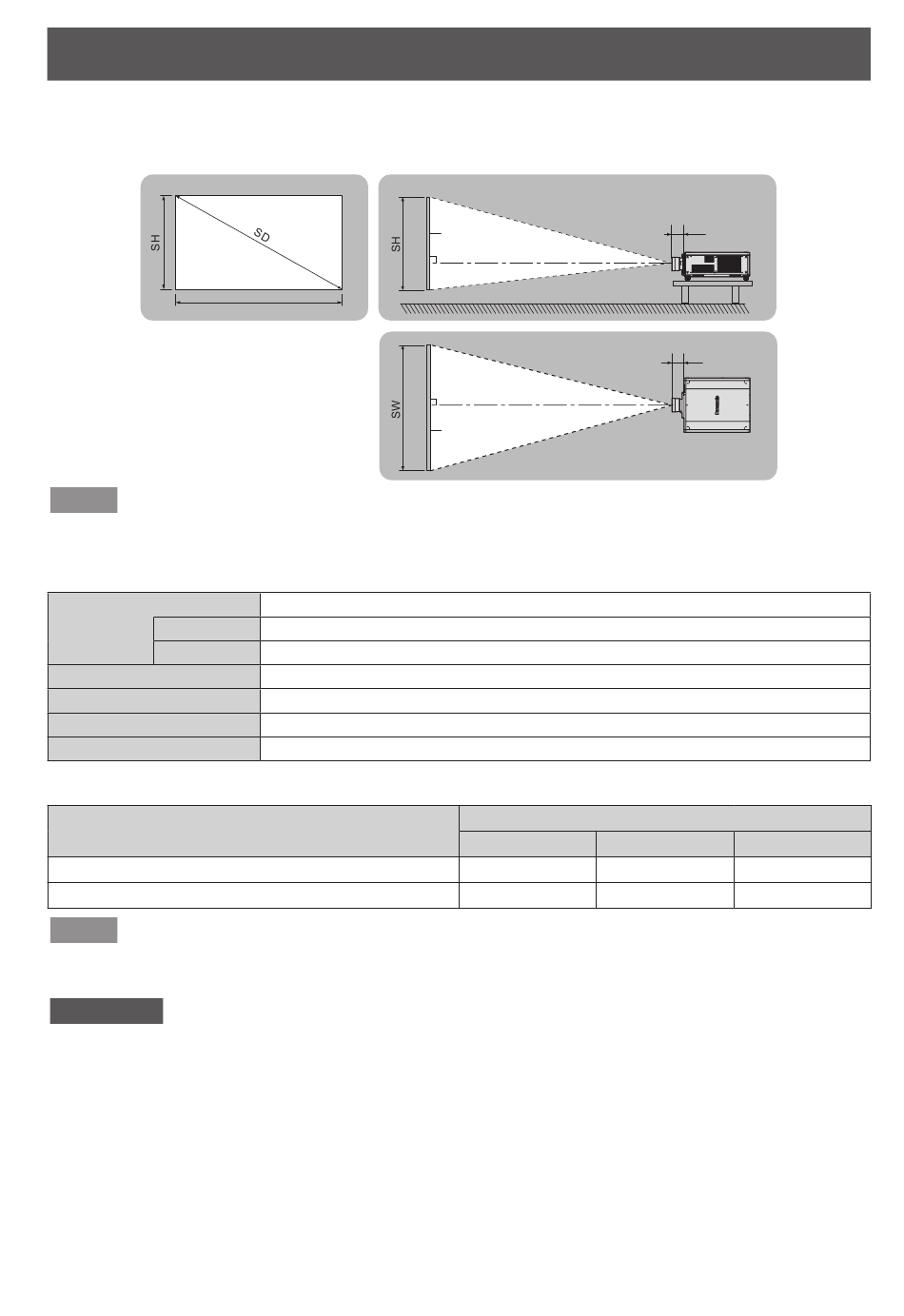

The dimensional relationship between the screen and the projector is shown below.
■ Dimensional relationship diagram
Note
z This diagram assumes that the size and position of the projected image will be adjusted so
that the image fills the entire screen.
z This illustration is not drawn to scale.
L
LW
LT
L1
SH
SW
SD
zDimension for L1 (approximate values)
Projector model
PT-SRQ32KC / PT-SRZ31KC / PT-SRS30KC
PT-SRQ22KC / PT-SRZ21KC / PT-SRS20KC
Note
z The illustrations of projectors in this manual are for informational purposes only and do not
represent a specific projector model. Configurations may vary with the model.
Attention
z To prevent obstruction of the intake and exhaust vents, install the projector with a
clearance at least 500 mm (1 ft. 7 in.) from walls and objects.
If you are installing the projector in a sealed space, be sure to provide additional air
conditioning equipment and ventilation equipment. Insufficient ventilation will result in an
accumulation of heat and may activate the projector's protection circuit.
z Avoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).
■ Dimensional relationship
For details on the projection distance (L), refer to "Projected image size and Projection
distance" and "Projection distance formulas" in the Appendix.
8-ENGLISH
投写画面
Projected image
SW
Projection distance
Minimum distance
Maximum distance
Lens protrusion dimension
Projected image height
Projected image width
Projected image size
スクリーン
Screen
L (LW/LT)
L (LW/LT)
スクリーン
Screen
Dimension for L1 (approximate value)
ET-D3LEW10C ET-D3LET30C
0.18
0.21
L1
L1
(Unit: m)
ET-D3LET40C
0.15 0.10
0.18 0.13
