LEGRAND MIDDLE ATLANTIC forum FM-DS-6675FS-FA3B Instruction Sheet

Xl display stand for single and dual displays
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

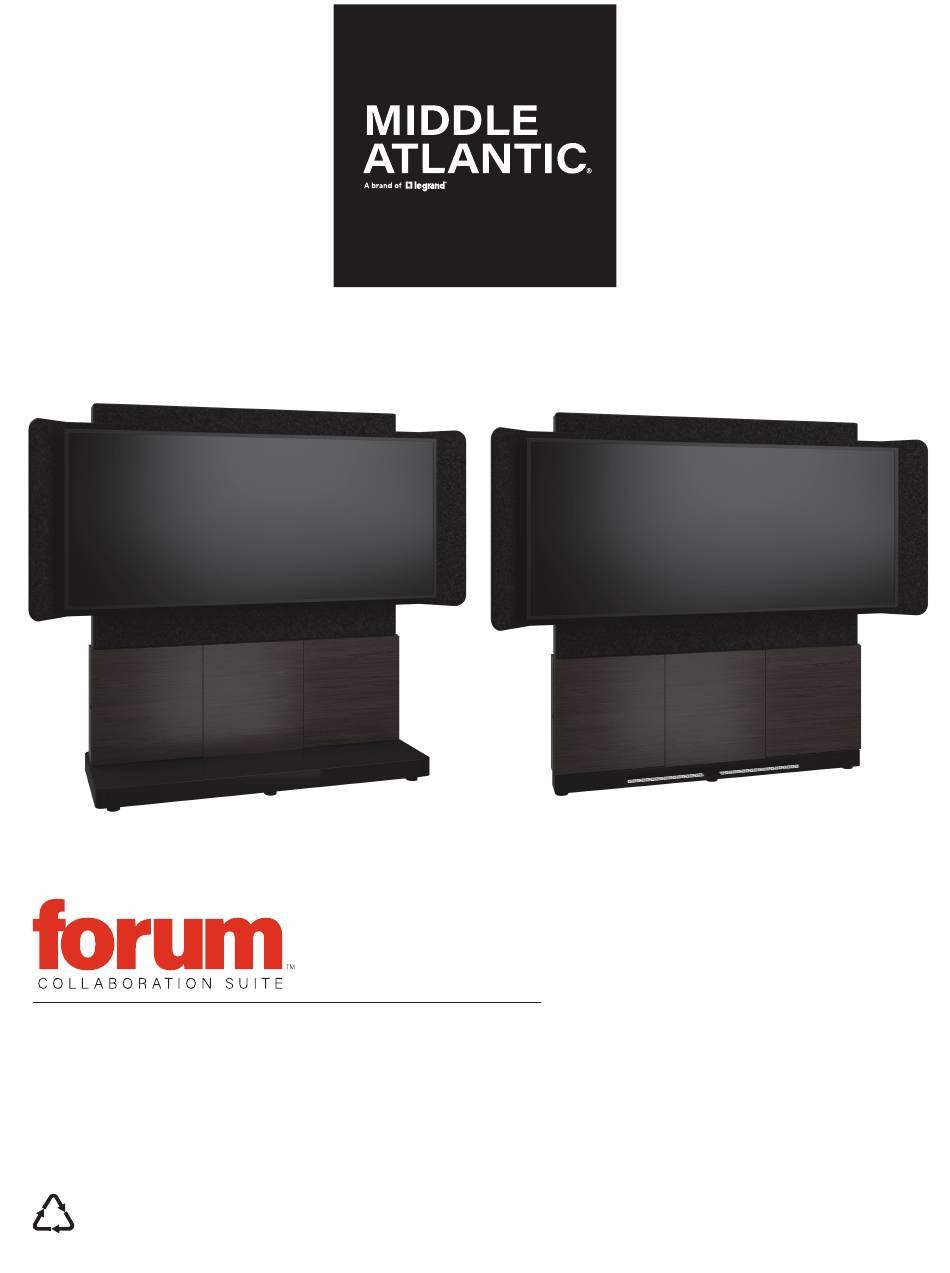

NOTE: Free standing and floor-to-wall models shown.
XL Display Stand for Single and Dual Displays
Instruction Sheet
100-00087 Rev A
22
PAP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIDDLE ATLANTIC forum FM-DS-6675FS-FA3B and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND MIDDLE ATLANTIC forum FM-DS-6675FS-FA3B

Summary of Contents for LEGRAND MIDDLE ATLANTIC forum FM-DS-6675FS-FA3B

  • Page 1 NOTE: Free standing and floor-to-wall models shown. XL Display Stand for Single and Dual Displays Instruction Sheet 100-00087 Rev A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions......................3 - 8 Weight Ratings............................9 Supplied Components and Hardware..................9 - 11 Required Tools..........................11 Introduction............................12 Removing the Panels from Your Display Stand................12 Attaching the Display Stand to Your Wall (Floor-To-Wall Models Only)........13 - 15 Removing the Doors from Your Display Stand................15 - 16 Repositioning the 10”...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS - EN • Read these instructions. • Heed all warnings. • Clean only with dry cloth. • Keep these instructions. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magni- tude to constitute a risk of electric shock to persons.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS - EN (CONTINUED) Safety Instructions: Rack Mount Elevated Operating Ambient: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
  • Page 5 INSTRUCCIONES DE SEGURIDAD IMPORTANTES - ES • Lea estas instrucciones. • Preste atención a todas las advertencias. • Limpie solamente con un paño seco. • Guarda estas instrucciones. • Siga todas las instrucciones • Utilice únicamente accesorios especificados por el fabricane UNDERSTANDING SAFETY SYMBOLS PELIGRO VOLTAJE PELIGROSO: El rayo con el símbolo de punta de flecha dentro de un triángulo equilátero alerta al usuario de la presencia de voltaje peligroso no aislado dentro del producto que puede ser de suficiente magnitud como para...
  • Page 6 INSTRUCCIONES DE SEGURIDAD IMPORTANTES - ES (CONTINUACION) Instrucciones de seguridad: montaje en rack Ambiente de operación elevado: si se instala en un ensamblaje de bastidor cerrado o de varias unidades, la temperatura ambiente de funcionamiento del entorno del bastidor puede ser mayor que el ambiente ambiental. Por lo tanto, se debe considerar la instalación del equipo en un entorno compatible con la temperatura ambiente máxima (Tma) especificada por el fabricante.
  • Page 7 INSTRUCTIONS DE SÉCURITÉ IMPORTANTES - FR • Respectez tous les avertissements. • Nettoyer uniquement avec un chiffon sec. • Lire ces instructions. • Suivez toutes les instructions • N'utilisez que des accessoires spécifiés par le fabricant. • Conservez ces instructions. COMPRENDRE LES SYMBOLES DE SÉCURITÉ...
  • Page 8 INSTRUCTIONS DE SÉCURITÉ IMPORTANTES - FR (CONTINUER) Consignes de sécurité: montage en rack Température de fonctionnement élevée: Si installé dans un rack fermé ou à unités multiples , la température ambiante de fonctionne- ment de l'environnement du rack peut être supérieure à ambiante de la pièce. Par conséquent, il faudrait envisager d'installer l'équipe- ment dans un environnement compatible avec la température ambiante maximale (Tma) spécifiée par le constructeur.

  • Page 9: Weight Ratings

    Le poids total de l'équipement ne doit pas dépasser les quantités indiquées dans le tableau précédent. SUPPLIED COMPONENTS AND HARDWARE If any pieces are missing or damaged, please report it immediately to Technical Support at av.support@legrand.com or (866) 977-3901. (2x) CHIEF GRADE 5 TOGGLER KIT (Model Number: FCAT1)
  • Page 10 SUPPLIED COMPONENTS AND HARDWARE (CONTINUED) Dual Display Sizes 50-55” 56-65” 66-75” Single Display Sizes 56-65” 70-75” 76-85” 86-100” Shroud Interface Bracket Pair Jupiter 81” ® Rear Shroud NOTE: Only the 75” dual display shroud kit Jupiter 105” ® Bracket Pair contains (2x) bracket pairs.

  • Page 11: Required Tools

    IP-A IP-A IP-A (4x) Washer IP-C NOTE: • To order more hardware, contact support at av.support@legrand.com or (866) 977-3901. • Additional hardware is included that may not be required for your installation. REQUIRED TOOLS • 7/16” Socket • Protective Eyewear WARNING: Use tools with caution and •...

  • Page 12: Introduction

    INTRODUCTION NOTE: • Please take the time to carefully unpack and inspect all of the products you ordered and save this instruction sheet for future use. • Maintenance and care information is provided in Care and Cleaning of Products (I-00788) and Unpacking and Handling Precautions (I-00787) for your convenience.

  • Page 13: Attaching The Display Stand To Your Wall (Floor-To-Wall Models Only)

    ATTACHING THE DISPLAY STAND TO YOUR WALL (FLOOR-TO-WALL MODELS ONLY) WARNING: This procedure requires at least one additional person. ADVERTENCIA: Este procedimiento requiere al menos una persona adicional. AVERTISSEMENT: Cette procédure nécessite au moins une personne supplémentaire. 1. Carefully team lift your display stand (A) and place it on its feet against your desired mounting wall.
  • Page 14 ATTACHING THE DISPLAY STAND TO YOUR WALL (IF PURCHASED, CONTINUED) WARNING: When securing to a wall with steel or wood studs, your mounting hardware must hit the stud through both top and bottom keyhole slot locations on at least one side of your display stand for proper support.

  • Page 15: Removing The Doors From Your Display Stand

    ATTACHING THE DISPLAY STAND TO YOUR WALL (IF PURCHASED, CONTINUED) 8. Place a level on the top center of your display stand and make any final adjustments to the leveling feet (by carefully team tilting the display stand) as necessary. Bend straps toward wall to remove...
  • Page 16 REMOVING THE DOORS FROM YOUR DISPLAY STAND (CONTINUED) 3. Push the the sliding rail outward while pressing the release lever until it is exposed. (FIGURE K) Release Lever NOTE: Press the release lever Locked in Open Position NOTE: Outer Release Lever left door shown NOTE: Push the rail open.

  • Page 17: Repositioning The 10" Lever Lock Plate

    For more information, NOTE: Lever Lock plate can be repositioned in the contact support at av.support@legrand.com or top three storage columns and in the bottom-middle column from the front or the back, as desired. (866) 977-3901.

  • Page 18: Using Top Small Device Storage And Bottom Rackmount Bays

    USING TOP SMALL DEVICE STORAGE AND BOTTOM RACKMOUNT BAYS 1. After installing your equipment, run cabling using openings between the top small device storage columns and the bottom rackmount bays, if needed. FLOOR-TO-WALL DISPLAY STANDS ONLY: Load components into the top small device storage columns and bottom bays at this point in the overall installation Top Small Device Storage Columns and configuration process because access to these...

  • Page 19: Determining The Default Height From The Floor To The Bottom Of Your Display

    DETERMINING THE DEFAULT HEIGHT FROM THE FLOOR TO THE BOTTOM OF YOUR DISPLAY Use the following steps to determine the height from the floor to the bottom edge of your display when mounted on your display stand. Diamond-shaped hole punched into each 1.

  • Page 20: Customizing The Height From The Floor To The Bottom Of Your Display

    CUSTOMIZING THE HEIGHT FROM THE FLOOR TO THE BOTTOM OF YOUR DISPLAY Use the following step to customize the height from the floor to the bottom edge of your display using the default height calculated in the previous topic. • Use the default height calculated to determine how much higher or lower you would like the bottom...
  • Page 21 ATTACHING HORIZONTAL BRACKETS, EXTRUSION, AND MAKING ADJUSTMENTS (CONT.) NOTE: Isometric view shown for clarity. 4. Slide horizontal extrusion (P) into interlock tabs found on horizontal extrusion brackets (AA, positioned loosely), as shown. (FIGURE Z) Interlock Tabs NOTE: For dual and Jupiter 105” display installa- tions, make sure to attach both extrusions at this point.

  • Page 22: Attaching Shroud Brackets And Making Adjustments

    ATTACHING SHROUD BRACKETS AND MAKING ADJUSTMENTS Based on the desired height of your horizontal extrusion and the number of your displays, plan to prep and install the shrouds at the same level. NOTE: Attach shroud interface bracket (M) and rear shroud bracket (N) to have a fully prepped shroud before mounting it on the display stand.
  • Page 23 ATTACHING SHROUD BRACKETS AND MAKING ADJUSTMENTS (CONTINUED) Interlock NOTE: Attach shroud (L) to the display stand at the same level of your desired height, which was established in previ- ous topics. 6. Carefully team lift shroud and slide interlock tabs located on shroud interface bracket (M) into the (2x) Interlock channels found on the back end of the horizontal extru-...

  • Page 24: Attaching End Caps To The Horizontal Extrusion

    ATTACHING SHROUD BRACKETS AND MAKING ADJUSTMENTS (CONTINUED) NOTE: Once shrouds are fixed to your display stand, proceed to attaching front and bridge panels. 12. Attach front panels, previously removed in “Removing the Panels from Your Display Stand” on page 12, behind shroud. Screw Locations Circled 13.

  • Page 25: Attaching Interface Brackets To The Back Of Your Display

    You may need to install any additional accessories you may have purchased such as compatible camera mounts, sound bars and other audio products (available from Legrand or other providers) before your display mount and display. Before proceeding, refer to the instructions provided with your accessory for the proper installation order.

  • Page 26: Leveling Your Display Stand (Free-Standing Models Only)

    ATTACHING INTERFACE BRACKETS TO THE BACK OF YOUR DISPLAY (CONTINUED) FOR SINGLE JUPITER 105” DISPLAY INSTALLATIONS: NOTE: Adjust torque on electric drill to lightest setting and only increase as necessary. 5. Use socket wrench and (4x) 5/16”-18 hex nuts (V) to attach the adapter brackets (W) and display interface brackets (Z) to the back of your display as shown.

  • Page 27: Hanging Your Display

    HANGING YOUR DISPLAY WARNING: This procedure requires at least one additional person. ADVERTENCIA: Este procedimiento requiere al menos una persona adicional. AVERTISSEMENT: Cette procédure nécessite au moins une personne supplémentaire. 1. With at least one other person, carefully lift your display slightly above your horizontal extrusion (P).

  • Page 28: Re-Attaching The Doors From Your Display Stand

    Unit C, Island Rd. Eden Prairie, MN, 55344, USA DK, Weert, Netherlands Reading RG2, 0RP- UK At Legrand AV Inc. we are always listening. Your comments are welcome. Legrand AV is an ISO 9001 and ISO 14001 Registered Company. Page 28...
