Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown below.
Please read all instructions carefully. See the hardware and furniture part listing for guidance. Be sure you have
all parts listed before beginning assembly. Place all wooden parts on a clean, flat surface to protect the finish
from scratches. Follow the diagram to assemble.
CAUTION
1. Do not fully tighten the nuts or bolts until the table is fully assembled.
2. Please tighten by hand, not by a drill. Overtightening will damage threads. Do not overtighten.
3. Keep all hardware out of the reach of childen.
ITEM
DESCRIPTION
A
HEADBOARD
B
HEADBOARD LEG (L)
C
HEADBOARD LEG (R)
D
FOOTBOARD
SIDE RAIL
E
F
SLAT
G
SUPPORT LEG
HARDWARE DIMENSIONS
VERIFICATION TOOL

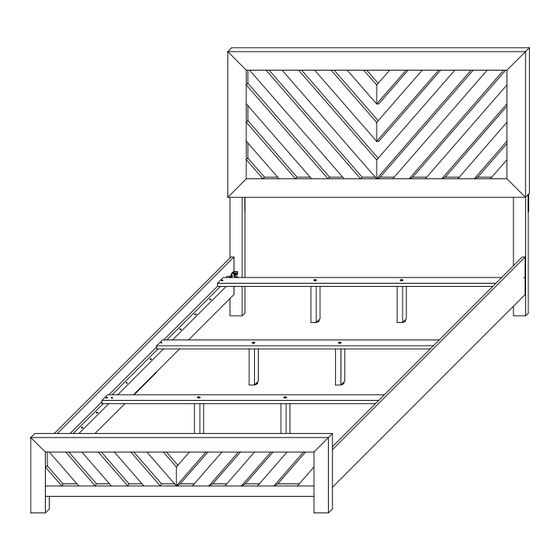

ASSEMBLY INSTRUCTIONS
BISCAYNE COLLECTION
MODEL : B3314-215 BISCAYNE 6/0 WK HB, FB, & SLATS
MODEL : B3314-235 BISCAYNE 6/0 WK SIDE RAIL
PARTS LIST
SKETCH
inches
QTY
ITEM
DESCRIPTION
BOLT M8 x
1
1 PC
BOLT M8 x 1
1 PC
2
3
SPRING WASHER M6 x
1 PC
FLAT WASHER M6 x
4
1 PC
5
CSK SCREW M4 x 1
2 PCS
ALLEN KEY M5 x 2
6
4 PCS
8 PCS
1
2
HARDWARE LIST
SKETCH
5
"
8
9
"
16
5
"
16
5
"
16
1
"
4
9
"
16
3
MADE IN MALAYSIA
QTY
8 PCS
8 PCS
8 PCS
8 PCS
8 PCS
1 PC
4
Advertisement
Related Manuals for New Classic Furniture BISCAYNE 6/0 WK HB B3314-215
Summary of Contents for New Classic Furniture BISCAYNE 6/0 WK HB B3314-215
- Page 1 ASSEMBLY INSTRUCTIONS BISCAYNE COLLECTION MODEL : B3314-215 BISCAYNE 6/0 WK HB, FB, & SLATS MODEL : B3314-235 BISCAYNE 6/0 WK SIDE RAIL Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment.
- Page 2 STEP 1: Assemble the Headboard Leg (B) and (C) with the Headboard (A) by using Allen Key (6) with hardware (2), (3) and (4). ** Attention: DO NOT OVER TIGHTEN THE BOLTS. BACK VIEW STEP 2: Assemble the Side Rail (E) with the Headboard Leg (B), Headboard Leg (C) and Footboard (D) by using Allen Key (6) with hardware (1).
- Page 3 STEP 3: Turn the Support Leg (G) clockwise to assemble it with the Slat (F). Repeat this step for another Support Leg (G) and Slat (F). STEP 4: Assemble the Slat (F) with the Side Rail (E) by using CSK Screw (5). ** Attention: DO NOT OVER TIGHTEN THE SCREW.
