Summary of Contents for CAMBRIONIX SS15

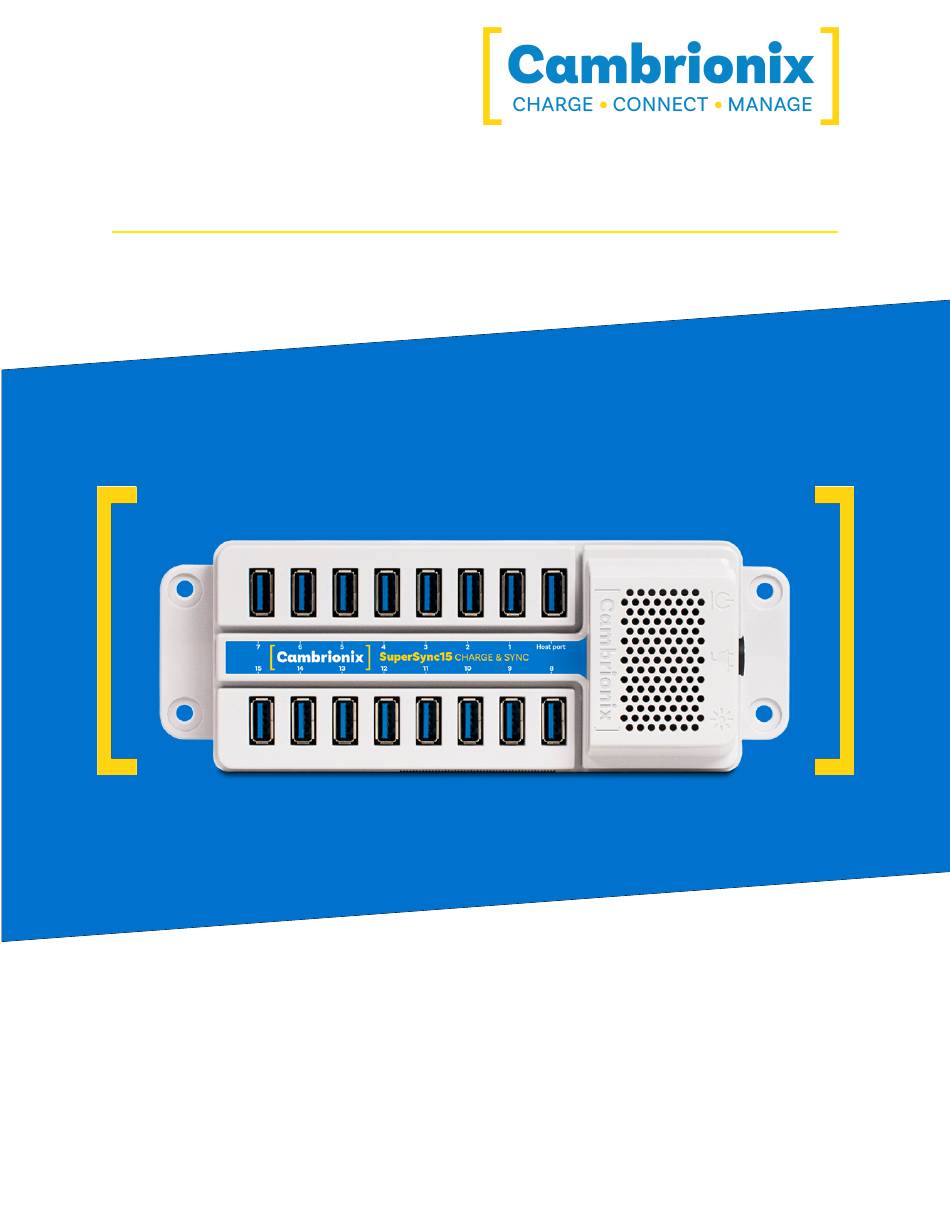

- Page 1 User Manual SS15...
-
Page 2: Table Of Contents
1.Table of Contents 1.Table of Contents 2.Your SS15 at a glance 2.1.Key Features 3.Safety 3.1.Signal word panel 3.2.Safety alert symbol 3.3.Pictograms 3.4.Product modification 3.5.Power supply 3.6.Storage and Installation 4.Getting Started 4.1.What's Included 4.2.Connecting to the mains 4.3.Previous versions of Windows 4.4.Registration... -
Page 3: Your Ss15 At A Glance
(up to 2.1A). The firmware can be up-dated to allow new charging profiles to be added, ensuring the SS15 can charge the latest devices. It is ready to charge out-of-the-box and to sync devices when attached to a host computer. -
Page 4: Safety
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor (reversible) injury. Indicates a potentially hazardous situation which, if not avoided, may result in damage to the product and/ or its functions or of a property in its proximity. SS15 Page 3 of 17... -
Page 5: Safety Alert Symbol
Mandatory regulation 3.4.Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant to relevant safety standards, which could result in injury or damage to the product. -
Page 6: Power Supply
Do not short circuit the Power Supply Unit (PSU) supplied with your product Do not disconnect the power cord while the product is being used Do not bend or pull the power cord with excessive force SS15 Page 5 of 17... -
Page 7: Storage And Installation
Do not place the power cord near heat sources Connect the plug to an earthed socket Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range... -
Page 8: Getting Started
If you are using a version of Microsoft Windows prior to Windows 10 you will need to install Cambrionix CDC drivers for enabling the full functionality of the hub. To install the drivers please detach the hub from the PC before executing the downloaded installer. The installer will prompt you for permission to install drivers signed by Cambrionix, please agree to this. -
Page 9: Using Your Ss15
5.Using your SS15 5.1.Using without connecting to a host computer When the Hub is switched on and is not connected to a local host computer it is automatically configured to charge devices using its intelligent charging algorithm. Simply connect the devices to be charged to any of the available ports (not the Host Port) using USB - compliant cables. - Page 10 Please note that USB specifications require a minimum 100 mA charge current to be delivered during data transfer. As indicated in above, if the attached device has a BC1.2 compliant CDP port, the device can draw up to 2.1A while transferring data. SS15 Page 9 of 17...
-
Page 11: Scalability
USB port. Thereafter, five additional hubs can be attached to the downstream USB ports of the first hubs by their host ports as shown below. SS15 Page 10 of 17... -
Page 12: Manage Ports & Devices
Full instructions on LiveViewer are available on our website. 5.5.2 Cambrionix API Cambrionix API allows you to monitor and control each port in more detail and to integrate these functions into your own workflow processes. The API comprises a daemon that can be downloaded from www.cambrionix.com/products/api... -
Page 13: Command Line Instructions (Cli)
Show id string Board description logc <s> Report mA for each port every <s> seconds Report state for all ports every [s] seconds and loge [s] events as they occur Live view (periodically updated screen SS15 Page 12 of 17... - Page 14 <|> is a list of profile IDs Blank to use all profiles <i> is a single profile ID Optional parameters are shown in [ ] Com- Parameters pulsory in < > Tab key Re-runs previous command Cursor up recalls last command SS15 Page 13 of 17...
-
Page 15: Cleaning Your Ss15
If there is a dirt/ spillage is over a ventilation slot, external data/ power connector or product aperture, please remove power from the unit without touching the liquid and contact Cambrionix immediately Ensure that the product is switched off and the power cord is removed from the product. -
Page 16: Product Specifications
6.3.Physical specifications Input Connectors USB 3.2 Type-A Output Connectors 15 x USB 3.2 Type-A Ambient Operating Temperature range 0 - 35 °C Relative humidity 5% to 95% non-condensing Dimensions 198.4 x 73 x 40mm Weight 1.6kg SS15 Page 15 of 17... -
Page 17: Power Supply Specifications
6.4.Power Supply Specifications Input Voltage 100-250Vdc Input Current 2.5A @ 115Vac Input Frequency 50-60Hz Input Connector Output Voltage 12Vdc Output Current Output Power 180W Output Connector 4-pin DIN SS15 Page 16 of 17... -
Page 18: Compliance And Standards
CE Tested and marked China CCC Certification FCC Part 15 Tested and marked Housed within a UL94-VO specification fire enclosure Japanese PSE certification (pending) RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 SS15 Page 17 of 17... - Page 19 Cambrionix Ltd The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS United Kingdom T +44 (0) 1223 755 520 E enquiries@cambrionix.com W www.cambrionix.com © 2021 Cambrionix Ltd. All rights reserved.
