- Page 1 PowerPad15s User guide v3...
- Page 2 Details covering how to update the firmware are available online at cambrionix.com/cambrionix-updater. Note: If in any doubt about how to operate or install the PowerPad15s please contact Cambrionix Ltd at support@app.cambrionix.com...
-
Page 3: Table Of Contents
Contents 1. Operation 2. Installation 3. Port control and monitoring 4. Safety messages 5. Electrical specifications 6. Warranty 7. Contact details... -
Page 4: Operation

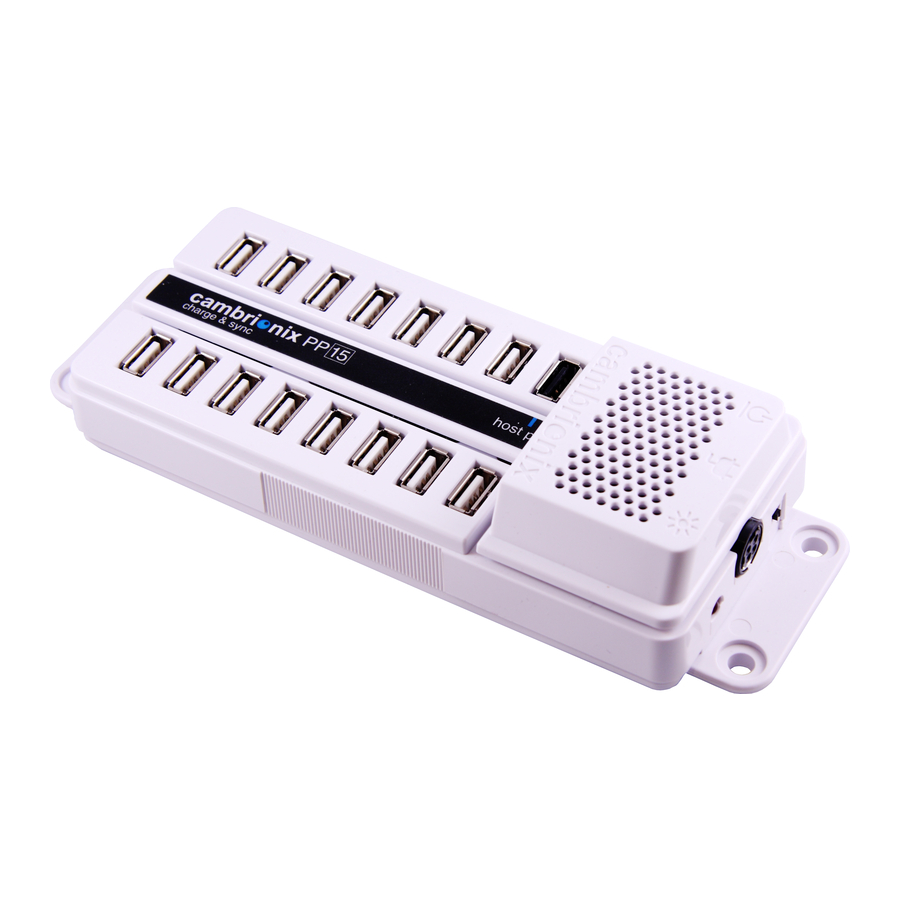

• Connect a suitably rated power cord between the PSU and receptacle (socket outlet). Please note, only use a Cambrionix recommended PSU. • Switch the PowerPad15s 'on' using the on/off switch as shown below, the red 'power LED' should illuminate. This LED may flicker or pulse depending on the level of activity within the PowerPad15s - this is entirely normal. - Page 5 • Connect your USB devices to the PowerPad15s using suitable USB cables. These are normally supplied by the USB device manufacturer. • How the PowerPad15s responds when a device is connected depends on whether or not a USB host is connected.
-
Page 6: Installation

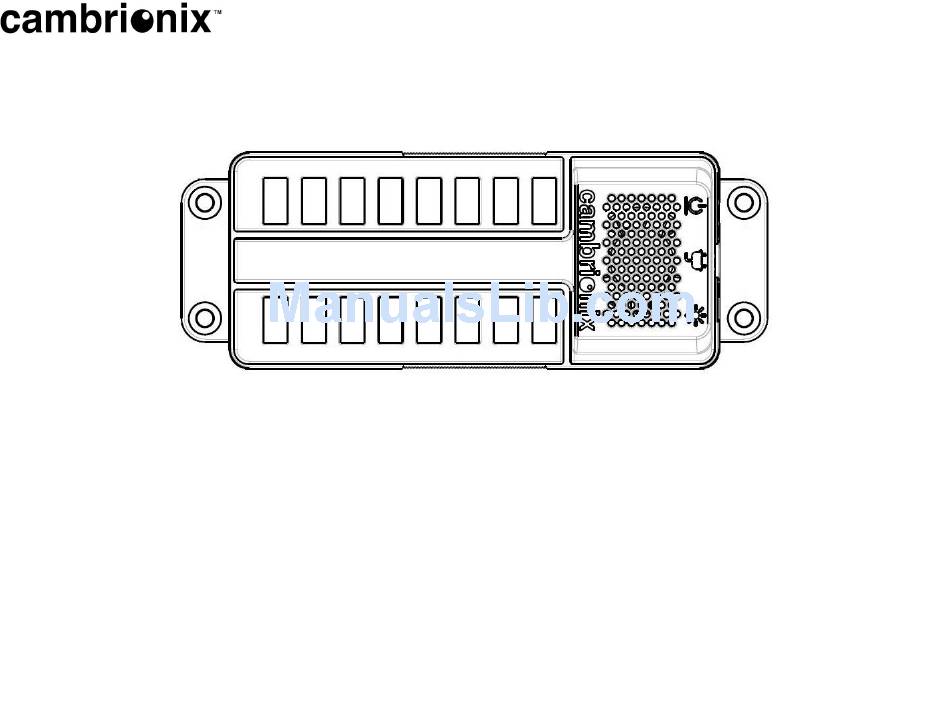

• To mount the PowerPad15s to a surface you will require four M5 screws (suitable for the material you are mounting the PowerPad15s to). You will also require a suitable tool for driving your chosen screws. - Page 7 2. Installation • The PowerPad15s dimensions and mounting hole locations are shown below.
-
Page 8: Port Control And Monitoring
In order to monitor and control the 15 charging ports a host computer connection is required. Connect the Host Port to a computer USB port using a USB A-A cable. PowerPad15s Host Port. - Page 9 • Open a terminal emulator (ZTerm, PuTTY etc) and connect to the PowerPad15s USB COM port with the following settings: 115,200 baud, 8N1, as shown. • Press the ENTER key on your computer to bring up the...
-
Page 10: Safety Messages
• The power cord should not be attached to a building surface, nor run through walls, ceilings, floors and similar openings in the building structure. • When installing the PowerPad15s measures must be taken to avoid physical damage to the power supply cord, including proper routing of the power supply cord and provision of a receptacle (socket outlet) near the PowerPad15s, or positioning the PowerPad15s near a receptacle (socket outlet). -
Page 11: Electrical Specifications
5. Electrical specifications of PSU. Parameter Specification Notes PSU input voltage 100-240 VAC 50-60Hz PSU input current 2.5A PSU output voltage 12 VDC PSU output current Input connector Output connector 4 pin DIN... - Page 12 5. Electrical specifications of PowerPad15. Parameter Specification Notes Model number PowerPad15s Manufactured by Cambrionix Ltd. Input voltage 12VDC Input current Port output voltage 5.2VDC Per port PSU output current 2.1A Per port Power in connector 4 pin DIN See product label for pinout.
-
Page 13: Warranty
6. Warranty • The PowerPad15s is provided with a 12 month RTB warranty from date of purchase. • Details of our standard warranty terms are available at www.cambrionix.com/terms-and- conditions... -
Page 14: Contact Details
7. Contact details • Address: Cambrionix Ltd, St Johns Innovation Centre, Cowley Road, Cambridge, CB4 0WS, • Email: support@app.cambrionix.com • Web: www.cambrionix.com... - Page 15 CE Standard This product complies with the relevant standards required for CE EN60950 compliance. UL Standard This product complies with the relevant safety standards to be C-UL-US Listed. Waste Electrical and Electronic Equipment Directive – WEEE (2002/96/EC) When this product is no longer required, if it cannot be re- used, we ask our customers not to dispose of it as unsorted municipal waste but to appropriately recycle the product.
- Page 16 Full FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
