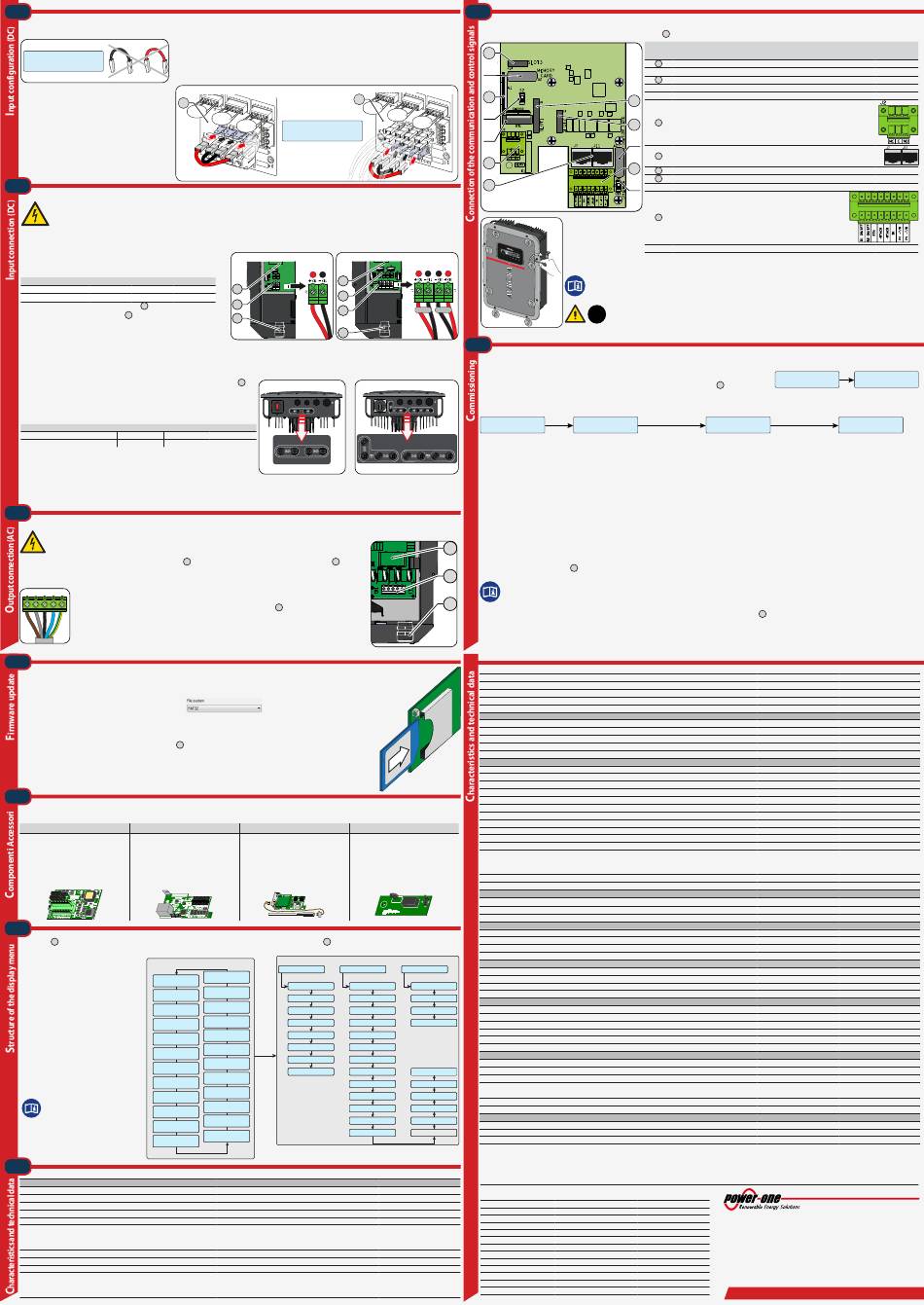

Power One Aurora Trio Quick Installation Manual page 2

10.
The 7.5 and 8.5 kW power inverter versions are equipped with two independent input channels (and therefore with double maximum power point tracker MPPT), which
can however be connected in parallel using a single MPPT..
Independent channel configuration (default configuration)
This configuration is factory-set and uses both input channels (MPPT) as independent. This requires the jumpers
Input Mode
(supplied) between the positive and negative poles of the two DC input channels not to be installed and the
INDEPENDENT
independent channel mode to be set in the relevant section of the SETTINGS menu.
Parallel channel configuration
07
This configuration uses the two input channels (MPPT)
connected in parallel. This requires the jumpers (supplied)
between the positive and negative poles of the two DC
input channels to be installed and the parallel channel
mode to be set in the relevant section of the SETTINGS
menu.
11.
Check for correct polarity in the input strings and absence of any leakage to ground in the PV generator.
When exposed to sunlight, the PV panels supply DC direct voltage to the inverter.
The inside of the inverter may only be accessed after the equipment has been disconnected from the grid and from the photovoltaic generator.
The inverter is only to be used with photovoltaic units with ground insulated input poles unless accessories allowing grounding of the inputs have been in-
stalled. In this case it is compulsory to install an isolation transformer on the AC side of the system.
• Connection of inputs on the Standard models
The input connections on inverter models that are not equipped with
a DC disconnect switch can be made in 2 different modes, based on the number
of available input channels.
TRIO-5.8 TRIO-7.5
No. of input channels 1 2
DC cable gland 2 x M25
For all inverter models the DC terminal block can be connected by feeding
23
the cables inside the DC cable glands . The cable gland accepts cables of
18
maximum diameter from 10 to 17 mm, while each terminal of the terminal block
accepts a cable with maximum cross-section of 16 mm (1.5 Nm tightening
2
torque).
Unscrew the cable gland, remove the cover, feed a cable of suitable cross-section and connect it to the terminals on the DC input terminal block.
Once the connection to the terminal block has been made, firmly screw the cable gland (7.5 Nm tightening torque) and check the tightness.
• Connection of inputs on models with disconnect switch
The string connections for inverter versions equipped with DC disconnect switch
quick fit connectors (multicontact or weidmuller), placed at the bottom of the mechanism.
The number of quick fit connectors changes based on the number of input channels.
Each input channel is normally equipped with two pairs of connectors for the connec-
tion of two strings.
TRIO-5.8 TRIO-7.5
No. of input channels 1
No. of quick fit connectors 4 (2 pairs) 4 + 4 (2 pairs per MPPT)
Connect all the strings included in the system design and always check the tightness
of the connectors.
If some of the string inputs are left unused, check that all relevant connectors are covered
with caps and install caps where needed. This is necessary to ensure the tightness of the inverter and to avoid damaging the unused connectors so that they can
be ready for later use.
12.
For the connection of the inverter to the grid, you can choose between a star connection (3 phases + neutral) and a delta connection (3 phases).
In any case, connection of the inverter to ground is mandatory.
To prevent electrocution hazards, all the connection operations must be carried out with the disconnect switch
downstream of the inverter (grid side) open and locked.
For all models, connection with the AC output terminal board
The maximum accepted cable cross-section ranges from 13 to 21 mm, whereas each individual terminal of the terminal board accepts
a cable with cross-section of up to 10 mm 2 (tightening torque 1.5Nm).
R S T N G
Unscrew the cable gland, remove the cover, insert the cable of suitable cross-section and connect the conductors
(Neutral, R, S, T and Ground) to the terminals on the AC output terminal board
Be careful not to change round one of the phases with neutral!
Once the connection to the terminal board is complete, screw in the cable gland firmly (tightening torque 8.0Nm)
and check the tightness.
15.
The firmware can be simply updated via the SD Card (4 GB maximum storage)
The most recent firmware version is available in the downloads section of the www.power-one.com Website or upon request to the Power-One Service.
Launch the update while in good irradiation conditions (avoid the dawn and dusk hours)
• Format the SD card using a "FAT32" File System
• Save the (.tib) update file on the SD Card. The file must not be compressed and/or nested inside folders.
• T urn the inverter off by physically disconnecting the AC and DC voltages, as well as any voltage connected to the multi-function relay,
then open the inverter front cover
• Insert the SD Card in the dedicated memory card housing
25
• Commission the inverter as per the procedure described in section 14 of this installation guide
• The inverter display prompts for confirmation to launch the update
The update procedure starts automatically. Do not operate the inverter in any way during the update process
• Once the procedure is completed, the display shows the update results
16.
The accessories can be bought separately and installed directly by a qualified technician or by the installer.
For information on the installation, compatibility and use of the accessories, refer to the relevant part documentation.
PMU EXPANSION BOARD ETHERNET EXPANSION BOARD
Added features: Added features:
• PMU - Management of active/reactive power • Ethernet connection for:
• 2 analogue and 1 PT100/ PT1000 inputs. - Local monitoring (internal webserver)
• Analogue sensor power supply (24 V) - Remote monitoring ("Aurora Vision/Easy
• RS485 (ModBus protocol) View" portal)
• RS485 (Aurora protocol)
LAB1
17.
The display has a section b10 (graphic display) for moving through the menu using the buttons of the LED panel
01
per line:
GENERAL INFORMATION
Viewing of the GENERAL INFORMATION is
cyclic. This information relates to the input
Inverter OK
Date Time
and output parameters and the inverter
Type OUTD
identification parameters.
P/N -XXXX-
By pressing ENTER it is possible to lock scrolling
SN XXXXXX
on a screen to be constantly displayed. Fw rel. XXXX
E-day XXX.XkWh
$-day XX.XEUR
Press ESC to access the three main menus,
E-tot XXXXXXkWh
which have the following functions:
E-par XXXXXXkWh
• STATISTICS>Displays the statistics;
Pout XXXXXW
• SETTINGS>Modify the settings of the inverter
COSp X.XXX
• INFO>View service messages for the operator;
Tipo regolazione
Tint XX.X°C
Tboost XX.X°C
Refer to the manual for details Ppk XXXXXW
PpkDay XXXXXW
regarding use and functions
VoutR
available in the menu.
Vout avg
VoutS
Vout avg
VoutT
Vout avg
18.
Table: Technical Data
Absolute Maximum DC Input Voltage (Vmax,abs)
Start-up DC Input Voltage (Vstart)
Operating DC Input Voltage Range (Vdcmin...Vdcmax)
Rated DC Input Power (Pdcr)
Number of Independent MPPT
Maximum DC Input Power for each MPPT (PMPPTmax)
MPPT Input DC Voltage Range (VMPPTmin ... VMPPTmax) at Pacr
DC Input Voltage Range with Parallel Configuration of MPPT at Pacr
DC Power Limitation with Parallel Configuration of MPPT
DC Power Limitation for each MPPT with Independent Configuration of MPPT at
Pacr , max unbalance example
Standard Version
07
07
Input Mode
PARALLEL
TRIO 5.8kW (1 MPPT)
+ −
TRIO-8.5 07
2 07
22
23
23
18
18
use
08
TRIO 5.8kW (1 MPPT)
I ON
I ON
TRIO-8.5
2
is made by inserting the cables in the AC cable gland .
31 15
1
.
31
with the notched side facing down.
PVI-RADIOMODULE NEGATIVE GROUNDING KIT
Added features: Added features:
• W ireless (radio) communication line for • Negative input grounding.
data transmission to the PVI-DESKTOP Installation of the board is compulsory
monitoring device. if PV panels are used that require the
connection to ground of the negative
pole.
C8
. Section b10 consists of 2 lines with 16 characters
02
Structure of the main menu
(cycle view)
STATISTICS SETTINGS
Vbulk XXXV
password 0000
Vbulk_m XXXV
Total Address
Riso X.XM©
Ileak XmA
Partial Display Set.
Pin2 XXXXXW
Today Service
Pin1 XXXXXW
Last 7 days New PW
Vin2 XXXV
Last month Cash
Iin2 XX.XA
Press
Vin1 XXXV
Last 30 days Time
ESC
Iin1 XX.XA
Last 365 days Language
IoutT XX.XA
FoutT XX.XXHz
User Period V Start
IoutS XX.XA
FoutS XX.XXHz
*1
Autotest
IoutR XX.XA
FoutR XX.XXHz
Alarm
VoutTR XXXV
Remote ON/OFF
XXXV
XXXV
VoutST XXXV
Sleep Mode
XXXV
XXXV
UV Prot. Time
VoutRS XXXV
XXXV
XXXV
*1 Available only for grid standard CEI-021
*2 Available only with PMU board installed
*3 Available only with Ethernet board installed
TRIO-5.8-TL-OUTD TRIO-7.5-TL-OUTD
Input Side
1000 V
350 V (adj. 200...500 V)
0.7 x Vstart...950 V
5950 Wp 7650 Wp
1 2
6050 W Linear Dera-
ting From MAX to Null 4800 W
[800V≤VMPPT≤950V]
320...800 V -
- 320...800 V
- Linear Derating From MAX to Null [800V≤VMPPT≤950V]
4800 W [320V≤VMPPT≤800V]
- the other channel: Pdcr-4800W
[215V≤VMPPT≤800V]
13.
The following table shows the main components and the connections available on the control and communication
communication card must go through the three service cable glands
24
a01
-S Version
25
07
a02
a03
26
30
8
6
1
TRIO 7.5/8.5kW (2 MPPT)
POWE
R ALARM DC AC DC AC
GFI
ESC
UP
DOWN
ENTER 4
+ − − +
3
2
MPPT1 MPPT2
5
7
14.
The inverter commissioning procedure is as follows:
• Close the AC disconnect switch to supply the inverter with the grid voltage
• Close the DC disconnect switch to supply the inverter with the photovoltaic generator voltage.
TRIO 7.5/8.5kW (2 MPPT) If the inverter is equipped with a DC disconnect switch (-S models), turn the DC disconnect switch
• When the inverter is connected to the power supply, the display will show a guided configuration procedure. Press ENTER to set the following:
On Field Setup
ENTER to START
Once the guided configuration is completed, the inverter restarts to apply the parameter settings
• When the inverter has power, the first check performed is the one relating to the input voltage:
- If the DC input voltage is lower than the Vstart voltage (voltage required to begin the inverter's grid connection) the b14 icon remains off and the "Waiting sun" message
MPPT1 MPPT2 is displayed b10.
MPPT1 MPPT2
- If the DC input voltage is higher than the Vstart voltage the b14 icon is displayed and the inverter goes to the next stage of the controls.
In both cases the voltage levels and input current are displayed in the b15 and b16 fields.
• The inverter performs a control of grid parameters. The b22 icon, which represents the grid distribution, can have different statuses:
- not present, if the mains voltage results as absent.
- flashing, if the mains voltage is present but outside the parameters dictated by the standard of the country of installation.
- turns on, if the mains voltage is present and within the parameters dictated by the standard of the country of installation. In this condition, the inverter starts the
sequence of grid connection.
If the input voltage and the grid voltage are within the inverter operating intervals, connection to the grid will commence. After the inverter is connected, the icons
05
on the whole line b21 will come on
Once the connection sequence has been completed, the inverter starts to operate and indicates its correct operation by making a sound and by the green LED co-
ming on steady on the LED panel
31
Check for updated Firmware versions on the www.power-one.com website
If an inverter Firmware update is required, follow the instructions later provided.
R S T N G
15
If the inverter signals any errors/warnings the messages and their codes will be indicated on the display
relay (set to alarm mode in the menu SETTINGS>Alarm) which activates any external signalling device that may be connected.
Maximum DC Input Current (Idcmax) / for each MPPT (IMPPTmax)
Type of photovoltaic panels that can be connected at input according to IEC 61730
Pb-free
INFORMATION
Part No.
Serial No.
Firmware
Country Select
Environmental pollution classification for external environment
*3
Ethernet Board Pot. Reattiva Scheda PMU
*2 PMU Board
Input mode
Power Reduction
MPPT
Reactive Power
1. The AC voltage range may vary depending on specific country grid standard
2. The Frequency range may vary depending on specific country grid standard
Remark. Features not specifically listed in the present data sheet are not included in the product
TRIO-8.5-TL-OUTD
Service- Contact Details:
Australia
Benelux
China
8700 W
Eastern Europe
2
France
Germany
4800 W
Greece
India
-
Italy
320...800 V
Middle East
Singapore
4800 W [320V≤VMPPT≤800V]
Spain
South east Asia
the other channel: Pdcr-4800W
UK
[290V≤VMPPT≤800V]
USA
.
16
Ref. Ref.
Description
manual inverter
J14 SLOT 3 - Connector for WIFI modules installation (NOT ACTIVE)
24
a01 A2
Inverter data memory card housing
A1
SD CARD housing
25
a02 S2 Switch to set the inverter to normal or service mode
a03 BT1 Battery housing
27
Terminal block connecting to the configurable relay that allows con-
nection of external devices which, according to the mode selected in
J2
the menu SETTINGS>Alarm can, for example, signal malfunctions. The
26
28
operating modes that can be set are:
-Production -Alarm
a04
1
J7 e J11 Connection of the RS485 (PC) line on RJ45 connector
30
29
J9 Connector for radiomodule or Ethernet board installation
27
J3 SLOT 2 - Connector for PMU board installation
28
a05 a04 A3 RS485 (PC) communication card housing
Terminal block for:
- PC RS485 serial connection (to connect local or remote
J4 monitoring systems)
29
- Remote ON/OFF connection
- Tachometer signal (WIND version) connection
a05 S2
Switch for setting the termination resistance of the RS485 (PC) line
Please refer to the manual for details of the connections and functions available on the control and communication board
Once the connection and the configuration of the inverter is completed, the front cover must be closed by tightening
IP65
the screws (2.4 Nm tightening torque) in the order shown.
-Inverter time and date - Parallel or independent mode
configuration of the input channels
ENTER
Time hh:mm Input Mode
Date DD MMM YYYY PARALLEL/INDEP
steady..
.
02
Table: Technical Data TRIO-5.8-TL-OUTD
18.9 A
Maximum Backfeed current (from AC to DC side)
Number of DC Inputs Pairs for each MPPT
DC Connection Type Tool Free PV Connector WM / MC4 (Screw Terminal Block on Standard Version)
Input Protection
Reverse Polarity protection
Input Over Voltage Protection for each MPPT - Varistor
Maximum Input Short Circuit Current for each MPPT 24.0 A
Photovoltaic Array Isolation Control
DC Switch Rating for each MPPT (Version with DC Switch) 13 A /1000 V
Output Side
AC Grid Connection Type
Rated AC Grid Voltage (Vac,r)
AC Voltage Range
Rated AC Power (Pacr @cosφ=1 ) 5800 W
Maximum Apparent Power (Smax) 5800 VA
Maximum AC Output Current (Iac,max) 10.0 A
Contributory fault current 12.0 A
Inrush Current
Maximum output fault current
Rated Output Frequency (fr)
Output Frequency Range (fmin...fmax)
>0.995, adj.±0.9
Nominal Power Factor and adjustable range withPacr=5.22kW,
adj. ± 0.8 with max 5.8kVA
Total Current Harmonic Distortion
AC Connection Type
Output Protection
Anti-Islanding Protection
Maximum AC Overcurrent Protection 10.5 A
Output Overvoltage Protection - Varistor
Operating Performance
Maximum Efficiency (ηmax)
Weighted Efficiency (EURO/CEC) 97.4% / -
Feed In Power Threshold 32 W
Stand-by Consumption
Communication
Wired Local Monitoring Ethernet card with webserver (opt.), PVI-USB-RS232_485 (opt.), PVI-DESKTOP (opt.)
Remote Monitoring
Wireless Local Monitoring
User Interface
Environmental
Ambient Temperature Range
Relative Humidity
Noise Emission
Maximum Operating Altitude without Derating
Environmental Category
Physical
Environmental Protection Rating
Cooling
Overvoltage Category in accordance with IEC 62109-1
Dimensions (H x W x D)
Weight 25.0 kg / 55.1 lb
Mounting System
Safety
Safety Class
Isolation Level
Marking
+61 2 9735 3111 service.au@power-one.com
+32 2 206 0338 service.bx@power-one.com
+8675529885888 service.cn@power-one.com
+49 7641 95520 32 service.ee@power-one.com
00 800 00 28 76 72 service.fr@power-one.com
0800 2200211 service.de@power-one.com
00 800 00 28 76 72 service.gr@power-one.com
+65 6896 3363 service.in@power-one.com
00 800 00 28 76 72 service.it@power-one.com
00 800 00 28 76 72
+65 6896 3363 service.sg@power-one.com
00 800 00 28 76 72 service.es@power-one.com
service.sg@power-one.com
0800 0232341 service.uk@power-one.com
+1 877-261-1374 service.us@power-one.com
board.. Each cable that must be connected to the
-Alarm (configurable) -Crepuscolar
Power-One Initializing...
............... Please Wait
to the ON position.
14
- Selection of grid standard and
corresponding display language
GRID=
Lang=
. This state will also cause switching of the multi-function
01
TRIO-7.5-TL-OUTD TRIO-8.5-TL-OUTD
30 A / 15 A 30 A / 15 A
Negligible
2 ((-S Version)
Classe A
Yes, from limited current source
2
20.0 A 20.0 A
According to local standard
23 A / 800 V
Three phase 3W or 4W+PE
400 V
320...480 V
(1)
7500 W 8500 W
7500 VA 8500 VA
12.5 A 14.5 A
14.5 A 16.5 A
Negligible
<20Arms(100mS)
50 Hz / 60 Hz
47...53 Hz / 57...63 Hz
(2)
>0.995, adj.±0.9 with >0.995,adj.±0.9 with
Pacr=6.75kW, Pacr=8.00kW,
adj. ± 0.8 with max 7.5kVA adj. ± 0.8 with max 8.5kVA
< 2%
Screw terminal block, maximum cross-section 10 mm
2
According to local standard
12.0 A 15.0 A
4 plus gas arrester
98.0%
97.5% / - 97.5% / -
36 W 36 W
< 15 W
Ethernet card (opt.), PVI-AEC-EVO (opt.), AURORA LOGGER (opt.)
PVI-DESKTOP (opt.) with PVI-RADIOMODULE (opt.)
Graphic display
-25...+60°C /-13...140°F con derating sopra i 50°C/122°F
0...100% condensing
< 45 db(A) @ 1 m
2000 m / 6560 ft
3
External
IP 65
Natural
II (DC input) III (AC output)
641mm x 429mm x 220mm / 25.2" x 16.9" x 8.7"
855mm x 429mm x 237mm / 33.7" x 16.9" x 9.3" with open front cover
28.0 kg / 61.7 lb 28.0 kg / 61.7 lb
Wall bracket
I
Transformerless (TL)
CE
Italy Facility Phoenix Facility Camarillo Facility
Via S. Giorgio, 642 3201 East Harbour Drive 740 Calle Plano
52028 Terranuova B.ni Phoenix, Arizona, 85034 Camarillo, California, 93012
Italy United States United States
+39 055 9195 1 480-643-1700 805-987-8741
http://www.power-one.com
1
