Summary of Contents for Vantron M05

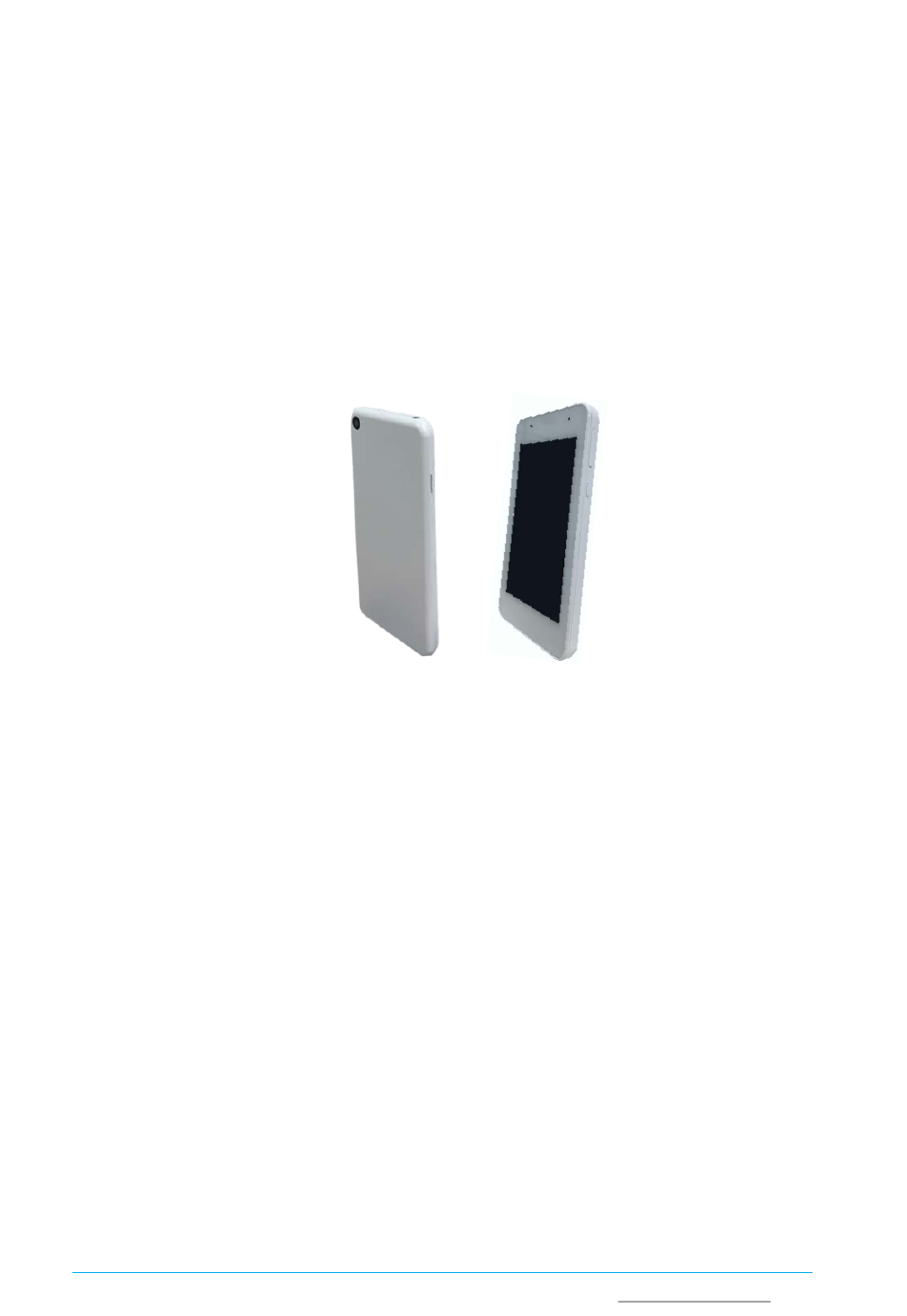

- Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions M05 Industrial Tablet User Manual Version: 1.1 © Vantron Technology, Inc. All rights reserved. M05 Industrial Tablet | User Manual www.vantrontech.com...
- Page 2 Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Revision History: Version Description Date V1.0 First release Aug. 10, 2022 V1.1 Modified description on system flashing Nov. 17, 2022 M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 3: Table Of Contents
Apps & Notifications ....................24 Battery Information ...................... 25 Set the Display......................26 Set the Audio Profile ....................27 Choose Your Language & Time Zone ................28 3.9.1 Add a language ......................28 M05 Industrial Tablet | User Manual www.vantrontech.com... - Page 4 Prerequisites ....................... 37 4.2.2 MediaTek Driver installation ..................37 4.2.3 Image flashing ......................39 CHAPTER 5 DISPOSAL AND WARRANTY ................. 41 Disposal ........................42 Warranty ........................43 Appendix Regulatory Compliance Statements ................44 M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 5: Foreword
World-leading provider of embedded/IoT products and solutions Foreword Thank you for purchasing Vantron M05 Industrial Tablet (“the Tablet” or “the Product”). This manual intends to provide guidance and assistance necessary on setting up, operating, or maintaining the Product. Please read this manual and make sure you understand the structure and functionality of the Product before putting it into use. - Page 6 US Office: Vantron Technology, Inc. Address: 48434 Milmont Drive, Fremont, CA 94538 Tel: (650) 422-3128 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology Co., Ltd. Address: 6th Floor, 1st Building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R. China 610045 Tel: 86-28-8512-3930/3931, 8515-7572/6320 Email: sales@vantrontech.com.cn...
- Page 7 The use or placement of the operation tools shall comply with the code of practice of such tools to avoid short circuit of the Product. Cut off the power before inspection of the Product to avoid human injury or product • damage. M05 Industrial Tablet | User Manual www.vantrontech.com...
- Page 8 Clean with a damp cloth • Do not try to clean exposed electronic components unless with a dust collector Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged • The temperature is excessively high •...
-
Page 9: Chapter 1 Introduction
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 10: Product Overview
World-leading provider of embedded/IoT products and solutions 1.1 Product Overview Vantron M05 high-performance Android tablet was developed for industrial applications. The Tablet runs on MediaTek multi-core processor with a 5-inch capacitive touchscreen to offer excellent human-machine interaction experience. It features flexible specification options, excellent cost performance, and outperforming power management system. -
Page 11: Specifications
151.6 x 81.4 x 11.5mm Mechanical IP rating IP4X Operating: 0℃~+45℃ Temperature Storage: -20℃~+60℃ Environment Operating: RH 20%-80% Humidity Condition Storage: RH 20%-80% FCC (Part 15 class B) Certification ESD (Contact: ±4KV, Air: ±8KV) M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 12: Product Layout
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 1.4 Product Layout Front View Rear View Top View Bottom View M05 Industrial Tablet | User Manual www.vantrontech.com... - Page 13 Touch screen 5" 3-point capacitive touch screen Rear camera 2MP fixed focus camera Audio jack Combo audio jack Microphone Voice input/audio recording Type-C USB Type-C Speaker Audio output SD card holder SD card holder M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 14: Chapter 2 Getting Started
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 GETTING STARTED M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 15: Setting Up The Tablet
1. Flip the Tablet over on a level surface with the camera side on the left and the type-C interface on the right; 2. Remove the back cover of the Tablet with a plastic spatula or card; 3. Insert the battery side with two contacts into the compartment first; M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 16: Installing And Removing A Micro Sd Card
3. Push the card in until it clicks into place; 4. Push the card again and it will eject from the slot. Only insert or replace the Micro SD card outside the potentially explosive atmosphere. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 17: Turning On/Off The Device
To turn on the device: 1. Press the power button and hold for about 3 seconds; 2. Release when the Vantron logo appears on the screen; 3. Wait about 10 seconds for the operating system to be launched. There are two ways to turn off the device depending on whether the screen is on. -
Page 18: Power Menu
There is a power indicator on the front panel for indication of the charging status and battery level of the Tablet. Indicator Description Low battery (less than 15%) Amber Battery charging in process Green Battery above 90% Adapter not plugged in & battery above 15% M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 19: Using The Tablet
Having dragged the icons upwardly to the right of the Home screen, users can swipe the screen left or right to view the icons. M05 Industrial Tablet | User Manual www.vantrontech.com... - Page 20 Return to the previous page Home Return to the home screen Recent Switch between recently opened apps Please refer to the following part of this manual for the detailed explanation of above items. M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 21: I/O Information
Wi-Fi/Bluetooth The wireless module inside the Tablet complies with IEEE 802.11 b/g/n standard and Bluetooth 4.0. The integrated module provides an SDIO interface for Wi-Fi, and a UART interface for Bluetooth. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 22: Chapter 3 System Settings
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 SYSTEM SETTINGS M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 23: Access System Settings
The tablet information is accessible from system settings. 1. Access system settings via any of the options described in 3.1; 2. Slide down to the bottom of the option list; 3. Tap About AIV and access the tablet details. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 24: Connect To The Internet
° type the SSID of the Wi-Fi network in the search box on the top right corner, or ° swipe down to the bottom of the list, and tap Add network to input the SSID and save; M05 Industrial Tablet | User Manual www.vantrontech.com... - Page 25 8. Tap the cog icon behind the SSID to access Wi-Fi settings where the network information is available, including signal strength, network addresses, etc. and users can FORGET the Wi-Fi network (ignore the password and disconnect from the network) or share with others. M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 26: Connect To Bluetooth Devices
You can change the Connection preference to Cast to project the Tablet screen to a wireless display device. When you need to print an item, set the Connection preference to Printing and connect the target printer, then you can send the item for the printing. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 27: Unpair A Bluetooth Device
3. After unpairing, you will need to pair the device again next time before data transfer. You can toggle on Internet access and contact sharing for the Bluetooth device to grant access to it. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 28: Apps & Notifications
Permission manager: Browse apps that have permission to use certain functions of ° the system; Advanced: View apps that have unlimited data use ° M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 29: Battery Information
Tap to display the battery percentage next to the battery icon Battery percentage on the status bar Last full charge When was the last time that the Tablet was fully charged Screen usage since full How long does the last charge last charge M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 30: Set The Display
Font/display size: Tap to adjust the font size/display size of the content on the screen Advanced Screen saver: Fill the screen with clock/ color/ photo frame/ photo table while the Tablet is charging/docked/either/never Lock screen display: Customize the notification/lock screen message M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 31: Set The Audio Profile
Turn on/off Do Not Disturb mode, customize calls, app use, Do Not Disturb notification, and mode schedule Tap to switch on screen locking sounds/charging sounds Advanced and vibration/touch sounds (OFF by default) M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 32: Choose Your Language & Time Zone
7. Tap your preferred language without release and drag it to the top of the list; 8. The system language will change to the one on the top of the list. Under Languages & input, you can also change the settings of the keyboard and other tools. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 33: Set The Date &Time
4. If you do not want to adjust the pointer for the time setting, tap the keyboard icon to the bottom left corner and input the hour and minute for the time setting; 5. Set the time format to the local default or use the 24-hour format. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 34: Backup And Reset
Access system settings via any of the options described in 3.1 and navigate to Security; Locate Screen lock under DEVICE SECURITY; Select Pattern/ PIN/ Password and draw the pattern/ input a code correspondingly; M05 Industrial Tablet | User Manual www.vantrontech.com... - Page 35 5. Choose how to display the notifications when the screen is locked; 6. The screen unlock will take effect right after the settings finish and you can swap from one type of screen unlock to another here. M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 36: Location Services
° Tap an icon like Wi-Fi or Bluetooth to quickly enable/disable the function ° Tap the pencil icon to edit the arrangement of the quick accesses ° Tap the cog icon to enter general settings M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 37: Chapter 4 App Management
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 APP MANAGEMENT M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 38: App Installation Via Adb Commands
Android and double click adb .exe to run the adb driver, or you can go through steps 2-4 instead of running the driver; 2. Press “Win + R” and input “sysdm.cpl” in the dialogue box to open the settings interface; M05 Industrial Tablet | User Manual www.vantrontech.com... - Page 39 4. Copy the path of adb .exe as mentioned in step 1, and click OK to confirm; 5. Press “Win + R” and input “cmd” in the dialogue box; 6. Input “adb version” in the command prompt window to check if the ADB tool is installed; M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 40: App Installation
8. The newly installed app will be displayed on the App drawer in the Alphabetic order. In step 6 shown above, you can drag the .apk file from the local directory to the command line to replace the <App path> you typed in manually. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 41: Image Flashing
World-leading provider of embedded/IoT products and solutions 4.2 Image Flashing Whenever a new image is available, Vantron will provide a release package consisting of all the tools/files necessary so that you can flash the image in Windows system. 4.2.1 Prerequisites °... - Page 42 5. Remove all USB devices from the PC as prompted; 6. A pop-up will appear in a few seconds suggesting you restart the computer and the driver is installed on your PC; 7. Restart the host PC. M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 43: Image Flashing
7. Uncheck pre-loader option unless the Tablet is in dead condition; 8. Click the Download button on the flash tool window; M05 Industrial Tablet | User Manual www.vantrontech.com... - Page 44 10. Once the host PC detects the Tablet, the flashing process will start automatically; 11. When the Download Ok message pops up, close the flash tool, and disconnect the Tablet from the PC; 12. Press the power button to reboot the Tablet and the upgrade finishes. M05 Industrial Tablet | User Manual www.vantrontech.com...
-
Page 45: Chapter 5 Disposal And Warranty
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 5 DISPOSAL AND WARRANTY M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 46: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. M05 Industrial Tablet | User Manual www.vantrontech.com... -
Page 47: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON. -
Page 48: Appendix Regulatory Compliance Statements
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate this equipment. M05 Industrial Tablet | User Manual www.vantrontech.com... - Page 49 ° Never place your device or the adapter on furniture or any other surface that might be marred by exposure to heat since the base of your device and the surface of the adaptor may increase in temperature during normal use. M05 Industrial Tablet | User Manual www.vantrontech.com...
