- Page 1 VT-TABLET-5071-TM-FP VT-TABLET-5071-TM-FP User’s Manual Chengdu Vantron Technology, Ltd. All Rights Reserved...
-
Page 2: Table Of Contents
VT-TABLET-5071-TM-FP Contents CONTENTS ................................... 2 REVISION HISTORY .............................. 2 1 FOREWORD ................................. 3 1.1 C ................................ 3 OPYRIGHT OTICE 1.2 N .................................... 3 OTES 1.3 S .................................. 4 TATEMENT 1.4 D .................................. 4 ... - Page 3 VT-TABLET-5071-TM-FP 1/ 17...
-
Page 4: Revision History
VT-TABLET-5071-TM-FP Revision History Version Description Date V1.0 First release 2017/05/08 V1.1 Change description 2017/06/27 V1.2 ADD WPC 2017/06/28 2/ 17... -
Page 5: Foreword
Vantron reserves all rights of this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior notice. -
Page 6: Statement
1.5 Limitation of Liability/Non-warranty For direct or indirect damage to this device or other devices of Vantron caused by failure of conforming to this manual or the safety instructions on device label, Vantron assumes neither warranty nor legal liability even if the device is still under warranty. -
Page 7: Precautions
VT-TABLET-5071-TM-FP 1.7 Precautions Pay attention to the product labels/safety instructions printed on silk screens. Do not try repairing this product unless declared in this manual. Keep away from heat source, such as heater, heat dissipater, or engine casing. Do not insert other items into the slot (if any) of this device. -
Page 8: Safety Instructions For Power Cables And Accessories
Proper power source only Start only with power source that satisfies voltage label and the voltage necessary according to this manual. Please contact technical support personnel of Vantron for any uncertainty about the requirements of necessary power source. Use tested power source... -
Page 9: Overview
VT-TABLET-5071-TM-FP 2 Overview 2.1 Introduction Thank you for choosing Vantron. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. Tablet enables the interaction between operators/users and applications, connects industrial control products such as wireless, transducer, battery inside, storage, etc. -
Page 10: Ordering Information

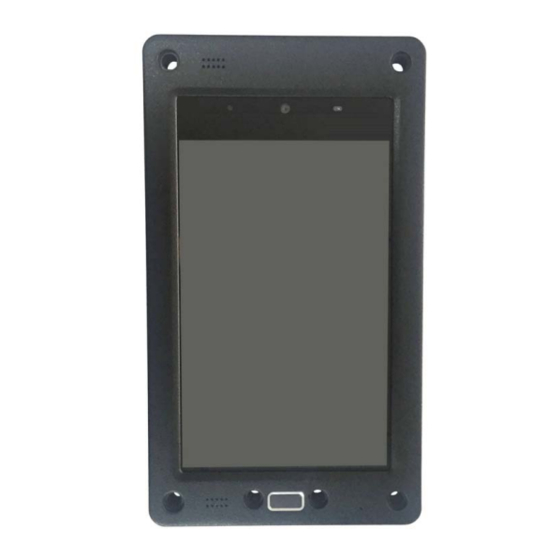

VT-TABLET-5071-TM-FP 2.2 Ordering Information Quad 7” TFT LCD, 1920x1200 16:10 Wide Screen, RK-3288, core VT-TABLET-5071-TM-FP 1.8GHz, USB2.0 OTG, 6200mAh battery inside, WIFI/BT4.0/GPS. 8/ 17... - Page 11 VT-TABL LET-5071- -TM-FP 3 3 VT-T TABL LET-50 071-TM M-FP Hardw ware Instru uctions 3.1 Pro oduct Ap ppearan ront View ack View 9/ 17...
-
Page 12: Specifications
VT-TABLET-5071-TM-FP 3.2 Specifications Processor RK-3288 , ARM Cortex-A17, Quad Core CPU,1.6GHz Memory 2GB DDR3 Flash 32GB EMMC Flash Display 7" TFT LCD Resolution 1920x1200 24bit Color Contrast 1000:1 Brightness 450 cd/m2(Auto brightness by Light sensor) View Angle 85U/85D, 85L/85R Touch Screen... -
Page 13: Interface Instructions
VT-TABLET-5071-TM-FP 3.3 Interface Instructions Front View 3.3.1 Side View 3.3.2 3.4 Dimension Whole device Size: 226x127x18mm 3.5 Buttons Power/Sleep/Wake button When you are not using Tablet, you can lock it to turn off the display and 11/ 17... -
Page 14: Led
VT-TABLET-5071-TM-FP save the battery. Lock tablet: Press the Power/Sleep/Wake button. Unlock tablet: Press the Power/Sleep/Wake button, then drag the slider. Turn tablet off: Press and hold the Power/Sleep/Wake button greater than 6 seconds. Turn tablet on: Press and hold the Power/Sleep/Wake button until logo appears. -
Page 15: Mm Headphone Jack With External Mic In
VT-TABLET-5071-TM-FP 3.5mm Headphone Jack with external MIC in 3.7.3 It is a standard 4-pole 3.5mm Headphone Jack with external MIC in , every pole signal is defined as below. WPC 3.7.4 The tablet with a standard WPC1.1 passivity receiving terminal. We can charge the table with WPC ant. -
Page 16: Software Instructions
VT-TABLET-5071-TM-FP 4 Software Instructions 4.1 Brief Introduction VT-TABLET-5071-TM-FP has been pre-loaded with Android OS, and the system can run program tools to update the system OS, please refer to its software user manual. 14/ 17... -
Page 17: Tips
Caution signs in this manual remind of possible danger. Please comply with relevant safety tips below each sign. Meanwhile, you should strictly conform to all safety tips for operation environment. Notice Considering that reasonable efforts have been made to assure accuracy of this manual, Vantron assumes no 15/ 17... - Page 18 Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
- Page 19 US Office: Vantron Technology, Inc. Address: 1292 Kifer Road #807, Sunnyvale, CA 94086 Tel: 510-304-7666 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology, Ltd. Address: No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 Tel: 86-28-8512-3930/3931, 8515-7572/6320 Email: sales@vantrontech.com.cn 17/ 17...
