- Page 1 M10 Pro and M10 Lite User Manual M10 PRO AND M10 LITE Hardware User Manual Product Version: 1.0 Date: 2021-1-7 For any question, please contact Chengdu Vantron Technology, Ltd. Copyright © Vantron Technology, Ltd. All rights reserved.
- Page 2 Change History This table describes the version and release date. Rev. Date Description Author 2021-1-7 First release. Shun Zhang...
- Page 3 Vantron reserves all rights of this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior written notice.
- Page 4 Limitation of Liability/Non-warranty For direct or indirect damage to this device or other devices of Vantron caused by failure of conforming to this manual or the safety instructions on device label, Vantron assumes neither warranty nor legal liability even if the device is still under warranty.
- Page 5 Use Proper power source only. Start only with power source that satisfies voltage label and the voltage necessary according to this manual. Please contact technical support personnel of Vantron for any uncertainty about the requirements of necessary power source. Use tested power source. This product still contains a button lithium battery as a real-time clock after its external power source is removed and therefore should not be short-circuited during transportation or placed under high temperature.
-
Page 6: Table Of Contents
Contents INTRODUCTION ..............................1 ..............................1 RODUCT ESCRIPTION ............................1 ONNECTOR ESCRIPTION OVERVIEW ................................3 ................................3 NTRODUCTION ..................................3 EATURE ..............................4 RDER NFORMATION HARDWARE INSTRUCTIONS ......................... 5 ................................. 5 PPEARANCE .............................. 5 NTERFACE ESCRIPTION ..................................6 TRUCTURE HARDWARE FUNCTION DESCRIPTION ...................... 7 EG95-NAX 4G M ............................ - Page 7 6.1.1 Appearance ..............................12 6.1.2 Interfaces ............................... 12 6.1.3 Structure................................. 12 6.1.4 Hardware Instructions ..........................13 SOFTWARE INSTRUCTIONS ......................... 14 TIPS ..................................15 APPENDIX A: HOW TO CONTACT US ......................... 19...
-
Page 8: Introduction
So it is easy to be used by adding your application software only. It can speed Time to Market of your products, and save more cost. Connector Description This table respectively describes the valid signal of connectors on the Vantron board. Not connect Ground... - Page 9 3.3V 3.3 V signal level 5 V signal level 5 V tolerant signal PCIe PCI Express signal, not 3.3 V tolerant No Connection...
-
Page 10: Overview

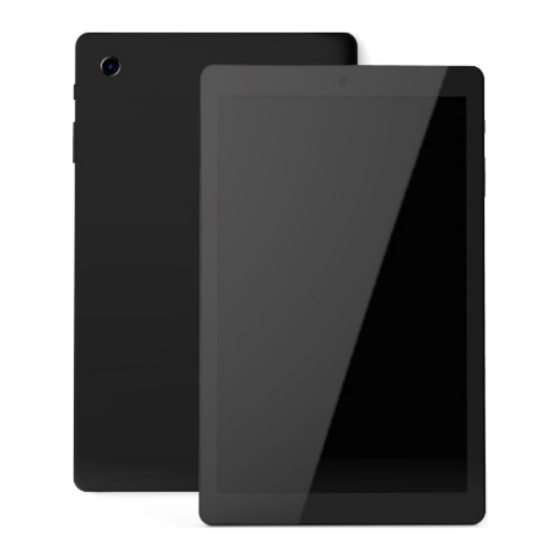

Overview Introduction M10 PRO AND M10 LITE is a tablet computer designed for entertainment application. This product is based on RK3366 which has Quad-cores and one of them is Cortex-A55 with a maximum clock frequency of 1.8GHz, supporting 10.1" LCD and capacity touch screen. -
Page 11: Order Information
-xx2: 9V/2A fast charge M10 Pro -1: NFC not -x1: Light/proximity -xx1: 5V/2A standard charge supported sensor not supported M10 Lite-221: 2GB DDR and Wi-Fi ac/a/b/g/n & BT5.0, 4000mAH battery Example M10 Pro -112: No NFC, no light/proximity sensor, but 9V/2A fast change... -
Page 12: Hardware Instructions
Hardware Instructions Appearance Figure 3-1 Views Interface Description Rear camera Front camera SD slot Power button Speaker Audio jack Volume button Touch USB Type-C screen... -
Page 13: Structure
Light sensor Audio jack SD slot Power button SIM slot Volume Touch screen button Front Camera USB Type-A USB Type-C Speaker Structure Download the board structure document from Vantron technology or Vantron net site: www.vantrontech.com.cn Figure 3-4 Structure Unit: mm... -
Page 14: Hardware Function Description
Hardware Function Description This chapter mainly describes the main hardware functions of this product, including 4G, WIFI/BT, audio, display, camera,and,NFC. EG95-NAX 4G Module EG95-NAX provides data connectivity on LTE-FDD networks. Its frequency bands include LTE-FDD (B2/B4/B5/B12/B13/B25/B26). It has two antennas: main antenna and Rx-diversity antenna. -
Page 15: Audio
Display M10 PRO AND M10 LITE has a 10.1" screen. The screen is made up of a display screen and a touch screen, which are fitted together by full-fit technology. More parameters are shown in the table. -
Page 16: Nfc
M10 PRO AND M10 LITE has a NFC feature, which is an optional feature. If the customer needs it, we can provide it.It Support 40mm away identify for tag1,42mm for tag 2 and 22mm for tag 4. -
Page 17: Hardware Operation Note
Do not use unauthorized or incompatible power adaptors to charge the device, otherwise fire, explosion or other danger may be caused. Antenna The design of the internal antenna position of M10 PRO AND M10 LITE will be shown as follows:... - Page 18 Figure 5-1 Internal antenna 4G RX-diversity Ant 4G Main Ant WIFI&BT Ant In order to ensure that the tablet functions can work properly, please do not cover the antenna area with metal shielding devices. Note: Frequency bands of 4G module include LTE-FDD (B2/B4/B5/B12/B13/B25/B26).
-
Page 19: Parts Description
Parts Description USB Power Adapter 6.1.1 Appearance Figure 6-1 View 6.1.2 Interfaces Figure 6-2 Interfaces US 2 pins plug USB TYPE-A 6.1.3 Structure Figure 6-3 Structure (1) Unit: mm... -
Page 20: Hardware Instructions
Figure 6-4 Structure (2) Unit: mm 6.1.4 Hardware Instructions Specifications Product Name AC/DC ADAPTER MODEL No. MX15U-0503000UU Interface Type USB Type-A ( Female ) Input Parameter 100-240V ~ 50-60 Hz 0.5A Output Parameter 5 VDC 3A Product Dimensions 40 x 24 x 55 mm (Pins are not included ) Operating Temperature 0℃-40℃... -
Page 21: Software Instructions
Software Instructions M10 PRO AND M10 LITE has been pre-loaded firmware. For more information, please refer to software user manual for software operation. -
Page 22: Tips
In the aim of avoiding accidents as far as possible, it is not allowed to replace the system or change components unless with permission and certification. Please contact the technical department of Vantron or local branches for help. Pay attention to caution signs. - Page 23 Vantron assumes no responsibility of possible missing contents and information, errors in contents, citations, examples, and source programs. Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
- Page 24 by independent scientific organizations through evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. The SAR limit of USA (FCC) is 1.6W/Kg averaged. Has also been tested against this SAR limit.
- Page 25 d’exposition au rayonnement du CNR-102 de l’IC établies pour un environnement non contrôlé. Les lignes directrices sont fondées sur des normes qui ont été élaborées par des organisations scientifiques indépendantes au moyen d’une évaluation périodique et approfondie des études scientifiques. Les normes comprennent une marge de sécurité substantielle conç...
-
Page 26: Appendix A: How To Contact Us
Address: 440 Boulder Court, Suite 300, Pleasanton, CA 94566, USA Tel: 925-621-8758 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology, Ltd Address: 6th Floor, 1st Building, No.9, 3rd Wu Ke East Street, Wu Hou District, Chengdu 610045, China Tel: 86-28-8512-3930/3931, 8515-7572/6320 Email:...
