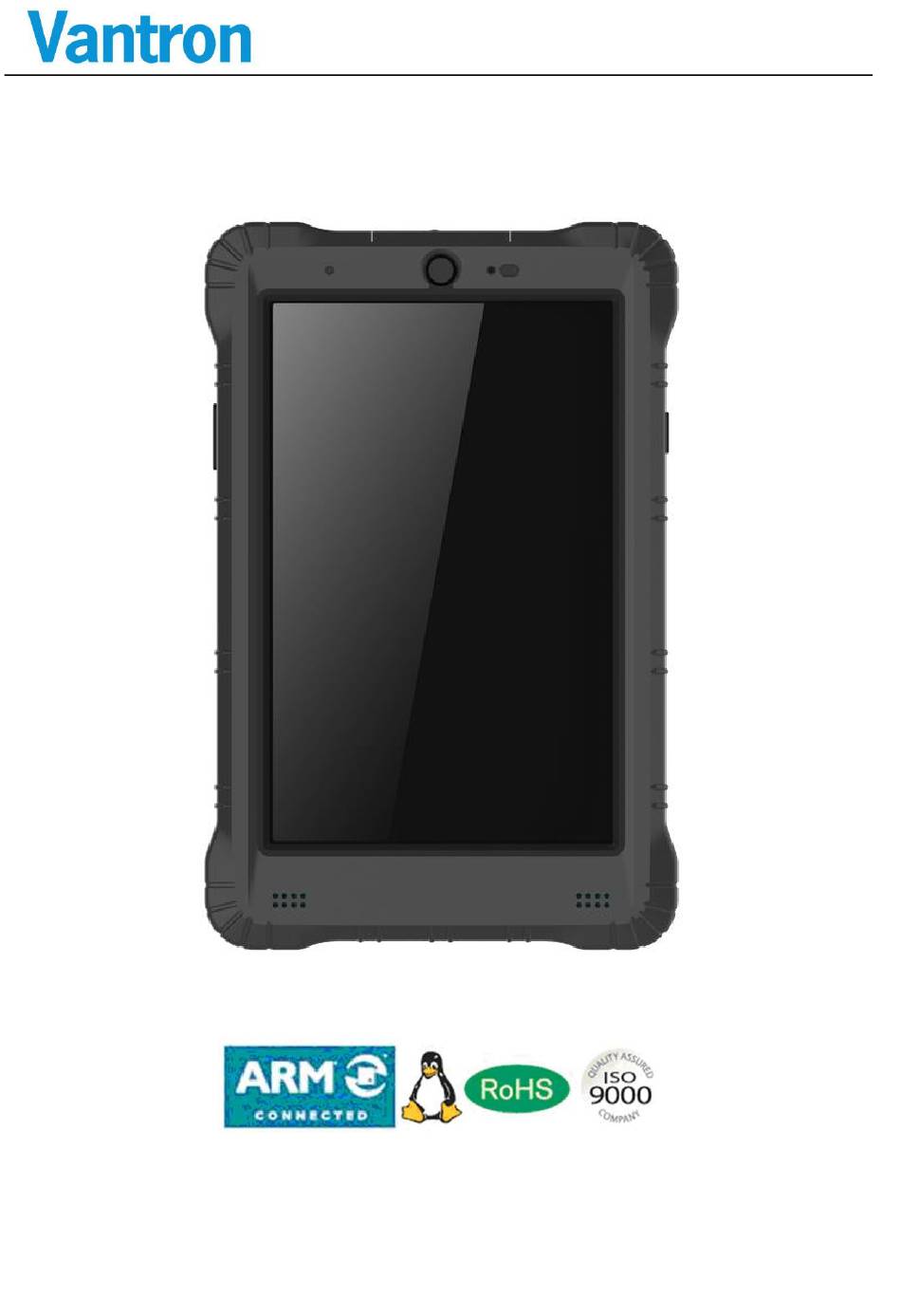

- Page 1 VT-TABLET-5081-N VT-TABLET-5081-N User’s Manual Chengdu Vantron Technology, Ltd. All Rights Reserved...
-
Page 2: Table Of Contents
1.8 S ..................... 7 AFETY NSTRUCTIONS FOR OWER ABLES AND CCESSORIES OVERVIEW ................................8 2.1 I ................................... 8 NTRODUCTION VT-TABLET-5081-N HARDWARE INSTRUCTIONS ....................... 9 3.1 P ................................ 9 RODUCT PPEARANCE 3.2 S ................................. 10 PECIFICATIONS 3.3 I ..............................11 NTERFACE NSTRUCTIONS 3.4 D... -
Page 3: Revision History
VT-TABLET-5081-N Revision History Version Description Date V1.0 First release 2018/07/05 V1.1 Change description 2018/07/27 V1.2 Revise 2018/10/25 V1.3 Revise for FCC certification 2018/12/26 3/ 17... -
Page 4: Foreword
Vantron reserves all rights of this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior notice. -
Page 5: Statement
1.5 Limitation of Liability/Non-warranty For direct or indirect damage to this device or other devices of Vantron caused by failure of conforming to this manual or the safety instructions on device label, Vantron assumes neither warranty nor legal liability even if the device is still under warranty. -
Page 6: Precautions
VT-TABLET-5081-N 1.7 Precautions Pay attention to the product labels/safety instructions printed on silk screens. Do not try repairing this product unless declared in this manual. Keep away from heat source, such as heater, heat dissipater, or engine casing. Do not insert other items into the slot (if any) of this device. -
Page 7: Safety Instructions For Power Cables And Accessories
Proper power source only Start only with power source that satisfies voltage label and the voltage necessary according to this manual. Please contact technical support personnel of Vantron for any uncertainty about the requirements of necessary power source. Use tested power source... -
Page 8: Overview
VT-TABLET-5081-N 2 Overview 2.1 Introduction Thank you for choosing Vantron. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. Tablet enables the interaction between operators/users and applications, connects industrial control products such as wireless, transducer, battery inside, storage, etc. -
Page 9: Vt-Tablet-5081-N Hardware Instructions

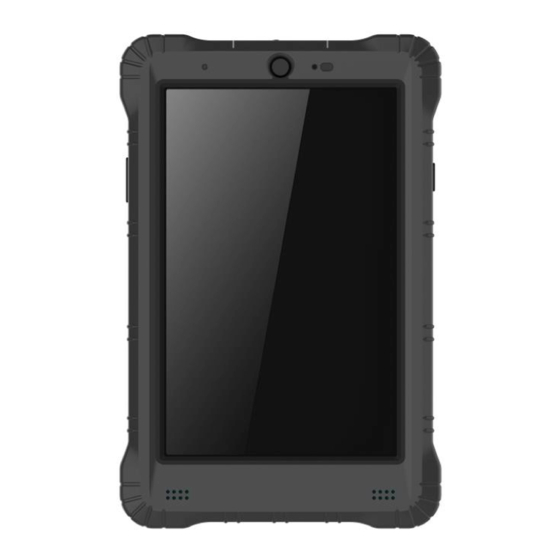

VT-TABLET-5081-N 3 VT-TABLET-5081-N Hardware Instructions 3.1 Product Appearance Front View 9/ 17... -
Page 10: Specifications
VT-TABLET-5081-N 3.2 Specifications Processor RK3288, ARM Coretex-A17, Quad-Core CPU, up to 1.4GHz 2GB LPDDR3(Optional 4GB) Memory Flash 16GB EMMC Flash 8" TFT LCD Resolution 1280x800, 16:10, 24bit Color Contrast 900:1 Display Brightness 250 cd/m2(Auto brightness by Light sensor) View Angle... -
Page 11: Interface Instructions
VT-TABLET-5081-N 3.3 Interface Instructions Light & Proximity Sensor Camera Volume Power Button Speaker L Speaker R 11/ 17... -
Page 12: Dimension
VT-TABLET-5081-N 3.4 Dimension Whole device Size: 235× 153 × 21mm 3.5 Buttons Power/Sleep/Wake button When you are not using Tablet, you can lock it to turn off the display and save the battery. Lock tablet: Press the Power/Sleep/Wake button. Unlock tablet: Press the Power/Sleep/Wake button, then drag the slider. -
Page 13: Interface Description
VT-TABLET-5081-N 3.7 Interface Description Internal MIC in Interface 3.7.1 This hole is used to the onboard MIC in. USB OTG (USB type C) 3.7.2 It is a USB2.0 OTG port (USB type C), you can connect to PC as USB client to manage the android device and connect a USB device using USB OTG to HOST adapter cable. -
Page 14: Software Instructions
VT-TABLET-5081-N 4 Software Instructions 4.1 Brief Introduction VT-TABLET-5081-N has been pre-loaded with Android image, so that the system can run MFG tools to update the system image, please reference to SW-UM. 14/ 17... -
Page 15: Tips
In the aim of avoiding accidents as far as possible, it is not allowed to replace the system or change components unless with permission and certification. Please contact the technical department of Vantron or local branches for help. Pay attention to caution signs. - Page 16 Vantron assumes no responsibility of possible missing contents and information, errors in contents, citations, examples, and source programs. Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
- Page 17 —Reorient or relocate the receiving antenna. —Consult the dealer or an experienced radio/TV technician for help. Any modification to the product is not permitted unless authorized by Vantron. It’s not allowed to disassemble the product, it is not allowed to replace the system or change components unless with permission and certification.
