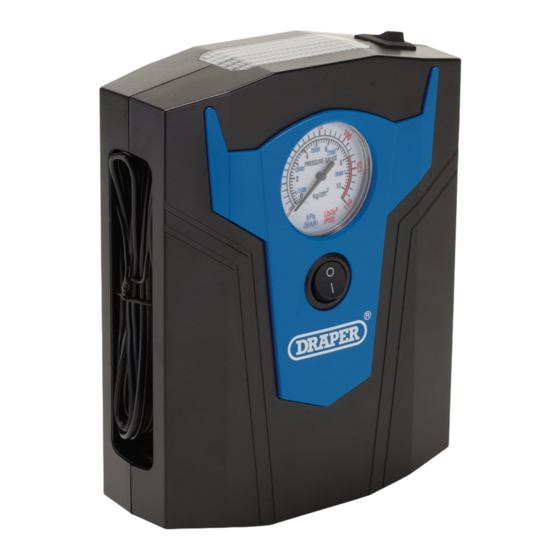

12v analogue tyre inflator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

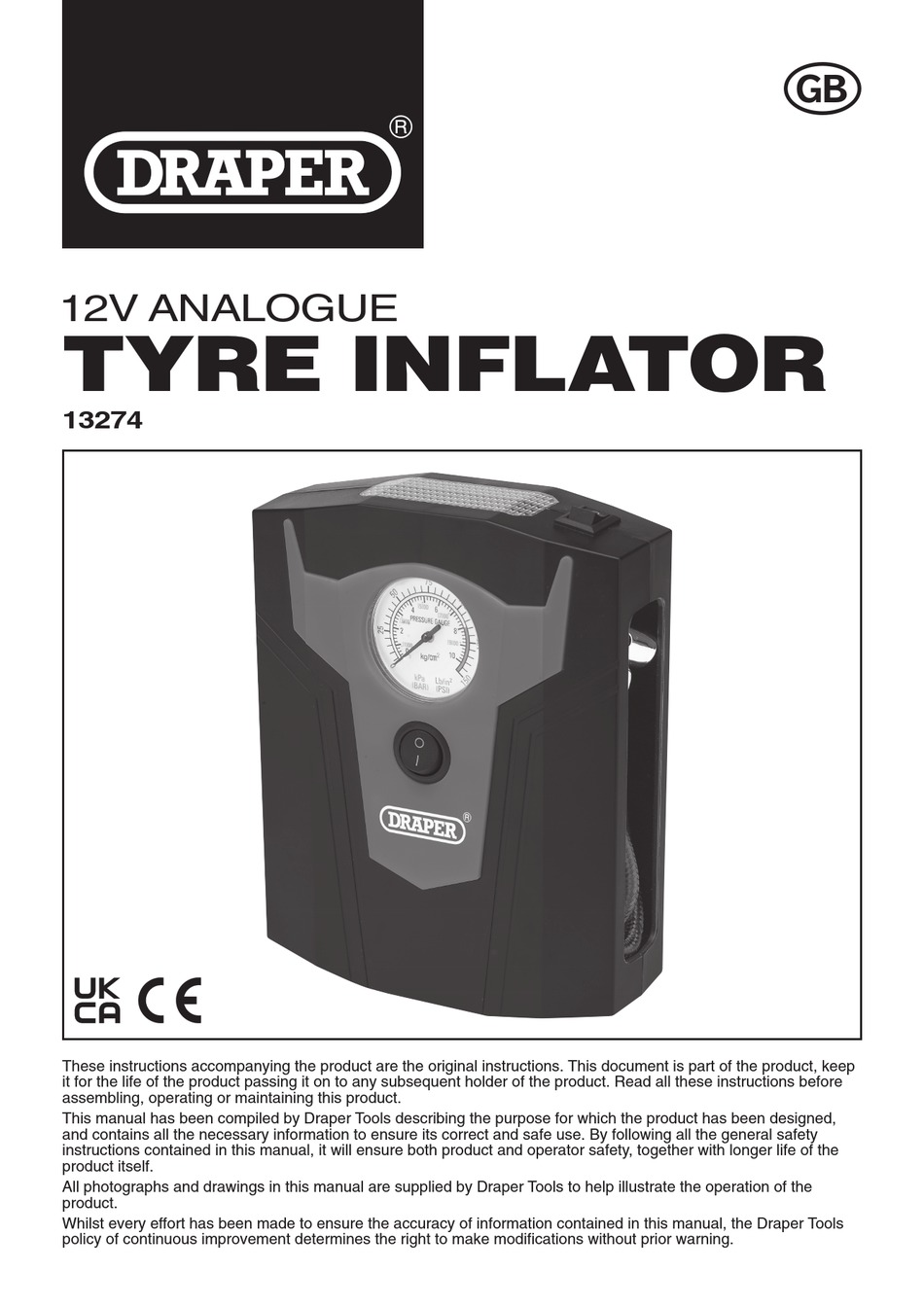

12V ANALOGUE
TYRE INFLATOR
13274
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13274 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper 13274

Summary of Contents for Draper 13274

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................

  • Page 4: Warranty 3.1 Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    12V power cord with ‘cigarette’ type adaptor plug. This product is suitable for enthusiasts and tradespersons alike. Any application other than that it was intended for is considered misuse. SPECIFICATION Stock No..........................13274 Part No............................ATI1 Rated voltage ..........................12V Rated power ..........................100W Fuse rating ............................

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 7: General Safety Instructions For Inflators

    Warning! Please read the following instructions carefully failure to do so could lead to serious personal injury. Important: Draper Tools recommends that this inflator should not be modified or used for any application other than that for which it was designed. If you are unsure of it’s relative applications do not hesitate to contact us in writing and we will advise you.

  • Page 8: Additional Safety Instructions For 12V Air Inflator

    HEALTH AND SAFETY INFORMATION Check damaged parts. Before further use of this inflator, parts that are damaged should be carefully checked to ensure that it will operate correctly and perform its intended function. Check for alignment of moving parts, breakage of parts and any other conditions that may effect its operation.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (1) Inflation ON/OFF switch. (2) Pressure gauge. (3) Air line with thumb lock connector. (4) 12V power cable with accessory/cigarette type plug. (5) LED worklight. (6) LED worklight ON/OFF switch. – 9 –...

  • Page 10: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Operation

    OPERATION BEFORE USING THE INFLATOR Warning! Always check that the vehicle is in neutral and the handbrake is applied before attempting to use this product. Important! Whilst it is necessary for the vehicle’s ignition to be set to the “I”/ON position, it is also recommended that the engine should also be running, so that full power is supplied to the inflator and discharging of the vehicle’s battery is avoided.

  • Page 12: Using The Adaptors For Inflatables

    OPERATION USING THE ADAPTORS FOR INFLATABLES – FIG.5 Select the suitable adaptor from those supplied (7) and secure into the air line connector (3). − Insert the adaptor into the item to be inflated. − Follow the procedure outlined in chapter 8.2 (page 11) to inflate the item.

  • Page 13: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly.

  • Page 14: Disposal

    10. DISPOSAL 10.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 15: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS WEEE – Waste Electrical & Electronic Equipment. Read the instruction manual. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. Wear face mask and safety UK Conformity Assessed. glasses.
  • Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
