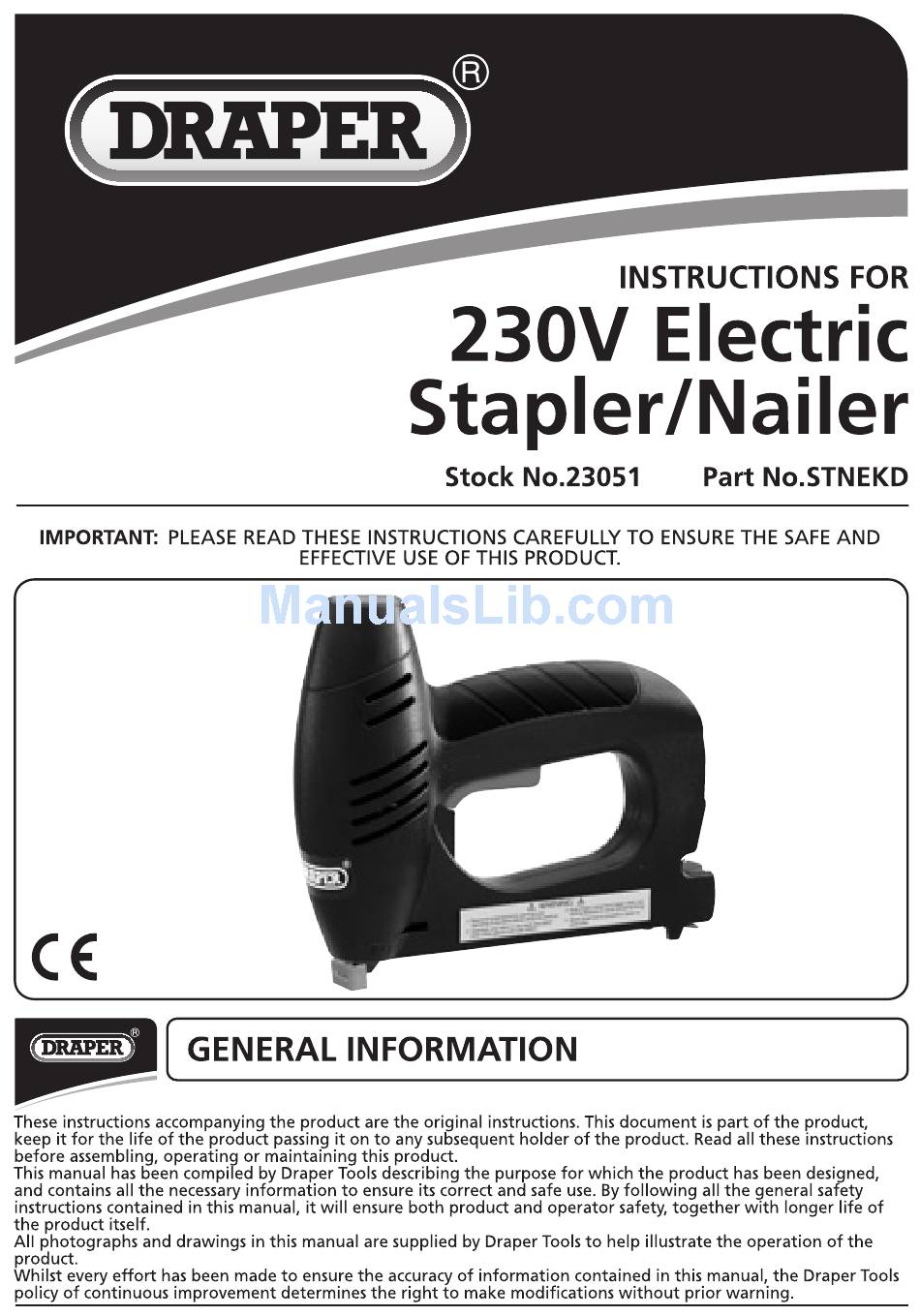

Draper 230V Instructions For
Electric stapler/nailer
Hide thumbs
Also See for 230V:
- Instructions manual (16 pages) ,
- Instructions for (24 pages) ,
- Instructions for (16 pages)
Related Manuals for Draper 230V
Summary of Contents for Draper 230V
-
Page 7: Health And Safety Information
230V AC. d. Store idle power tools out of the reach Because it is constructed mostly of metal of children and do not allow persons parts, it is a Class 1 machine;... -
Page 9: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Moulded plug & cable Chamber Trigger Magazine lock Safety mechanism On/off rocker switch Magazine... -
Page 10: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline 02380 494344. The packaging material should be retained at least during the guarantee period: in case the machine needs to be returned for repair. - Page 11 SETTING THE STAPLER/NAILER NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. 8.1 LOADING STAPLES AND NAILS - FIGS. 1 - 3 At the rear of the magazine is the magazine lock . To release it, press the lever down and pull. FIG.1 The magazine will accept 6mm staples up to FIG.2...
- Page 12 BASIC STAPLER/NAILER OPERATIONS 9.1 ON/OFF SWITCH - FIG. 4 To help prevent accidental firing the appliance features an on/off rocker switch Position the rocker switch to off when not in use. FIG.4 9.2 FIRING THE STAPLER/NAILER - FIG. 5 FIG.5 Push the appliance firmly down on to the surface to activate the safety mechanism Pull trigger...
