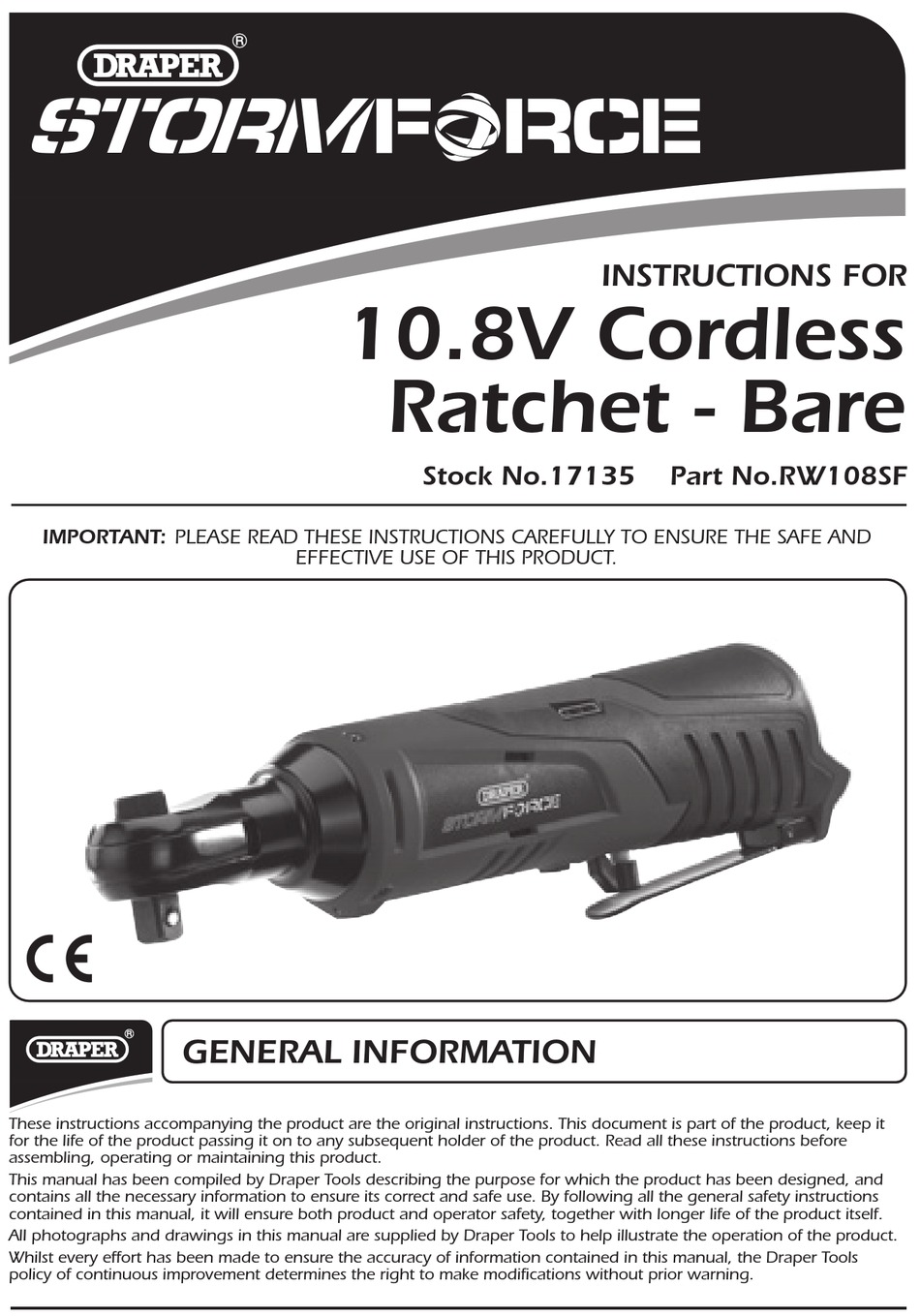

STORM
INSTRUCTIONS FOR

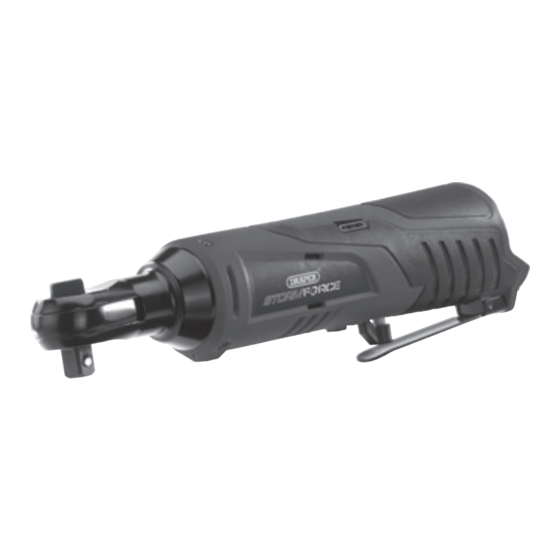

10.8V Cordless
Ratchet - Bare
Stock No.17135
Part No.RW108SF
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Related Manuals for Draper STORMFORCE RW108SF
Summary of Contents for Draper STORMFORCE RW108SF
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
This cordless ratchet is designed for removal and installation of threaded fasteners. It is intended for domestic and light commercial use only. Any other application is considered misuse. This product requires a Draper Power Interchange 10.8V battery (sold separately) to operate. -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS Do not overreach. Keep proper footing and balance at all times. This enables better control of General Power Tools Safety Warnings the power tool in unexpected situations. Dress properly. Do not wear loose clothing or WARNING: Read all instructions. -
Page 7: General Instructions For Battery Powered Tools & Chargers
HEALTH & SAFETY INFORMATION 5.2 GENERAL INSTRUCTIONS FOR Check that cutting tools are undamaged and are kept clean and sharp, this will maintain their operating BATTERY POWERED TOOLS & performance and lessen the loading on the tool. CHARGERS 5.3 SAFETY INSTRUCTIONS FOR MAINS POWERED BATTERY Good Working Practices/Safety The following suggestions will enable you to observe... -
Page 8: Instructions For Chargers And Batteries
5.5 ADDITIONAL SAFETY INSTRUCTIONS FOR RATCHET TOOLS Important: Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you. -
Page 9: Connection To The Power Supply
NOTE: This information relates to the battery charging system for the Draper 10.8V cordless range. This product is supplied “bare” which means that it does not have a battery or charger supplied. -
Page 10: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Reverse/forward selector Trigger lock switch Battery charge indicator LED work light Trigger switch ⁄ " Anvil... -
Page 11: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the ratchet. -
Page 12: Basic Cordless Ratchet Operation
BASIC CORDLESS RATCHET OPERATION 8.1 FORWARD/REVERSE SELECTION – FIG. 1 FIG.1 Note: Ratchets are not torque wrenches and are not designed or capable of installing fasteners to a specified torque. For fasteners requiring a specific torque, use a hand torque wrench. –... -
Page 13: Maintenance
MAINTENANCE 9.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. After use disconnect the tool from the power supply and vacuum the ventilation slots. -
Page 14: Troubleshooting
10. TROUBLESHOOTING 10.1 TROUBLESHOOTING GUIDE Problems Possible cause Required action • • • Motor turns. Spindle Worn teeth on ratchet Replace worn parts. doesn’t run or runs or pawl. erratically. • Weak or broken pawl pressure spring. • Weak drag springs fail to hold spindle while pawl advances for another bite. -
Page 15: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Class II construction (Double insulated). WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish For indoor use only. Do not expose to rain. Li-ion battery must be recycled or disposed of properly. Li-ion Fuse protective device. -
Page 16: Disposal
13. DISPOSAL 13.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Help Line for details of an agent in your local area. YOUR DRAPER STOCKIST RDCH0816...
