2000W 230V
HEAT GUN
15225
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper HG2000D
Summary of Contents for Draper HG2000D
- Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Disposal Title Page 1.1 Introduction
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
12. DISPOSAL CONTENTS 12.1 DISPOSAL TITLE PAGE 1.1 INTRODUCTION......................2 – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is 1.2 REVISION HISTORY ....................2 disposed of according to national regulations. 1.3 UNDERSTANDING THIS MANUAL ................ -
Page 4: Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 5: Scope
Remember the nozzle will remain hot for sometime - a safe storage location should be 10.1 OPTIONAL ACCESSORIES used. Store in a dry location out of the reach of children. A full range of accessories are available from Draper Tools. Please visit our website for details: www.drapertools.com - 13 - - 5 -... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully. -
Page 7: Additional Safety Instructions For Heat Guns
BASIC HEAT GUN OPERATIONS HEALTH AND SAFETY INFORMATION 8.1 SAFETY SWITCH – FIG.1 Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply The ON/OFF switch (2) has four positions/settings. -
Page 8: Connection To The Power Supply
HEALTH AND SAFETY INFORMATION 5.4 CONNECTION TO THE POWER SUPPLY Caution: Risk of electric shock. Do not open. This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked. -
Page 9: Technical Description

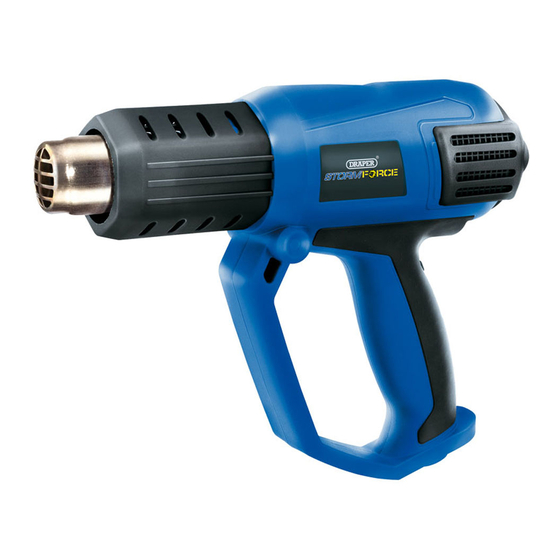

TECHNICAL DESCRIPTION 6.1 IDENTIFICATION (1) Plug & cable. (4) Support foot. (2) Switch On & Off (3 settings). (5) Air intake vents. (3) Metal nozzle. - 9 -... -
Page 10: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 11: Basic Heat Gun Operations
BASIC HEAT GUN OPERATIONS 8.1 SAFETY SWITCH – FIG.1 The ON/OFF switch (2) has four positions/settings. Position 0 is off. Position 1 is “cool heat” which is a steady 50°C heat (approx.) at 500 L/min. Position 2 is heat approximately 450°C (approx.) at 250 L/min. -
Page 12: Paint Removal From Window Frames
BASIC HEAT GUN OPERATIONS 8.3 PAINT REMOVAL FROM WINDOW FRAMES – FIG.3 IMPORTANT: Do not direct the heat gun at the glass during use as it may crack. Always use the glass protection nozzle (9). Do not touch the glass with the hot nozzle. -
Page 13: Maintenance And Troubleshooting
1. Replace fuse. Motor does not start. 2. Unknown. 2. Return to service centre. 10. OPTIONAL ACCESSORIES 10.1 OPTIONAL ACCESSORIES A full range of accessories are available from Draper Tools. Please visit our website for details: www.drapertools.com - 13 -... -
Page 14: Explanation Of Symbols
11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Single value noise marking. Read the instruction manual. (Maximum declared A-Weighted sound power level in decibels). Wear face mask and safety Class II construction glasses. (Double insulated). WEEE – Wear ear defenders. Waste Electrical &... -
Page 15: Disposal
12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: ●... - Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
