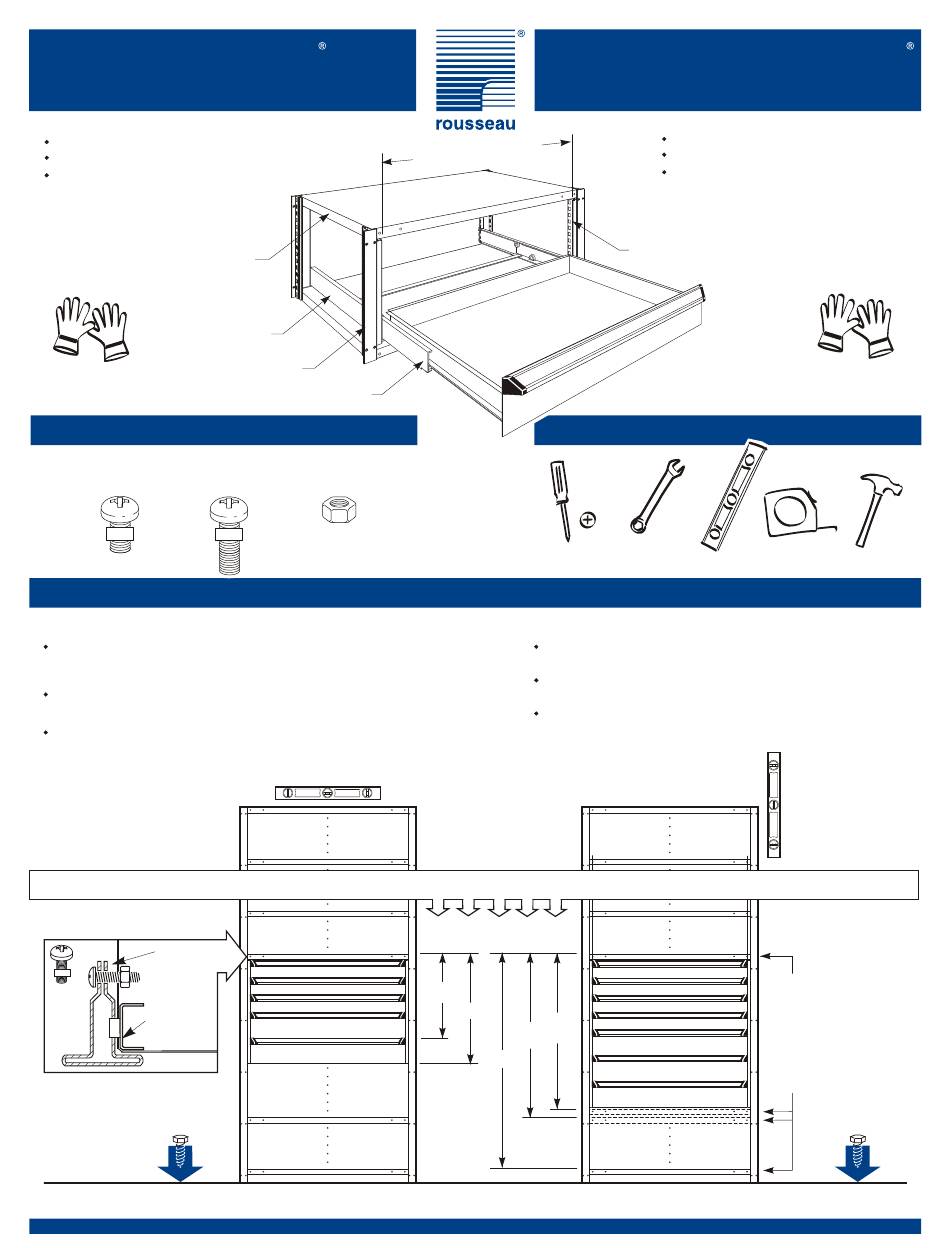

Rousseau OT Assembly Manual

Modular drawers for spider shelving

Advertisement

Quick Links

Modular Drawers for Spider shelving
OT Line
First check the contents.
Read instructions carefully.
Save this document for future
reference.
Safety first !
Always wear safety gloves.
Hardware
1/4-20 bolts
1/4-20 bolts
Boulons 1/4-20
Boulons 1/4-20
3A1824L2
3A1818L2
5/8"
Set up
Prepare your shelving unit to receive the drawers.
The minimum space required for drawers depends on
the height of the mounting brackets. See diagram
below.
The shelf directly above the drawers must be bolted
for more security. Do not overtighten.
A shelf must be placed under 34", 36" or 48" mounting
brackets. This shelf should be bolted.
Mounting brackets
Bolted shelf
Tablette boulonnée
3/16" gap
Espace
1"
de 3/16"
Shelf clip
Crochet
Do not overtighten.
Ne pas trop serrer.
To the floor
or to the wall
Contact Custom Products & Services, Inc.
Assembly Guide
Shelf
Tablette
Rail
Rail
Post
Poteau
Carriage
Chariot
Quincaillerie
1/4-20 nuts
Écrous 1/4-20
3S1801Z2
1"
Tiroirs modulaires pour étagère Spider
Guide d'assemblage
"
4 4 /1 6
9
3 2 1 5 /1 6 " o r
Drawer
Tiroir
Tools Required
Phillips #3
Préparez votre étagère pour recevoir les tiroirs.
L'espace minimum requis pour les tiroirs dépend de la
hauteur des profilés de montage. Voir ci-dessous.
La tablette au-dessus des tiroirs doit être boulonnée pour
plus de sécurité. Ne pas trop serrer.
Une tablette doit être placée sous les profilés de 34",
36" ou 48". Si possible, cette tablette doit être
boulonnée.
18"
24"
48"
36"
34"
20"
26"
38" 36"
50"
PH: 888-444-1202 or 651-452-0113 Email: sales@custom-products.com
Page 1/2
Ligne OT
Commencez par vérifier le contenu.
Lisez attentivement les instructions.
Conservez ces instructions pour
référence future.
Mounting bracket
Profilé de montage
Attention !
Portez des gants de travail.
Outils requis
7/16"
Préparation
Profilés de montage
Bolted shelf
Tablette boulonnée
Shelf under drawer bank
Tablette sous les tiroirs
Au plancher
ou au mur
7D000803
