Dinolift 160XT II Quick Manual

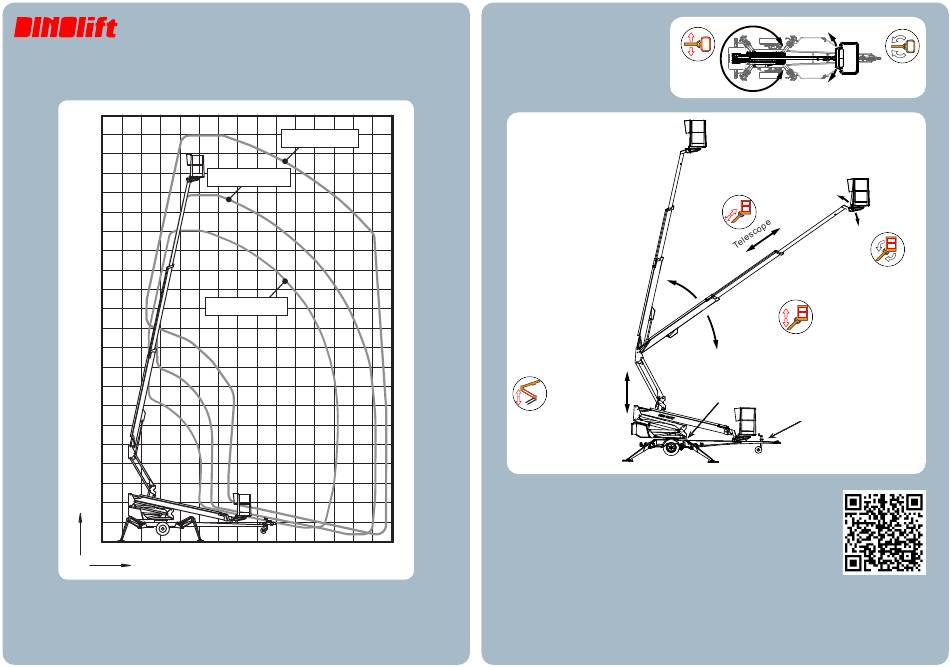

QUICK GUIDE
160XT II - 180XT II - 210XT II
160XTB II - 180XTB II - 210XTB II
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
2 1 0 1 2
m

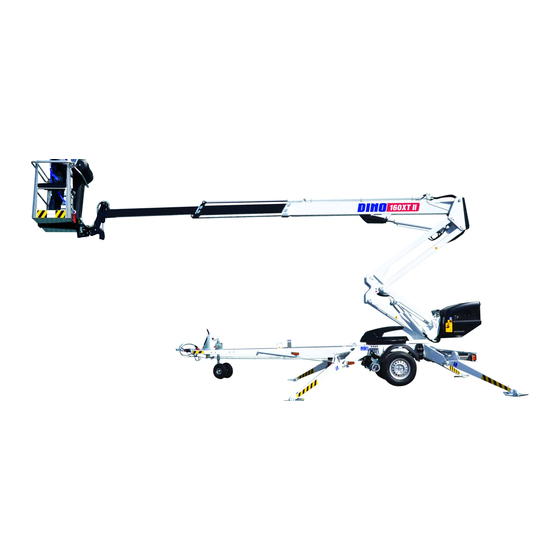

160XT II
Weight 1990 kg
Transport height 2,30 m
Transport width 1,80 m
Support width 3,9 / 4,2 m
Lifting capacity 215 kg
NOTICE! This quick guide is a brief summary of the
use of DINO access platform and does not replace the
operating instructions for the device.
Read the operating instructions and make sure that
you understand all of the instructions and warnings
before using the device.
210XT II (80kg)
180XT II (120kg)
160XT II (215kg)
3 4 5 6 7 8 9 10 11
Notice! Outreach depends on the platform load.
160XTB II 180XT II 180XTB II 210XT II
2175 kg 2300 kg 2390 kg 2465 kg 2590 kg
2,30 m
1,95 m
3,9 / 4,3 m 3,9 / 4,3 m
215 kg

LIFT FUNCTIONS

Boom rotation
Basket rotation:
Articulated arms
raising / lowering

DAILY INSPECTIONS

• Check the condition of the work platform, boom and chassis structures
• Check the air pressure in the tyres and signs of damage
• Check the operation and condition of the lights
12
• Check hydraulic oil level and the condition of hydraulic hoses, pipes and
fittings
• Check the safety limits function
210XTB II
• Check the emergency descent, emergency stop and sound signal
• Check that all adhesive tapes and plates are in place, intact and legible
2,33 m
1,95 m
• Check that the lift includes operating instructions and that they are
legible.
215 kg
Boom
rotation
continuous
180° Right
Boom lifting /
lowering
Driving device
Left
Basket
rotation
Basket
levelling
Hand brake
SCAN CODE AND
SEE
QUICK START
-VIDEO
(180XT II)
