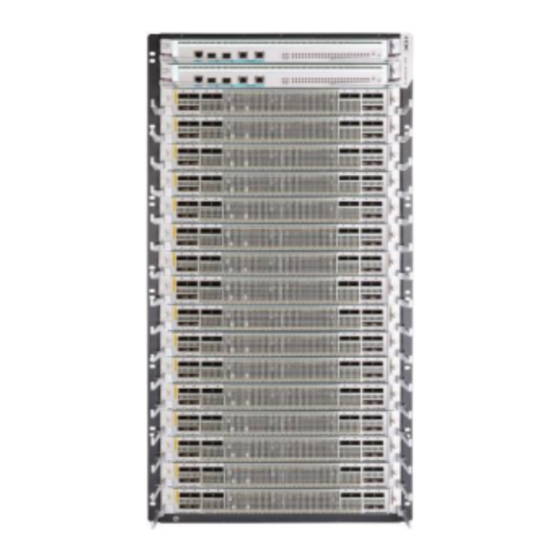

H3C CR19000-16 Core Router
Installation Guide
New H3C Technologies Co., Ltd.
http://www.h3c.com
Document version: 6W102-20211022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR19000-16 and is the answer not in the manual?

Questions and answers

Related Manuals for H3C CR19000-16

Summary of Contents for H3C CR19000-16

  • Page 1 H3C CR19000-16 Core Router Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W102-20211022...
  • Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
  • Page 3 Preface This document describes the installation procedure for the CR19000-16 core router. It includes preparing for installation, installing the router, troubleshooting, and replacement procedures. This preface includes the following topics about the documentation: • Audience. • Conventions. • Documentation feedback.
  • Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
  • Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
  • Page 6 Contents 1 Preparing for installation ·········································································· 1-1 Safety recommendations ································································································································ 1-1 General safety recommendations ··········································································································· 1-1 Electricity safety ······································································································································ 1-1 Moving safety ·········································································································································· 1-1 ESD prevention ······································································································································· 1-2 Laser safety ············································································································································· 1-3 Examining the installation site ························································································································· 1-3 Weight support ········································································································································ 1-3 Space ······················································································································································...
  • Page 7 Preparing for installation Safety recommendations To avoid bodily injury and damage to the router, read all safety recommendations including the compliance and safety manual for the router carefully before installation. Note that the recommendations do not cover every possible hazardous condition. General safety recommendations •...
  • Page 8 • Moving the chassis requires a minimum of four people. As a best practice, use a mechanical lift to move the chassis. • Lift and put down the chassis slowly and never move it suddenly. • Pay attention to the safety symbols on the package and handle the router accordingly. (The symbols in Table1-1 are for illustration only.
  • Page 9 For the generic operating environment requirements, see Generic Operating Environment Requirements for H3C Devices Installed Indoors. Weight support Make sure the floor or ground at the installation site can support the combined weight of the router and the rack.
  • Page 10 × 600 × 1200 mm (86.61 × 23.62 × • Depth—979 mm (38.54 in) 47.24 in) Chassis—857 mm (33.74 in)  • CR19000-16 A minimum of 105 mm (4.13 in) Cable management  between the front rack posts and the bracket—92 mm (3.62 in) front door.
  • Page 11 Figure1-3 Rack dimensions Cooling The router uses super-short cut-through ventilation aisles to provide front-to-rear airflows. Plan and build the ventilation system at the installation site carefully to ensure adequate cooling for the device. Make sure the following requirements are met: •...
  • Page 12 Figure1-4 Airflow through the chassis Temperature and humidity CAUTION: If condensation occurs on the chassis when you move it from a lower temperature to a higher temperature, dry the chassis before powering it on to avoid short circuits. Adverse temperature and humidity conditions in the equipment room will accelerate the aging of devices and reduce the capability of the device to withstand harsh environment conditions.
  • Page 13 (64.4°F to 77°F) and the relative humidity less than 60% RH for the cold aisle and the air inlet area of the rack. Cleanliness Mechanically active substances buildup on the chassis might result in electrostatic adsorption, which causes poor contact of metal components and contact points. In the worst case, electrostatic adsorption can cause communication failure.
  • Page 14 • Enough batteries are available to ensure uninterrupted device operation in the event of a power failure. Unpacking and inspecting the router Physical specifications Table1-5 Physical specifications Model Shipping weight CR19000-16 119.3 kg (263.01 lb) NOTE:...
  • Page 15 The shipping weight of the router includes the chassis and packaging material. You can determine a moving method for the chassis based on its shipping weight. Unpacking the router WARNING! To avoid bodily injury, wear protective gloves when unpacking the router. CAUTION: •...
  • Page 16 Figure1-5 Cutting the strap on the carton Lift the top cap from the carton, take out the accessory box, and remove the packaging materials such as the packaging carton and foam cushion. Verify that the accessory box package is intact. Check the accessories against the packing list. 1-10...
  • Page 17 Figure1-6 Removing the top cap from the carton Use a Phillips screwdriver and an adjustable wrench to remove the screws on the L-type brackets so that you can separate the router from the pallet. 1-11...
  • Page 18 Figure1-7 Separating the router form the pallet Verify that the router is intact without any signs of water soaking or corrosion and the labels on the chassis are correct, clear, and complete. Installation tools Installation tools are required when installing the router. Prepare installation tools as required. Figure1-8 provides installation tools for your reference.
  • Page 19 Figure1-8 Installation tools Pre-installation checklist Table1-6 Pre-installation checklist Item Requirements Result • The router is far away from any moist areas and heat sources. Safety precautions • The power-off switch in the equipment room is located. • The floor or ground at the installation site can support the combined weight of the router and the rack.
  • Page 20 interference from the power grid. • The working earthing of the router is away from the grounding facility of power equipment or lightning protection grounding facility. • The router is far away from radio transmitting stations, radar stations, and high-frequency devices.
  • Page 21 Contents 2 Installing the router ·················································································· 2-1 Confirming installation preparations ················································································································ 2-1 Installation flowchart········································································································································ 2-2 Rack-mounting the router································································································································ 2-3 Attaching slide rails to the rack ··············································································································· 2-3 Mounting the router in a rack ·················································································································· 2-3 Grounding the router ······································································································································· 2-5 Installing DC power supplies ···························································································································...
  • Page 22 Installing the router Confirming installation preparations Before you install the router, verify that: • You have read "Preparing for installation" carefully. • All the requirements described in "Preparing for installation" are met.
  • Page 23 Installation flowchart Figure2-1 Installation flowchart Start Inspect the router Read safety recommendations Prepare for installation Examine the installation site Prepare installation tools Rack-mount the router Ground the router DC power supplies Install power supplies AC power supplies MPUs Install removable Fabric modules components Interface modules...
  • Page 24 LSXM1BSR 1 RU (24.80 in to 35.43 in) For information about installing slide rails, see H3C LSXM1BSR 1U Bottom-Support Rails Installation Guide (available also at https://www.h3c.com/en/Support/Resource_Center/EN/Routers/Catalog/CR19000/CR19000/). When installing slide rails, make sure the load-bearing plane of the slide rails is perpendicular to the four rack posts.
  • Page 25 Figure2-2 Marking the cage nut installation holes Insert cage nuts into the marked square holes in the front rack posts. Cage nuts are not required for the two upper marked installation holes on the right front rack post. Figure2-3 Installing the cage nuts Place the router on the slide rails from the front of the rack.
  • Page 26 Figure2-4 Mounting the router in a rack Grounding the router CAUTION: Make sure the ground point on the rack is connected reliably to a grounding strip in the equipment room. To connect the grounding cable to the router: Remove the grounding screws from the grounding point on the chassis. Use the grounding screws to attach the two-hole grounding lug of the grounding cable to grounding point on the chassis.
  • Page 27 Figure2-5 Grounding the router...
  • Page 28 Installing DC power supplies Available DC power supplies The PSR2400-54D DC power supply is available for the router. Table2-2 describes the PSR2400-54D DC power supply specifications. Table2-2 PSR2400-54D DC power supply specifications Item Specification Rated input voltage –48 to –60 VDC Input voltage range –40 to –72 VDC Max input current...
  • Page 29 Figure2-6 Removing a filler panel Correctly orient the power supply. Align the power supply with the power supply slot. Then slide the power supply along the guide rails into the slot until the latch locks the power supply in place.
  • Page 30 Figure2-7 Installing a DC power supply Connecting a DC power cord CAUTION: • Make sure each power cord has a separate circuit breaker. • Before you connect a power cord, turn off the circuit breaker for it. To connect a DC power cord: Route the power cord along the cable ladder.
  • Page 31 Affix cable labels to the power cord 20 mm (0.79 in) to each end of the power cord. Figure2-8 Connecting a DC power cord 2-10...
  • Page 32 Installing AC power supplies Available AC power supplies The PSR2400-54A and PSR3000-54A AC power supplies are available for the router. Table2-3 describes the AC power supply specifications. Table2-3 AC power supply specifications Item PSR2400-54A PSR3000-54A • • AC power input: AC power input: 100 to 130 VAC @ 60 Hz 100 to 130 VAC @ 60 Hz...
  • Page 33 Figure2-9 Removing a filler panel Correctly orient the power supply. Align the power supply with the power supply slot. Then slide the power supply along the guide rails into the slot until the latch locks the power supply in place. 2-12...
  • Page 34 Figure2-10 Installing an AC power supply Connecting an AC power cord CAUTION: • Make sure each power cord has a separate circuit breaker. • Before you connect a power cord, turn off the circuit breaker for it. To connect an AC power cord: Route the power cord along the cable ladder.
  • Page 35 Figure2-11 Connecting an AC power cord (using a removable cable tie) Installing MPUs CAUTION: • The router supports active/standby MPU switchover when you install two MPUs for the router. For the standby MPU to operate correctly, make sure the active and standby MPUs are the same model.
  • Page 36 Keep the removed filler panel secure for future use. Open the ejector levers of the MPU. Insert the MPU steadily into the slot along slide rails. Continue to push the MPU by its middle part on the front panel until the brakes on its ejector levers touch the slot edges tightly.
  • Page 37 Installing an interface module that uses detachable ejector levers CAUTION: • Put the detachable ejector lever back on its holder after use and then attach it to the chassis or cabinet for future use. • The ejector lever holder is magnetic. Be aware of electromagnetic interference. •...
  • Page 38 The number of screws for securing the protection box in Figure2-14 is for illustration only and the actual number of screws on your interface module might differ from that. Figure2-14 Removing the protection box Correctly orient the interface module. Align the module with the slot and push it steadily into the slot along the guide rails until about half of the module is in the slot.
  • Page 39 Figure2-16 Installing an ejector lever Open the ejector levers and continue to push the module by its middle part on the front panel until you cannot push it any further. As shown in Figure2-17, close the ejector levers until they come in close contact with the front panel.
  • Page 40 If you are not to install an interface subcard in a slot on an interface module, keep the filler panel in the slot. For the interface subcard compatibility with interface modules, see H3C CR19000-16 Core Router Hardware Information and Specifications.
  • Page 41 Continue to push the interface subcard by its middle part on the front panel until you cannot push it any further. Close the right ejector lever until it comes in close contact with the front panel. Use a screwdriver to fasten the captive screw on the interface subcard. Figure2-20 Installing an interface subcard Installing cable management brackets The cable management brackets are to be installed along the left and right edges of the interface...
  • Page 42 Figure2-21 Installing cable management brackets NOTE: You must press the spring tab while removing a cable management bracket. Installing fabric modules CAUTION: • If you are not to install a fabric module in a fabric module slot, keep the filler panel in the slot. •...
  • Page 43 Keep the removed protection box secure. Figure2-22 Removing the protection box Press the spring clip for each ejector lever of the fabric module to release the ejector levers. Orient the fabric module with the "Up" sign facing up. Align the fabric module with the target slot and insert it into the slot along the guide rails.
  • Page 44 Installing a filler panel in a fabric module slot Loosen the captive screws on the ejector levers and open the ejector levers. Align the filler panel with the fabric module slot. Push the filler panel slowly into the slot along the guide rails.
  • Page 45 IMPORTANT: A fan tray covers fabric module slots. Install fabric modules or filler panels in the fabric module slots before installing a fan tray. The procedure is the same for installing a fan tray in the FAN1 slot and FAN2 slot. The following procedure installs a fan tray in the FAN1 slot.
  • Page 46 Verifying the installation Table2-4 Post-installation checklist Item Requirements • No condensation is on the surface of the router or inside the router. • The router is clean and dust-free. Installation • No packaging boxes, packaging bags, or other packaging materials are left around location the chassis.
  • Page 47 Flow control—None. Starting the router Power on the router. Verify the following items: The LEDs on the front panel are normal. For the LED description, see H3C CR19000-16  Core Router Hardware Information and Specifications. The configuration terminal displays information normally.
  • Page 48 Contents 3 Connecting cables ··················································································· 3-1 Connecting cables to Ethernet copper ports ··································································································· 3-1 Cables for connecting Ethernet copper ports ·························································································· 3-1 Making an Ethernet twisted pair cable ···································································································· 3-2 Connecting an Ethernet cable ················································································································· 3-3 Connecting cables to fiber ports······················································································································ 3-3 About transceiver modules and optical fibers ·························································································...
  • Page 49 Connecting cables Connecting cables to Ethernet copper ports Cables for connecting Ethernet copper ports Typically, Ethernet copper ports use twisted pair cables for communication. 10/100 Mbps Ethernet uses category-5 twisted pair cables, while 1000 Mbps Ethernet uses category-5 enhanced or category-6 twisted pair cables.
  • Page 50 Cable pinouts EIA/TIA cabling specifications define two standards: 568A and 568B for cable pinouts. • Standard 568A—pin 1: white/green stripe, pin 2: green solid, pin 3: white/orange stripe, pin 4: blue solid, pin 5: white/blue stripe, pin 6: orange solid, pin 7: white/brown stripe, pin 8: brown solid.
  • Page 51 Examine the status LED for the Ethernet port to verify the cable connectivity. For the description of the port LEDs, see H3C CR19000-16 Core Router Hardware Information and Specifications. Connecting cables to fiber ports...
  • Page 52 Installing transceiver modules and optical fibers WARNING! Disconnected optical fibers or transceiver modules might emit invisible laser light. Do not stare into beams or view directly with optical instruments when the router is operating. CAUTION: • Before installing a transceiver module, remove the optical fibers, if any, from it. For more information about installing transceiver modules, see the installation guide for the transceiver modules.
  • Page 53 Figure3-3 Installing a transceiver module and optical fiber (LC port) Figure3-4 Installing a transceiver module and optical fiber (MPO port) Connecting a QSFP+ optical fiber WARNING! Disconnected optical fibers or transceiver modules might emit invisible laser light. Do not stare into beams or view directly with optical instruments when the router is operating.
  • Page 54 Orient the cable with the pull tab on the QSFP+ module facing upward. Push the module gently into the port until it is firmly seated in the fiber port. Use cable ties to bind optical fibers every 150 mm (5.91 in). Label optical fibers according to the cable labeling specifications.
  • Page 55 Connecting an E1 75-ohm BNC/SMB cable The E1 75-ohm BNC cable and SMB cable use the same connection procedure. The following procedure connects an E1 75-ohm BNC cable. To connect an E1 75-ohm BNC cable: • If you do not need to extend the cable, perform these steps: a.
  • Page 56 Figure3-8 Connecting an E1 75-ohm cable (using an impedance converter) E1 75-ohm cable Straight-through network cable Peer device (120-ohm E1 port) E1 / E1-F (75 ohm) Impedance converter...
  • Page 57 Contents 4 Replacement procedures ········································································· 4-1 Replacing a power supply ······························································································································· 4-1 Replacing a module ········································································································································ 4-2 Replacing an MPU ·································································································································· 4-3 Replacing an interface module that uses detachable ejector levers ······················································· 4-4 Replacing an interface module with ejector levers ·················································································· 4-5 Replacing an interface subcard ···············································································································...
  • Page 58 Replacement procedures WARNING! • When replacing FRUs while the router is operating, ensure electricity safety. • To avoid bodily injury and device damage, follow the procedure in this chapter strictly to replace a module. • Long-time exposure to strong air flow might cause discomfort. To avoid this hazard, do not stand close to the air outlet vents while the router is operating.
  • Page 59 Holding the power supply handle with one hand and supporting the power supply bottom with the other, pull the power supply slowly out of the slot. Place the removed power supply on the antistatic mat. Install a new power supply. For information about the power supply installation procedure, see "Installing power supplies."...
  • Page 60 Replacing an MPU IMPORTANT: The router supports active/standby MPU switchover when you install two MPUs for the router. For the standby MPU to operate correctly, make sure the active and standby MPUs are the same model. To replace an MPU: Remove the cables from the MPU.
  • Page 61 Replacing an interface module that uses detachable ejector levers CAUTION: • Put the detachable ejector lever back to its holder after use and then attach them to the chassis or rack for future use. • The ejector lever holder is magnetic. Beware of electromagnetic interference. •...
  • Page 62 Figure4-6 Removing an interface module Replacing an interface module with ejector levers Remove the cables from the interface module. Prepare an antistatic mat to place the removed interface module. Wear an ESD wrist strap, and make sure it makes good skin contact and is reliably grounded. Use a Phillips screwdriver to loosen the captive screws on the module.
  • Page 63 Figure4-7 Removing an interface module with ejector levers Replacing an interface subcard IMPORTANT: • If you are not to install a new interface subcard after removing the old one, install a filler panel in the slot. • When installing a filler panel, orient it with the blade of the screwdriver image on it facing upwards.
  • Page 64 Figure4-8 Removing an interface subcard Replacing a fabric module WARNING! When you hot swap a fabric module, only one fan tray is operating and it automatically increases the fan rotation speed and makes louder noise. Take protection measures such as wearing an earmuff or earplug.
  • Page 65 To replace a fabric module: Prepare an antistatic mat to place the removed fabric module. Wear an ESD wrist strap, and make sure it makes good skin contact and is reliably grounded. Press the spring clips for the ejector levers to release the ejector levers. Simultaneously open the ejector levers and pull the fabric module part way out of the slot.
  • Page 66 Replacing a fan tray WARNING! • Ensure electricity safety when you hot swap a fan tray. • To avoid bodily injury, do not touch the spinning fans when you replace the fan tray. CAUTION: • The router provides two fan tray slots. To ensure good ventilation, make sure the router has two fan trays installed.
  • Page 67 Figure4-10 Removing a fan tray (1) Loosen the captive screws on the fan tray (2) Pull the fan tray slowly out of the chassis Replacing transceiver modules WARNING! Disconnected optical fibers or transceiver modules might emit invisible laser light. Do not stare into beams or view directly with optical instruments when the router is operating.
  • Page 68 To remove the optical fibers with an LC connector, press the clip on the connector to pull the  LC connector out of the port, as shown in Figure4-11. To remove the optical fiber with an MPO connector, hold the front end of the MPO connector ...
  • Page 69 Figure4-12 Removing a transceiver module (MPO port) Replacing a QSFP+ optical fiber Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Hold the pull tab of the connector and remove the optical fiber from the QSFP+ transceiver module.
  • Page 70 Contents 5 Troubleshooting ······················································································· 5-1 Troubleshooting methods································································································································ 5-1 Configuration terminal display issues·············································································································· 5-1 No display on the configuration terminal ································································································· 5-1 Garbled display on the configuration terminal ························································································· 5-2 System failures during operation ···················································································································· 5-2 Power supply failure ········································································································································ 5-2 Fan tray failure ················································································································································...
  • Page 71 The MPU provides LEDs for the fans, power supplies, and modules. You can locate the failures according to the LED status on the MPU. For more information about the MPU LEDs, see H3C CR19000-16 Core Router Hardware Information and Specifications.
  • Page 72 When a power supply is faulty, the OK LED is off and the FAIL LED is on. • On the power supply, the INPUT OK LED is off, or the OUTPUT OK LED is amber or red. For more information about the LEDs, see H3C CR19000-16 Core Router Hardware Information and Specifications. NOTE: After a power supply is removed from the router, the input and output LEDs on the power supply stay on for several seconds.
  • Page 73 You can determine the power supply status by observing the LEDs on the power supply. For information about the power supply LEDs, see H3C CR19000-16 Core Router Hardware Information and Specifications. Install the power supply in another empty power supply slot. If the power supply operates correctly, the previous power supply slot is faulty.
  • Page 74 Calculate the total power consumption, and make sure your power supplies can provide enough power. For more information, see H3C CR19000-16 Core Router Hardware Information and Specifications. Remove and reinstall the interface module to make sure it is installed securely. For more information about installing an interface module, see "Installing interface modules."...
  • Page 75 Calculate the total power consumption, and make sure your power supplies can provide enough power. For more information, see H3C CR19000-16 Core Router Hardware Information and Specifications. Remove and reinstall the fabric module to make sure the module is installed securely. You also need to verify that the ejector levers are locked securely in place.
  • Page 76 • Maintenance agreement or warranty card. • Brief issue description. • Brief explanation of the troubleshooting measures that have been taken. You can contact H3C Support through the phone, H3C website, or email. Phone: 400-810-0504 Website: http://www.h3c.com E-mail: service@h3c.com...
