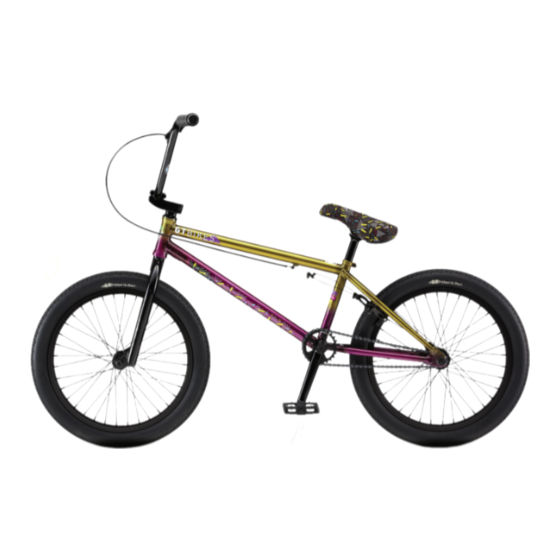

- Page 1 MODELS QUICK START GUIDE Freestyle Team Signature Models Freestyle Team Comp Models Freestyle Team Models Freestyle Performers Slammer Airs...
- Page 2 Still have questions? GT rider support staff are ready to help you. Feel free to risk in many ways. Begin by reading the give ‘em a ring at (800) 245-3872 a great source of help is at your local GT retailer or other professional complete GT Bicycle Owner’s manual accompanying this bike and available bicycle retailer.
- Page 3 THE 4 MAJOR STEPS TO GETTING YOUR BIKE READY TO RIDE 1. INSTALL HANDLEBARS 2. INSTALL SEATPOST 3. INSTALL FRONT WHEEL 4. INSTALL PEDALS SETUP STEP 1 STEP 2 STEP 3 STEP 4 CONGRATS!
- Page 4 GETTINGYOUR BIKE READY FOR ASSEMBLY TOOLS NEEDED + This assembly video applies to multiple BMX freestyle platforms. • Freestyle Team Signature Models • Pliers or Screwdriver • Freestyle Team Comp Models • Philips head Screwdriver • Freestyle Team Models • Boxcutter •...
- Page 5 KEY PARTS OF THE BIKE REFERENCED IN THIS GUIDE SADDLE HANDLEBARS STEM SEATPOST FRONT AXLE PEDAL SETUP STEP 1 STEP 2 STEP 3 STEP 4 CONGRATS!
-
Page 6: Install Handlebars
STEP 1 INSTALL HANDLEBARS 1. Remove the four bolts that connect the face plate to the stem. The stem connects the handlebars to the steerer tube of the bike fork. 2. Take your bars and place them on top of the stem. Make sure the brake line crosses the front of the bike and reattaches to the fork on the left-hand side. -
Page 7: Install Seatpost
STEP 2 INSTALL SEATPOST 1. Install the seatpost into the frame. Locate the minimum insertion line and be sure to insert the seatpost beyond this line. 2. Straighten and align the seat in line with the top tube. 3. Tighten the seat collar snugly for now. It will be tightened to the proper torque spec later. -
Page 8: Install Front Wheel
STEP 3 INSTALL FRONT WHEEL 1. Remove the fork protector packaging. 2. On the bolt-on axle you will see tab washers and axle nuts. Thread the nuts towards the end of the axle. Move the washers to make room for the dropouts. - Page 9 4. Place the tab washer into the opening on the bottom of the fork, and hand-tighten the nut against the tab washer. Repeat the process on the other side of the fork. 5. Turn clockwise – “righty-tighty” with a 15mm or large adjustable wrench.
-
Page 10: Install Pedals
STEP 4 INSTALL PEDALS 1. Install the pedals. Locate the left and right stickers on the crank, and also on the pedals. Screw the pedals in the direction of the front wheel. Tighten both pedals very firmly using the pedal wrench included in the box. L for Left SETUP STEP 1... - Page 11 CONGRATULATONS! YOUR NEW GT BIKE IS NOW ASSEMBLED Before you ride, it’s important to perform a few pre-ride checks. Make sure your reflectors are tight and positioned correctly. The rear must point straight back, and the front must be perpendicular to the ground.
-
Page 12: Our Story
OUR STORY Since 1972 GT Bicycles has proudly been developing bikes, for every type of rider, with a consistent mission. That mission is the same reason everybody throws a leg over their very first bike – pure fun, plain and simple. GT Bicycles remains true to...
