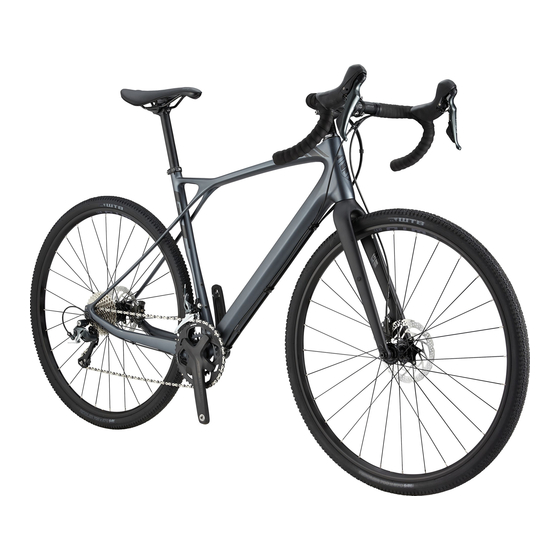

2020
Grade Carbon
Owner's Manual Supplement
READ THIS SUPPLEMENT AND YOUR
GT BICYCLE OWNER'S MANUAL. Both
contain important safety information. Keep
both for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Grade Carbon 2020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GT Grade Carbon 2020

  • Page 1 2020 Grade Carbon Owner’s Manual Supplement READ THIS SUPPLEMENT AND YOUR GT BICYCLE OWNER’S MANUAL. Both contain important safety information. Keep both for future reference.
  • Page 2 2020 Grade Carbon - Owners’ Manual Supplement Safety Messages In this supplement, particularly important information is presented in the following ways: Indicates a hazardous situation which, if not avoided, may result in death or serious injury. NOTICE Indicates special precautions that must be taken to avoid damage.
  • Page 3 1 Cannondale Way, Wilton CT, 06897, USA 1-800-726-BIKE (2453) Cycling Sports Group Europe B.V Mail: Postbus 5100 Visits: Hanzepoort 27 7575 DB, Oldenzaal, Netherlands International Distributors Consult the following websIte to identify the appropriate GT Dealer for your region. www.gtbicycles.com/usa_en/ international-distributors/ 134948...
  • Page 4 (frame, stem, delamination or damage: fork, handlebar, seat post, etc.) Ask · An unusual or strange feel to the your GT Dealer for help. frame We urge you to read PART II, Section · Carbon which has a soft feel or D.
  • Page 5 To minimize risk of injury or accidents: · Understand that road bikes have a Please read your GT Bicycle Owner’s relatively small tire contact patch Manual for more information about (part of the tire that touches the Intended Use and Conditions 1-5.
  • Page 6 GT Dealer for help. If you ride a trainer a lot, consider using an old bike: Corrosion from sweat will take its toll. Weight is irrelevant. Save wear on your expensive components.
  • Page 7 Building Up A Frame Set Tightening Torques Before building up a frame set, consult Correct tightening torque for the with your GT Dealer and the component fasteners (bolts, screws, nuts) on manufacturers, and discuss your riding your bicycle is very important to your style, ability, weight, and interest in and safety.
  • Page 8 2020 Grade Carbon - Owners’ Manual Supplement TECHNICAL INFORMATION Frame Specification Item Specification Head Tube UPR: 1-1/8 in, LWR: 1-1/4 in Headset FSA No.44E, UPR: 1-1/8 in, LWR: 1-1/4 in Bottom Bracket: Type / Width PF30 (sleeved) / 68 mm Front Derailleur Brazed-on Seat Post: Dia.
  • Page 9 English Geometry Seat Tube Length Top Tube Horizontal Top Tube Actual Head Tube Angle Seat Tube Angle (effective) 75.0 E’ Seat Tube Angle (actual) Standover Head Tube Length Wheelbase Front Center Chain Stay Length Bottom Bracket Drop Bottom Bracket Height Fork Rake Trail Stack...
  • Page 10 If you find damage have the frame inspected by your GT Dealer . If the dropout is un-damaged, apply a light film of grease between the frame and mount.
  • Page 11 Execesssive play, NOTICE roughness or corrossion indicates a damaged bearing. Consult with your GT Dealer on the quality and compatibilty of any proposed replacement Removal component. To avoid serious damage to the frame, it is •...
  • Page 12 2020 Grade Carbon - Owners’ Manual Supplement Fork - Flip Chip The fork flip chip orientation can be changed to move the front wheel axle forward (LOADED) or rearward (UN-LOADED). The default orientation is UN-LOADED, riding without a front load. The LOADED position is for riding with a front load, an axle position which increases fork rake 1.5 cm to decrease trail 1.5 cm.
  • Page 13 English Flip Chip - Brake System Set-Up Identification Spacer (2X) UN-LOADED 140/160mm Front Flat Mount Adapter Brake Mounting Bolts (2X) Moutning plate Marking orientation LOADED 134948...
  • Page 14 2020 Grade Carbon - Owners’ Manual Supplement Flip Chip - Parts N·m Identification Flip Chip (2X) 3. Spacers (2X) 5. Flat Mount Plate 2. Screw (2X) 4. Bolts 6 . Brake Caliper Changing the Flip Chips • Determine the UN-LOADED or LOADED Flip Chip position and changes needed in the flat mount brake plate and brake disc on previous page.
  • Page 15 English Di2 Internal Routing • From the handlebar, the Di2 wire (DTW) follows the brake hose to the down tube hole; wire goes through the hole in the underside of the down tube near the head tube. • Front derailleur (FD) : wire goes through hole in the side of the seat tube behind the front derailleur mount.
  • Page 16 2020 Grade Carbon - Owners’ Manual Supplement Rear Fender Bridge Optional fender bridge (1) allows you to mount a compatible fender. Installation Assemble as shown, making sure the bridge registers in the molded flat (a) on each seat stay. Snap the two sliding bridge pieces together using the two metal nut pieces. Orienta- tion (shown b) of the two metal nut pieces matters: the fender bolt must pull the threaded piece into the un-threaded piece.
  • Page 17 English Seat Post Sizing a seat post NOTICE Use the correct seat post length shown above. Do not force or bottom-out the seat post inside the Min. 65mm frame. If the seat post must be cut, use the appropriate saw blade for the seat post material, aluminum or carbon.
  • Page 18 2020 Grade Carbon - Owners’ Manual Supplement REPLACEMENT PARTS 4 N·m 4 N·m 2 N·m 4 N·m 4 N·m Part Part Description Description Number Number Derailleur Hanger TA ST K25009 Thru Axle Flip Chips K33030 SS 075 Grade Crb Front Derail- K33020 Downtube X Cable leur Hanger...
  • Page 19 English...
  • Page 20 WWW.GTBICYCLES.COM © 2019 Cycling Sports Group 2020 Grade Carbon Owners’ Manual Supplement 134948 GT USA GT EUROPE GT UK Cycling Sports Group, Cycling Sports Group Europe, B.V. Cycling Sports Group Inc. Hanzepoort 27, 7570 GC, Oldenzaal, Vantage Way, The Fulcrum,...
