- Page 1 K&F VIDA L Adapter Plate User‘s Manual Revision 1.4 Released: 11/18/2019 EN | Translation of the original instructions Important Information, Please Read Before Use! KLING & FREITAG GmbH Junkersstraße 14 D-30179 Hannover TEL +49 (0) 511- 96 99 70 FAX +49 (0) 511- 67 37 94 www.kling-freitag.de...
-
Page 3: Table Of Contents
K&F VIDA L Adapter Plate User‘s Manual Table of Content Chapter / Content Page 1. Introduction 1.1 Icons Used 1.2 About this user's manual 2. Product Description 2.1 Items Included 2.2 Components 3. Safety Instructions 3.1 General Safety Instructions 3.2 Safety Instructions When Mounting the System as a Stand 4. -
Page 4: Introduction
K&F VIDA L Adapter Plate User's Manual Introduction Thank you for purchasing a KLING & FREITAG product. Icons Used This icon indicates a risk of injury or death. Not following these instructions may result in serious health problems including potentially fatal injuries. Warning This icon indicates a possibly dangerous situation. -
Page 5: About This User's Manual
K&F VIDA L Adapter Plate User's Manual About this user's manual © KLING & FREITAG GMBH, all rights reserved. All specifications regarding the features of the described products and applicable safety guidelines pro- vided in this manual are based on information available at the time of publishing. We assume no responsibility for technical specifications, dimensions, weights, and properties. -
Page 6: Product Description

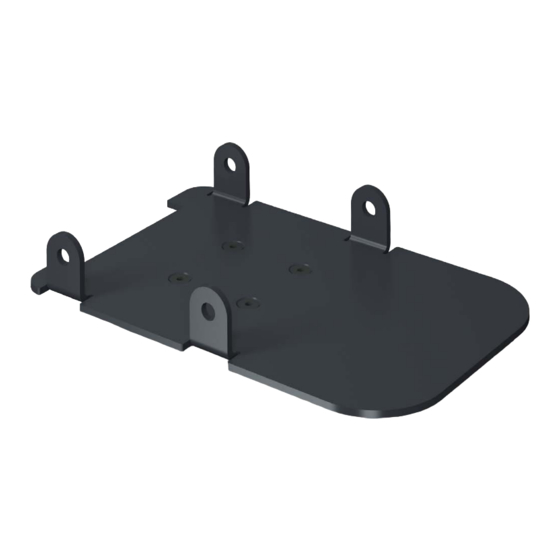

K&F VIDA L Adapter Plate User's Manual Product Description Under specific circumstances, the VIDA L adapter plate allows for mounting up to 2 VIDA L speakers with or without a VIDA C onto the DesignStand KLING & FREITAG VIDA L stand by H.O.F. Alutec. Visit the following page on the H.O.F. -
Page 7: Safety Instructions
K&F VIDA L Adapter Plate User's Manual Safety Instructions General Safety Instructions The information described here does not relieve the user of the duty to follow the given safety require- ments and legal regulations. The component is designed for operation on horizontal grounds. There must be no risk of persons run- ning into the setup as well as no wind loads in normal operation;... -
Page 8: Intended Use
K&F VIDA L Adapter Plate User's Manual Intended Use Be sure to use the VIDA C adapter plate only in combination with the DesignStand KLING & FREITAG VIDA L stand and the required stand components (see below) and the VIDA L or VIDA L plus VIDA C speakers by KLING &... -
Page 9: Preparing The Stand
K&F VIDA L Adapter Plate User's Manual Preparing the Stand Mount the stand as appropriate for the desired height. Mount the adapter plate to an Excel- lent Line DesignStand Universal Header HD component made by H.O.F. Alutec only! Warning Place the adapter plate onto the Uni- versal Header HD. -
Page 10: Mounting A Single Speaker Onto The Stand
K&F VIDA L Adapter Plate User's Manual Mounting a Single Speaker onto the Stand To fold down the stand, unlock the stand joint. Loosen the stand joint by unscrewing the hand wheel from the detent. Fold down the stand. Use the lever to release the speaker’s connecting pins. - Page 11 K&F VIDA L Adapter Plate User's Manual Align the speaker. The adapter-plate connecting tabs should smoothly slide into the speaker housing. Lock the lever. Check the lever for se- cure fit. Risk of injury from falling objects! Improperly mounted speakers are not safe but pose a potential hazard.
- Page 12 K&F VIDA L Adapter Plate User's Manual Lock the stand joint again by screwing the hand wheel into the joint detent. If necessary, apply ballast to prevent the stand from tipping or falling over. Speaker installation is now complete, so you can start the cabling. Page 12 of 15 Version 1.4 ©...
-
Page 13: Mounting Two Speakers Onto The Stand
K&F VIDA L Adapter Plate User's Manual Mounting Two Speakers onto the Stand Depending on the application at hand, you can mount up to 2 VIDA L or 2 VIDA L plus 2 VIDA C onto the specified stand using the adapter plate. To mount two VIDA L speakers to the same stand, you first need to mount the speakers together, then place them onto the stand vertically using a suitable lift. -
Page 14: Dimensions And Weight
K&F VIDA L Adapter Plate User's Manual Dimensions and Weight Weight: 2.7 kg Page 14 of 15 Version 1.4 © KLING & FREITAG GMBH... -
Page 15: Transportation And Storage
K&F VIDA L Adapter Plate User's Manual Transportation and Storage All metal parts are protected against the effects of unfavorable temporary weather conditions, etc.; de- spite, be sure to store, transport, and use the accessories in dry environments only. Speaker accessories are not designed for prolonged use in corrosive environments. - Page 16 User‘s Manual K&F VIDA L Adapter Plate INDEX Array ................................13 Care ................................15 Dimensions ..............................14 Dismounting ..............................13 Flying frame ..............................13 Installation ................................ 8 Items Included ..............................6 Maintenance ..............................15 Storage ................................15 Transportation ..............................15 Transportation case ............................
- Page 17 User‘s Manual K&F VIDA L Adapter Plate Notizen © KLING & FREITAG GMBH Revision 1.417 Page 17 of 17...
