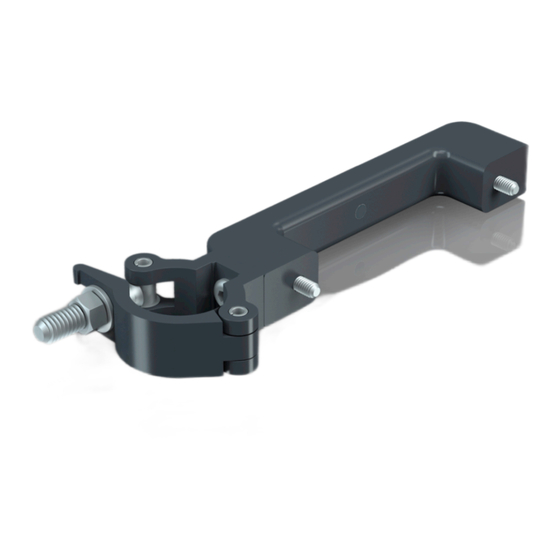

K&F VIDA L Mounting Bracket/Handhold

Version 1.3

User's Manual

Released: 20.01.2017

Translation of the original instructions

Important Information,

Please Read Before Use!

KLING & FREITAG GmbH

Wohlenbergstrasse 5

D-30179 Hannover

TEL +49 (0) 511 96 99 70

FAX +49 (0) 511 67 37 94

www.kling-freitag.de

Table of Contents

Summary of Contents for KLING & FREITAG VIDA L

Page 1 K&F VIDA L Mounting Bracket/Handhold Version 1.3 User's Manual Released: 20.01.2017 Translation of the original instructions Important Information, Please Read Before Use! KLING & FREITAG GmbH Wohlenbergstrasse 5 D-30179 Hannover TEL +49 (0) 511 96 99 70 FAX +49 (0) 511 67 37 94...
Page 3: Table Of Contents
General Safety Instructions Safety Instructions When Mounting the System to a Truss Installation Required Tools Mounting the Bracket/Handhold to a VIDA L Speaker Mounting the Pipe Clips to a Truss or Pipe Mounting to a Truss or Pipe 5.4.1 Mounting to a Truss 5.4.2...
Page 4: Introduction
Thank you for purchasing a KLING & FREITAG product. To guarantee trouble-free operation and enable the KLING & FREITAG VIDA L speaker system to achieve its full potential, please read these user's manual carefully before use. This item is a quality accessory for the VIDA L speaker system.
Page 5: Product Description
Using it is mandatory for mobile applications. For that purpose, the bracket will be screwed to the mounting rail at the rear of the VIDA L . The mounting bracket/handhold does not only allow for transporting the speaker securely and safely but is also required when using pipe clips for mounting the speaker to a truss or a similar pipe (diameter: 48-51 mm).
Page 6: Intended Use
Only qualified event technicians are permitted to suspend a VIDA L system. Warning When suspending VIDA L speakers, be sure to use the mounting components described in these user's manual. Ensure that all connections are secured against coming loose and that only authorized, statically tested and correctly sized supports, mounting equipment, wire ropes and chains are used.
Page 7 User's Manual K&F VIDA L Mounting Bracket/Handhold Also follow the operating and safety instructions supplied with the product you intend to suspend the speaker system from. Never mount the speaker system to a product if there is no information on safe use and maximum load.
Page 8: Installation
Only the supplied slot nuts must be used at the rear rail. Setting up the speaker system requires two persons or a suitable lift for carrying and handling. Required Tools Use the following tools for mounting the VIDA L mounting bracket/handhold: • Allen screwdriver (6 mm) •...
Page 9 User's Manual K&F VIDA L Mounting Bracket/Handhold Move the bracket/handhold into position. Now, tighten the bolts. Torque: 16Nm Check carefully whether all brackets/handholds have been mounted properly: The bolts with relieve shank need to be tightened firmly with no play.
Page 10: Mounting The Pipe Clips To A Truss Or Pipe
Warning Please be sure to mount to a K&F VIDA L Slimline half coupler (K&F item #36137) only! Attach the pipe clip to the VIDA L mounting bracket/handhold only using the supplied pipe- clip screw. Only screws of that type are specifically made and tested for mounting a pipe clip to a VIDA L bracket/handhold.
Page 11: Mounting To A Truss Or Pipe
K&F VIDA L Mounting Bracket/Handhold Mounting to a Truss or Pipe Be sure to use the K&F VIDA L Slimline half coupler (K&F item #36137) for mounting the speaker systems to trusses or pipes! The pipe clips specified by KLING & FREITAG are designed for customary pipe surfaces and diameters of 48 to 51 mm.
Page 12 User's Manual K&F VIDA L Mounting Bracket/Handhold Warning Example 2: When VIDA L speakers are used in combination with VIDA C, note that you can attach the pipe clips laterally only. This single-sided attachment of pipe clips necessitates vertical speaker placement.
Page 13: Mounting To A Truss
User's Manual K&F VIDA L Mounting Bracket/Handhold Example 4: If you want to suspend VIDA L speakers with VIDA C horizontally as an array, be sure to mount pipe clips to both ends of the speaker and fix these appropriately to trusses or rig pipes.
Page 14: Mounting On The Ground
User's Manual K&F VIDA L Mounting Bracket/Handhold Where struts are obstructive, move the mounting brackets/handholds as necessary to vary the pipe-clip positions. Tighten the bolts to a 16 Nm torque. Warning Attach the pipe clips to the truss one by one.
Page 15 Interconnect the speakers as described in the VIDA L Speaker user's manual. Note that moving the mounting brackets/handholds might be necessary in order to freely position the speakers to the truss.
Page 16 User's Manual K&F VIDA L Mounting Bracket/Handhold Secure the M12 nut by hand- tighten the butterfly nut against the nut. Check all pipe clips carefully for secure fit. Danger! Risk of injury from falling objects! Improperly mounted speakers are not safe for suspending.
Page 17: Dismounting
This way, they cannot get lost and are always at hand when needed. In addition, the parts are protected at least temporarily against the effects of unfavorable weather conditions, etc. Secure the speaker or array using a VIDA L flying frame, a VIDA L flying bracket, or an appropriate lift before releasing the pipe clips.
Page 18: Dimensions And Weight
User's Manual K&F VIDA L Mounting Bracket/Handhold Dimensions and Weight Handhold weight (incl. bolts): 0.5 kg Pipe-clip weight: 0.25 kg KLING & FREITAG GMBH © 2017 Version 1.3 Page 18 of 25...
Page 19: Transportation And Storage
Make sure that the system is adequately ventilated during longer storage periods so any residual moisture can escape from the equipment. In addition, protect all system parts and VIDA L accessories from mechanical strains in order to prevent damage. Care and Maintenance For the owner and user, it is mandatory to be aware that speaker accessories used to fly or mount the speakers are fundamentally safety-relevant.
Page 20: 10. Appendix
Warning Be sure to use exclusively the types of pipe clips and pipe clip screws specified for use with the VIDA L mounting bracket/handhold by KLING & FREITAG. Refer to the manufacturer's website indicated below for updates to relevant information.
Page 25 User's Manual K&F VIDA L Mounting Bracket/Handhold INDEX • Dimensions...........................18 • Dismounting..........................17 • Maintenance..........................19 • Pipe clip...........................10,11 • Storage............................19 KLING & FREITAG GMBH © 2017 Version 1.3 Page 25 of 25...
