- Page 1 V3.0 Technical Assistance: Quick Guide eMail ufficiotecnico@capetti.it Phone +39 01198198238 MWDG-GSM Mobile +39 3331985070 Capetti Uff. Tecnico Contatto Telegram Whatsapp Telegram...
-
Page 2: System Components

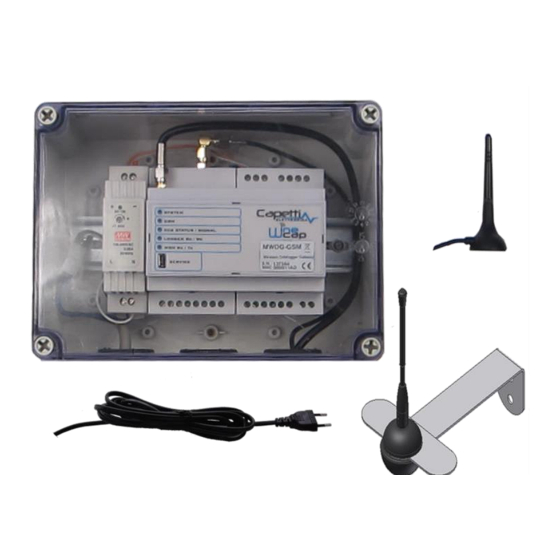

V3.0 System Components Notes SIM Card GSM Antenna WSN Antenna ANT-EXT 12/24V Indicators HHDR1524 Power supply USB Cable WineCapManager... -
Page 3: Terminal Blocks
V3.0 Service Center Connection Terminal Blocks 1. Insert a working SIM and configure the provider APN and related PIN using WineCapManager. 2. GSM LED (green): a. 1 flash/sec: network searching b. 1 flash/4sec: signal ok 3. Connection test: issue to basestation command 4 using WinecapKey. -
Page 4: Led Description
V3.0 Led Description WineCapManager System indicator: 1. Launch Setup.exe from the WineCapManager folder ed • System slow flash = OK run the installation. • rapid flash = probe/datalogger enrolling 2. Launch WineCapManager and select “Local Connection”. Logger Memory status Service Center connection: 3. -
Page 5: Usb Driver
V3.0 USB Driver Start Sensors 1. Connect USB cable to PC. 1. Connect MWDG as shown before, power up and verify Led “System” flashing 2. Access to Control Panel/Device Manager then click on MWDG device. 2. Activate the probe/datalogger: 3. Manually install the USB driver (MWDG_CDC.inf) a. -
Page 6: How To Install
V3.0 3. Adding repeaters to improve radio coverage How to Install a. couple a repeater to the systema and write down assigned address Guidelines to follow during the system installation b. position it upward among obstacles and people process c. select a “strategic” point among the plant 1.
