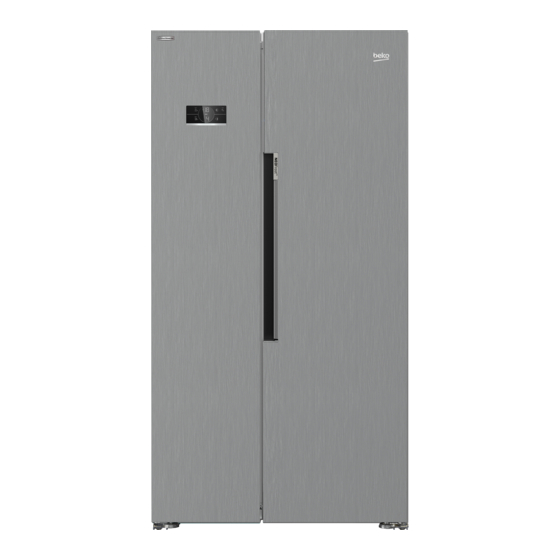

- Page 1 Refrigerator User Manual 191641EI 58 5821 0000/ EN/ AK/ 02/08/2022 15:34 7285520143...
-
Page 2: Table Of Contents
Table of Content 1 Safety Instructions ......Intention of Use ......Safety of Children, Vulnerable Persons and Pets ......Electrical Safety......Handling Safety ......Installation Safety ......Operational Safety....... Food Storage Safety....Maintenance and Cleaning Safety .......... Lighting ........11 2 Environmental Instructions .. - Page 3 EN / 3...
-
Page 4: Safety Instructions
1 Safety Instructions • This section includes the In the units of hotels, motels or safety instructions necessary other resting facilities that are to prevent the risk of personal used by the customers, injury or material damage. In hostels, or similar environ- •... -
Page 5: Electrical Safety
• Electrical products are danger- Electrical Safety ous for children and pets. Chil- • The product shall not be dren and pets must not play plugged into the outlet during with, climb on, or enter the installation, maintenance, product. cleaning, repair, and transport- •... -
Page 6: Handling Safety
the mains (fuse, switch, main • Check for any damage on the switch, etc.) shall be available product before installing it. Do on the electrical installation. not have the product installed • Do not touch the plug with wet if it is damaged. hands. -
Page 7: Operational Safety
amount of the refrigerant avail- • The product’s power cable able in your product is spe- must be unplugged during in- cified in the Type Label. stallation. Otherwise, risk of • The installation place of the electric shock and injury may product shall not be exposed occur! to direct sunlight and it shall... - Page 8 • In case of a failure of the • Do not touch the inner walls, product, unplug it and do not metal parts of the freezer or operate until it is repaired by food kept inside the freezer the authorized service. There with wet hands.
-
Page 9: Food Storage Safety
• If the product is used against • The cooling system in your its intended purpose, it may product contains R600a refri- cause damage to or deteriora- gerant. The refrigerant type tion of the products kept in- used in the product is specified side. -
Page 10: Maintenance And Cleaning Safety
• Clean the water tanks that • Do not put your hands etc. un- have not been used for 48 der the refrigerator. Jamming hours and mains-fed water may occur or any sharp edge systems that have not been may cause personal injuries. used for more than 5 days. -
Page 11: Lighting
• Contact an authorized service Lighting when the LED / bulb used for lighting has to be replaced. 2 Environmental Instructions 2.1 Compliance with WEEE regula- ment. Please ask your local authorities re- garding these collection areas. You can tions and Waste Disposal help protect the environment and natural This product does not contain hazardous resources by delivering the used products... -
Page 12: Your Refrigerator
3 Your Refrigerator 1 Freezer Compartment 2 Cooler compartment 3 Fan 4 *Cooler compartment door shelves 5 Egg holder 6 Water dispenser filling tank 7 *Cooler compartment door shelves 8 Water dispenser reservoir 9 *Cooler compartment glass shelves 10 *Bottle shelf 11 *Cooler compartment door shelves 12 *Dairy (cold storage) bin 13 *Crispers... -
Page 13: Installation
4 Installation Right place for installation The manufacturer assumes no re- sponsibility for any damage caused Read the “Safety Instructions” sec- by the work carried out by unau- tion first! thorized persons. Your product requires adequate air circula- The product’s power cable must be tion to function efficiently. -
Page 14: Electrical Connection
For adjusting the doors vertically, Loosen the fixing bolt at the bottom. Turn the adjusting bolt towards the position (clockwise/counter clockwise) of the door. Tighten the fixing bolt to immobilize the po- sition. Fixing Bolt Fixing Bolt For adjusting the doors horizontally, tion (clockwise/counter clockwise) of the door. -
Page 15: Preparation
• The power cable plug must be easily ac- Hot surface warning! cessible after installation. The side walls of your product are equipped with cooler pipes to en- hance the cooling system. High pressure fluid may flow through these surfaces, and cause hot sur- faces on the side walls. -
Page 16: First Use
5.2 First Use For some models, indicator panel turns off automatically 1 minute Before using your refrigerator, make sure after the door closes. It will be re- the necessary preparations are made in activated when the door is opened line with the instructions in "Safety and En- or any button is pressed. -
Page 17: Control Panel Of The Product
7 Control Panel of the Product 1 *Wireless 2 Quick freezing 3 High temperature/Fault alert 4 Energy saving (Display Off) 5 The Freezer compartment temperat- 6 Vacation function ure setting 7 Cooler compartment temperature 8 *Key for resetting wireless connec- setting tion settings 9 *Deodoriser Module Key... - Page 18 stallation, you may activate/deactivate it by 4. Energy Saving (Display Off) Indicator pressing on this key. The wireless connec- tion symbol will flash quickly (at 0.2 second When the doors are not opened and closed intervals) until the connection is estab- for an extended period of time, the energy lished.
-
Page 19: Using The Product
8. *Key for Resetting Wireless Connec- 9. *Deodoriser Module Key tion Settings+ Press on this key for 3 seconds to activate/ To reset wireless connection settings, deactivate the anti-odour feature. When the Quick freezing and Wireless connection deodoriser feature is active, the LED on the keys should be pressed on respective key is illuminated. - Page 20 Recommended set values table Freezer Compart- Fridge Compart- Remarks ment Setting ment Setting This is the default, recommended setting. This setting is recommended if -18 °C 4 °C ambient temperature is below 30 °C. These settings are recommended for ambient temperatures exceeding 30 -20, -22 or -24 °C 4 °C °C.
-
Page 21: Replacing The Illumination Lamp
• Defrost your frozen food in the fresh food • Do not place unpackaged food close to compartment. Thereby, you can cool eggs. fresh food compartment by using frozen • Keep the fruits and vegetables separately food and save energy. and store each variety together (for ex- •... -
Page 22: Product Features
9 Product Features 9.1 The ice storage area Icematic and Ice Storage Box 9.2 Crisper Technologies Fill the icematic with water and put in place. Blue Light The ice will be ready after approximately Fruits and vegetables stored in the crispers two hours. -
Page 23: Troubleshooting
• Do not use sharp or abrasive tools to and carbonate. Wash and dry thoroughly. clean the product. Do not use materials Prevent contact of water with illumination such as household cleaning agents, components and the control panel. soap, detergents, gas, gasoline, thinner, alcohol, wax, etc. - Page 24 plaints that are not related to faulty work- The refrigerator's operating noise is in- manship or materials. Certain features creasing while in use. mentioned herein may not apply to your • The product's operating performance product. may vary depending on the ambient tem- perature variations.
- Page 25 The cooler temperature is very low, but • The product's operating principles involve the freezer temperature is adequate. liquid and gas flows. >>> This is normal and not a malfunction. • The cooler compartment temperature is set to a very low degree. >>> Set the There is sound of wind blowing coming cooler compartment temperature to a from the product.
- Page 26 • The surface is not flat or durable >>> Fan continues to operate when the door Make sure the surface is flat and suffi- is opened. ciently durable to bear the product. • Fan may continue to operate when the freezer door is open.
