- Page 1 panda futura English manual © 2009 R82 A/S. All rights reserved. The R82 logo and the Panda Futura chairs are registered trademarks of R82 A/S. 2023-01 - rev. 14.0...
-
Page 2: Table Of Contents
CONTENTS Panda Futura - Intended purpose........3 Safety ................4 Service information ............5 Product identification ............6 Measurements ..............6 Symbols ................7 Transfer ................7 Accessories ............... 8 Seats - Mounting / dis-mounting the seat ......9 Back recline / Back extension.......... 10 Head support .............. -
Page 3: Panda Futura - Intended Purpose
Special attention should be given to the considerations Presales information and instructions are available at about the configuration of the product and the use of www.etac.com, under your product, in the documents accessories for users with limitation in their: section. -
Page 4: Safety
• Information regarding frame and seat combinations including max. load in combination can be found at: etac.com. • Information about transportation can be found in the document “M1460 Transportation in Motor Vehicles” supplied with the product. -
Page 5: Service Information
Service & maintenance information Service and maintenance of a medical device is wholly the responsibility of the owner of that device. Failure to service and maintain a device in accordance with the instructions may invalidate the device’s warranty. Furthermore, failure to service and maintain a device may compromise the clinical condition or safety of users and/or their caregivers. -
Page 6: Product Identification
PRODUCT IDENTIFIKATION (XX)XXXXXXXXXXXXXX(XX)XXXXXX(XX)XXXXXX Panda Futura standard and active seat A) Manufacturer The label is placed in the seat under the cushion to the left. B) Serial number The label is placed in the seat under the cushion to the right. Effective Effective Backrest... -
Page 7: Symbols
Symbols For indoor and outdoor use Consult instructions The latest version of the instructions is always available on the Etac web- site and can be printed in larger sizes Warning This symbol appears in the User Guide along with a number referring to the instructions below. -
Page 8: Accessories
9996097901 9996097725 9996097699 9996097738 9996097128 9996097338 9996097339 9996097699 9996097714 9996097720... -
Page 9: Seats - Mounting / Dis-Mounting The Seat

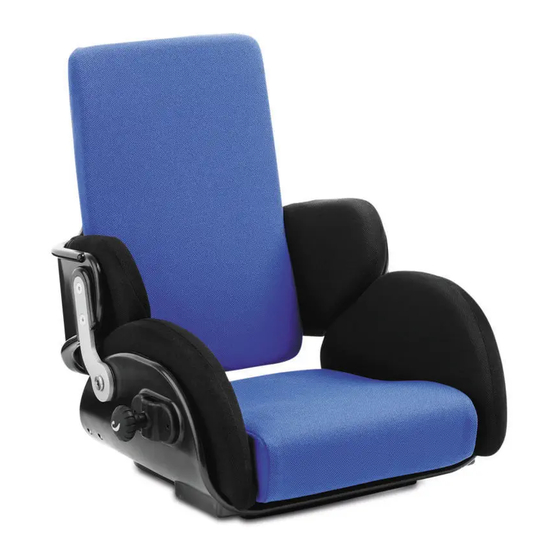

SEATS The Panda Futura seat is available as (A) STANDARD in 5 sizes and as (B) ACTIVE in 4 sizes. The ACTIVE seat is shaped to allow greater up- per extremity movement and is ideal for more active children. The STANDARD seat is shaped with sides, which give the child more support and less movement possibilities. -
Page 10: Back Recline / Back Extension
BACK RECLINE Loosen the handle (A) to recline the back. Firmly grab the back of the chair before loosening the handle to prevent sudden recline. When reclining the back, please be carefull not to get fingers caught between the back and the seat. -
Page 11: Head Support
HEAD SUPPORT A) Lateral adjustment of the head support. B) Angling the head support. C) Angling the arm of the head support. D) Height adjustment. A, B, C and D have to be loose, to make correct head support adjustments. When the correct position is deter mined, tighten A, B, C and D. -
Page 12: Push Brace / Push Handles
PUSH BRACE / PUSH HANDLES Panda Standard: The fittings are mounted on the back using the Allen key (A). The push brace/push handles are mounted in their fit tings on the seat back. Fasten with the handle (C). Panda Active: Start by mounting the fittings in the back rest as shown (B). -
Page 13: Swing Away Shoulder Supports
SWING AWAY SHOULDER SUPPORTS A) The shoulder supports are mounted on the head support bar. Mount the head support bar in the fitting on the seat back. B) Pull out the release knob to swing the shoul- der supports up and away. C) Use a Allen key to heightadjust the shoulder supports. -
Page 14: Side Supports / Swing-Away Side Supports
SIDE SUPPORTS Remove the back cushion and mount the side supports in the slots in the seat back (A). SWING-AWAY SIDE SUPPORTS Remove the back cushion and mount the swing- away side supports in the slots (A) in the seat back. -
Page 15: Swing-Away Knee Supports / Seat Extension
SWING-AWAY KNEE SUPPORTS Attach the fitting (A) beneath the seat with the 4 mm Allen key. Insert the knee supports in the fitting and fasten with the 6 mm Allen key (B). * Loosen the screws (C) with the 6 mm Allen key to adjust the angle of the knee support bars. -
Page 16: Footrest / Pommel
FOOTREST/ FOOTBOARD A) Use the clamping handle to mount and depth adjust the footrest bar. B) Use the handle to angle the footrest bar. C) Use a 6 mm Allen key to height adjust the footrest. D) Use a 6 mm Allen key to angle the footrest. E) Use a 6 mm Allen key to height adjust the footbard. -
Page 17: Arm Rests And Tray
ARM RESTS AND TRAY A) Height adjustment of the arm rests. B) Adjustment of the tray, sideways. C) Depth adjustment of the tray. D) Angling the tray, by angling the arm rests. The tray can only be mounted on a Panda Futura equipped with arm rests. -
Page 18: Mounting Fixlocks
MOUNTING FIXLOCKS Standard Fixlocks can be installed on the Panda seat to easily and quickly fasten and adjust the strap tie- downs. The hip belts (85427-x), abduction belts (89112-x and 89108-x), 5-point belts (89665-x), chest harness (85428-x) and belt/cross vests (89625-x) can then be fastened quickly and in the correct position. -
Page 19: Vest And Cross Vest / Sternum Belt
VEST AND CROSS VEST Mount the fixlocks in the back. See page 18. The vest and cross vest can be opened and closed by using the buckles and the zipper. Follow the instructions below, with help from page 18. * Mount the shoulder straps in the belt fittings on the upper back. -
Page 20: 5-Point Belt / Chest Belt
5-POINT BELT Mount the fixlocks in the back. See page 18. The 5-point belt can be opened and closed by using the buckles. Follow the instructions below, with help from page 18. * Mount the straps (E) in the belt fittings in the seat or in the belt fittings (D). -
Page 21: Hip Belt / Y-Hip Strap
HIP BELT Mount the fixlocks in the seat. See page 18. The hip belt can be opened and closed by using the buckles. Follow the instructions below, with help from page 18. * Mount the straps in the belt fittings under the seat (D). -
Page 22: Pelvis Harness / Ankle Straps
PELVIS HARNESS Mount the fixlocks in the seat. See page 18. Follow the instructions below, with help from page 18. * Open the buckles (G). * Mount the straps (D) in the belt fittings under the seat (D). * Place the user on the harness and close the buckles (G) over the thighs. -
Page 23: Foot Straps / Hand Cuff
FOOT STRAPS The foot straps can be opened and closed by using the velcro or the buckle (A). Follow the instructions below for mounting. * Open the straps and pull them (A) through the slides in the foot plates. * Close the straps around the users foot. Take care that all the fixations and adjust- ments are placed and fitted correctly and check it on a regular basis. -
Page 24: H-Belt / Thermo Bag / Rain Cape With Hood
H-BELT Mount the fixlocks in the back. See page 16. The H-belt can be opened and closed by using the buckle. Follow the instructions below, with help from page 16. * Mount the shoulder straps in the belt fittings on the upper back. (A) * Mount the straps in the sides in the belt fittings on the back (B).
