Connect the Probe

The steps below explain how to safely connect the HDV700 Video-
Scope with the probe. Always switch the HDV700 power off when
making connections.

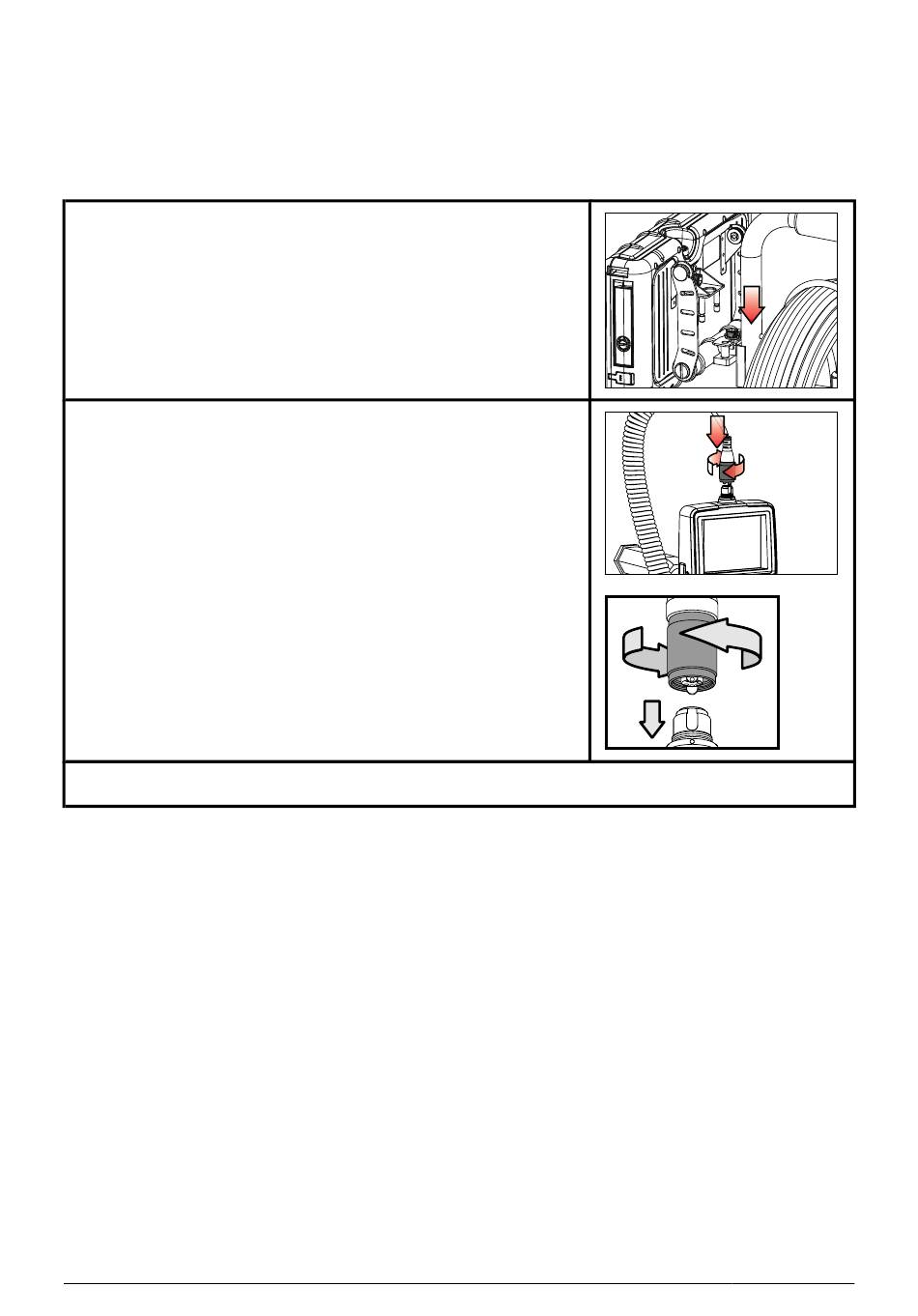

Attach the HDV700 to the reel.
Connect the probe to the HDV700 by first aligning
the white dot on the probe connector with the white
dot on the HDV700 connector and then pushing
the probe into the HDV700 cavity until it seats
firmly.
Tighten the collar nut to secure the connection. Do not overtighten.
