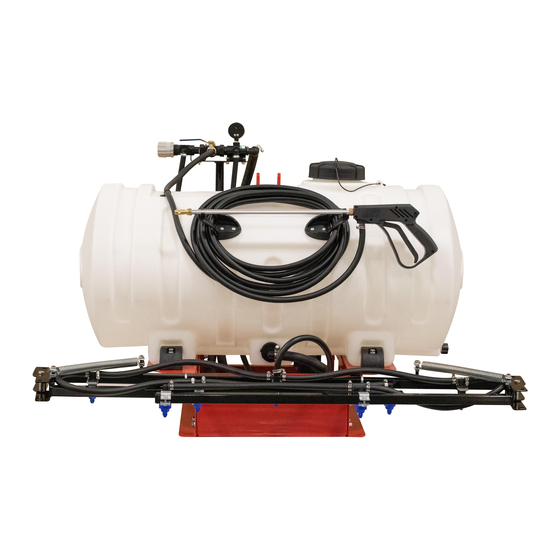

(65 Gallon 3 Point Sprayer w/Pump, Coupler & 7-Nozzle AIXR 0.3 Boom)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3 Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year
Commercial Usage: 90 Days.
OWNER'S MANUAL
Model: 3PT-65-6R-7 (5303252)
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195642
Category I
(12/22)]
Page 1
Advertisement
Table of Contents
Related Manuals for Fimco 3PT-65-6R-7
Summary of Contents for Fimco 3PT-65-6R-7
- Page 1 Warranted against manufacturer or workmanship defects from date of purchase with copy of receipt: www.fimcoindustries.com Homeowner Usage: One Year 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Commercial Usage: 90 Days. [5195642...
-
Page 2: Table Of Contents
Contents Technical Specs ..............2 Roller Pump Exploded View/Parts List ....... 9 Sprayer Contents ..............3 Roller Pump General Info ........... 9 Assembly Instructions ............4 - 5 Roller Pump Operations/Maintenance ......10 Operation & Calibration ............6 - 7 Trouble Shooting .............. 10 Maintenance &... -
Page 3: Sprayer Contents
Contents of Carton Owner’s Manual Tank/Frame/ Plumbing Pre-Assembly 6-Roller Pump (6500C) Tank Lid w/Lanyard & Coupler 7-Nozzle Boom Assembly Parts Bag (#5282456) Bolted 3PT Square Boom Parts Bag (#5282433) Page 3... -
Page 4: Assembly Instructions
Assembly Instructions: Your sprayer has been mostly assembled at the factory. Remove all parts from the box and follow the instructions on pages 4 and 5 to complete assembly of this unit. Step 1 Attach the two boom mounts to the frame, as shown, using (4) Flanged Hex Bolts and (4) Serrated Flanged Hex Nuts. - Page 5 Assembly Instructions (Cont.): Step 4 Install the lower hitch pins into the bracket lift arm. Place these pins through the holes in the pin plates, slip the lock washers on and thread the nuts onto the pin. Tighten securely. Step 5 Connect the 48”...
-
Page 6: Operation & Calibration
Information About the Sprayer Roller pumps are positive displacement pumps, which means that the entire solution being pumped must go somewhere or the pump will break. In this roller pumping system, solution is drawn from the tank and forced to a planned source, such as boom nozzles or handgun. -
Page 7: Maintenance & Tank Care
After use, fill the sprayer tank part way with water. Start the sprayer and allow the clear water to be pumped through the plumbing system and out through the spray nozzles. Refill the tank about half full with plain water and use FIMCO Tank Neutralizer and Cleaner and repeat cleaning instructions above. -
Page 8: Winter Storage
• EPDM O-Rings • Fore pressure to 150 p.s.i. • 1/4” port for pressure gauge • 3/4” NPT (M) inlet & (F) outlet connections Ref. # Fimco # Mfg. Part # Description CP23121-PP CP23121-PP Poly Body (3/4" NPT) CP23128-PP CP23128-PP Poly Body (1/2"... -
Page 9: Torque Chain Attachment
Torque Chain Attachment to a Roller Pump A torque chain, ‘S’ hook, nut and bolt are included in this assembly to secure your pump during operation. 1. Attach one end of the torque chain over the threaded stem of the bolt. 2. -
Page 10: Roller Pump Operations/Maintenance
Roller Pump Operation & Maintenance WARNING: Never pump corrosive or abrasive liquids Flush the Pump After Each Use as these will cause rapid wear or deterioration of the One of the common causes of faulty pump perfor- body, rotor, shaft and seals in the pump. The pump mance is “gumming”... -
Page 11: Sprayer Exploded Views
Exploded View: 3PT-65-6R-7 See Detail A Below (5303252) (Refer to Next Page for Part Numbers) See Boom Assembly Page 13 See Detail B Next Page Detail Boom Hose See Detail A-1 See Below Hose to Bypass To Spray Gun Hose... -
Page 12: Sprayer Parts List
Detail B Strainer Assembly (Refer Below Detail for Part Numbers) * * Only Detail Available in Complete Assembly See Detail B-1 Parts List: 3PT-65-6R-7 (5303252) Page 12... -
Page 13: Boom Exploded View And Parts List
Opposite Side has Typical Hardware Setup 7-Nozzle AIXR 0.3 Boom (with 3/8” Hose, 1” Sq. Tubing & AIXR11003VP Tips) See Hinge Detail Hinge Detail Elbow Cross Clamp Bag of 7: 5277730 Based on the minimum overlap required to obtain uniform distribution with 110°... -
Page 14: Sprayer Dimensions
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
