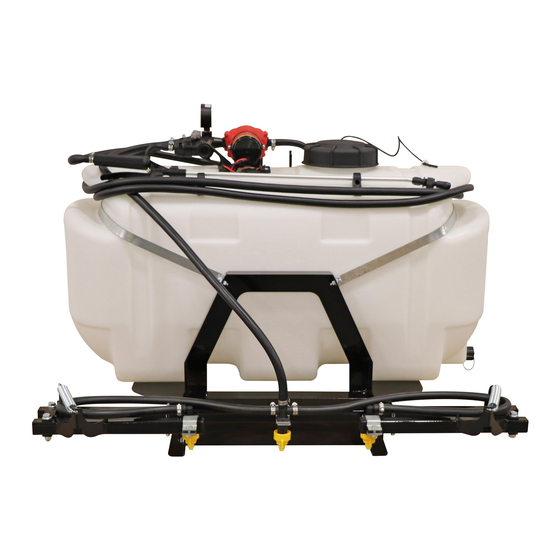

(30 Gallon, 12-Volt, Bolt-Together, 3 Point Sprayer w/3-Nozzle Boom)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: 30-3N-3PT-GS (5303678)
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
***IMPORTANT REMINDER***
IMPORTANT:
Occasionally check the strainer screen to ensure it is
clean and clear of any debris, especially if experiencing a
sudden loss of pressure. Strainer is located on the end of
the intake hose, inside of the tank. Use protective gear
when removing hose from tank and cleaning the strainer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195789
Category I
(08/22)]
Page 1
Advertisement
Related Manuals for Fimco 30-3N-3PT-GS
Summary of Contents for Fimco 30-3N-3PT-GS
- Page 1 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Commercial Usage: Sprayer and Pump-90 Days.
- Page 2 Calibration and Tank Care ............. 7 Sprayer Dimensions ............13 Maintenance and Winter Storage ......... 8 Warranty ................14 Model: 30-3N-3PT-GS (5303678) (30 Gallon, 12 Volt, Bolt-Together, 3 Point Sprayer w/3-Nozzle Boom) Technical Specifications • 30 Gallon Corrosion-Resistant Polyethylene Tank •...
- Page 3 Sprayer Contents: Owner’s Manual Tank/Plumbing Pre-Assembly Tank Straps 3-PT GS Sides 3-PT Front Frame Boom Mounts 3-PT Back Frame Tank Lid & Lanyard 3-Nozzle Bolted Boom, Nozzle Clamps (Bag of 3) & 3-Nozzle Harness (30” Spacing) Contents of Bolt Bag 5282586 Contents of Parts Bag # 5282583 Page 3...
- Page 4 Assembly Instructions: Your sprayer has been partially assembled at the factory. Make sure the contents of the sprayers carton match the items shown on page 3 of the manual. Remove all parts from the box and follow the instructions on pages 4 and 5 to complete assembly of this unit. Step 1 Install the lower hitch pins into the ends of the front frame weldment.
- Page 5 Assembly Instructions: Step 4 Next, attach the 3-nozzle bolted boom to the boom mounts, centering it on the unit. Secure using the (2) U-Bolts and (4) 5/16”-18 hex nuts. Make sure the outer boom members fold ‘backwards’. Step 5 With the boom secured to the boom mounts, the nozzle harness can now be attached.
- Page 6 IMPORTANT: Remove tank lid and be sure the tank is clean and free of any foreign material. Rinse tank out of any tank residue before filling with water to test. Manifold Valves CLOSED Testing the Sprayer NOTE: It is VERY important to test the sprayer with plain water before actual spraying is attempted.
- Page 7 Calibration For the safest and most efficient chemical application, you will need to calibrate your sprayer using the tip and speed charts. Once you have determined the proper speed and pressure settings, you will need to consult your chemical label for the amount of chemical to be added to the tank.
- Page 8 Fill the sprayer half way with clean water. Start the pump and allow the water to pump through the entire plumb- ing system and nozzles. Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner.
- Page 9 #5168836 DON’T • • Use to pump bleach. Clean and rinse your pump after each use with Fimco Tank Neutralizer. • Use to pump petroleum products such as diesel fuel, gaso- • Winterize your pump or sprayer by rinsing, draining and line or kerosene.
- Page 10 Troubleshooting Check for loose wiring Low flow may cause pump to surge Make sure the ON/OFF switch is on Spray Wand is adjusted to small or fine of a Check the fuse spray pattern Pump Check for defective pressure switch Check for defective pressure switch will not run: Check to see if connected to good...
- Page 11 Exploded View/Parts List: 30-3N-3PT-GS (5303678) Manifold Detail See Boom and Nozzle Har- ness exploded view and part numbers, next page. Page 11...
- Page 12 3-Nozzle Boom Assembly (with 3/8” Hose, 1” Sq. Tubing & AIXR11002VP Tips) Opposite Side has Typical See Hinge Detail Clamp Bag of 3: 5281996 Hinge Detail Elbow Cross • 110° wide, tapered flat spray angle with air induction tech- Based on the minimum overlap required to obtain uniform nology for better drift management •...
- Page 13 Approx. Dimensions: 35 19/32” 18 1/8” 61 11/16” 15 1/2” 27 9/16” 20” 26 13/16” Page 13...
- Page 14 WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
