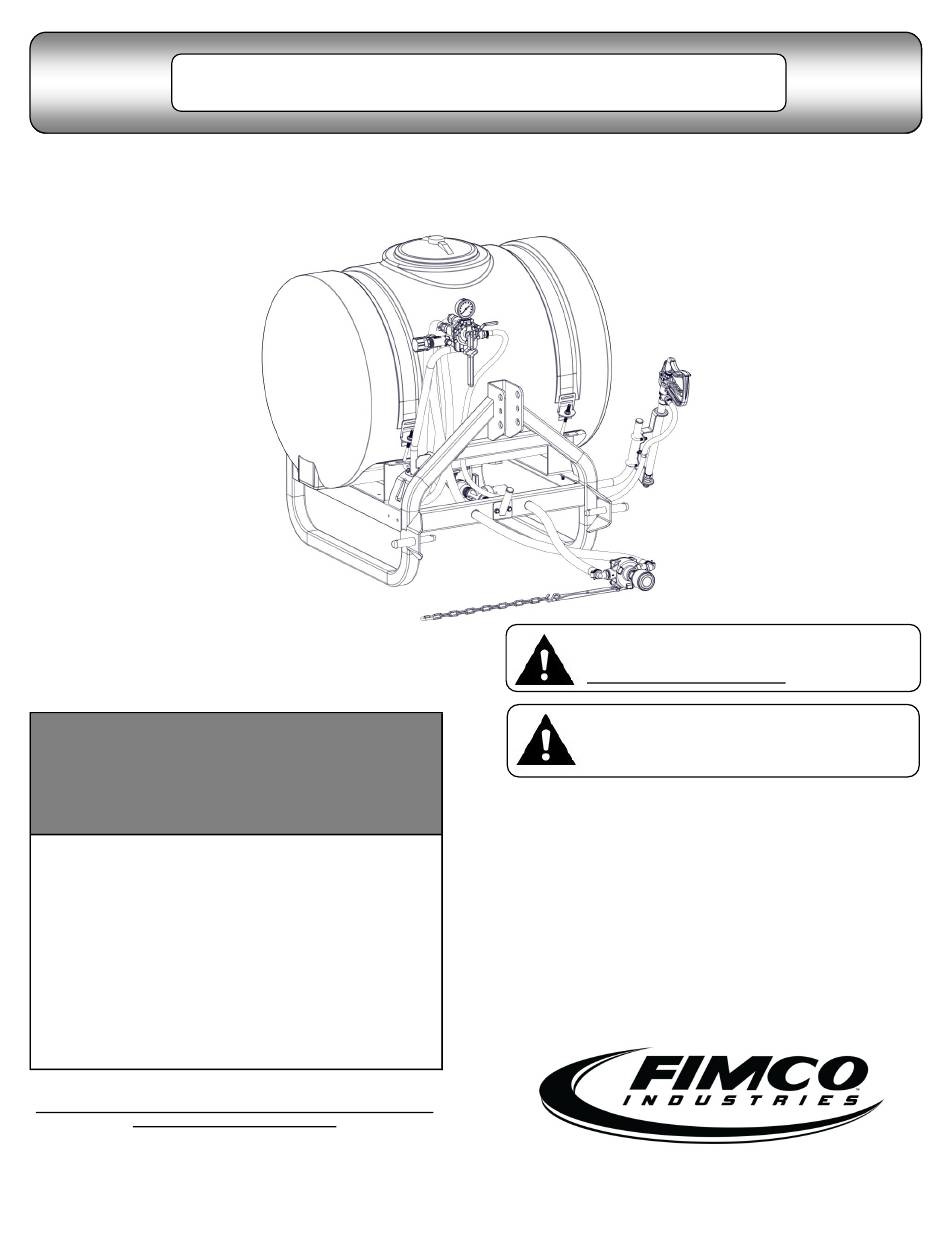

(110 Gallon 3-Point Sprayer w/Broadcast Boom Assembly & Handgun)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3 Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year
Commercial Usage: 90 Days.
OWNER'S MANUAL
Model: 3PT-110-6R-2BB (5303764)
(Pump & Coupler Included)
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195941
Category I, II or III
(07/23)]
Page 1
Advertisement
Table of Contents
Related Manuals for Fimco 3PT-110-6R-2BB
Summary of Contents for Fimco 3PT-110-6R-2BB
- Page 1 Warranted against manufacturer or workmanship defects from date of purchase with copy of receipt: www.fimcoindustries.com 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: One Year Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Commercial Usage: 90 Days.
-
Page 2: Table Of Contents
Dimensions ............... 14 Sprayer Exploded View ........... 8 - 10 Troubleshooting ............... 15 Sprayer Parts List ..............9 Warranty ................16 Model: 3PT-110-6R-2BB (5303764) (110 Gallon 3-Point Sprayer w/Broadcast Boom Assembly) (Pump & Coupler Included) Technical Specifications • 110 Gallon Polyethylene Tank •... -
Page 3: Sprayer And Boom Assembly Instructions
Assembly Procedure Most of the sprayer has been assembled at the factory. • Follow the steps on pages 3 & 4 to properly assemble the sprayer. 3/4” 3/4” Pump IS included with this Sprayer 2. Using a good quality thread sealant, thread the 3/4” fitting into both the inlet (IN) and outlet (OUT) sides of the pump. -
Page 4: Sprayer Info
Boom Assembly Procedure 1. Attach the Upright Boom Mount to the 3PT tube frame, using (2) hex bolts and (2) nuts. 2. Assemble the Broadcast Nozzle Mounts and Nozzles, as shown, if not already done. Mount the assembled nozzle mounts and nozzles to the upright boom mount. Slip (2) 1/2”... -
Page 5: Operation And Calibration
Testing the Sprayer Attach the sprayer to the tractor 3 point hitch. Mount the pump to the PTO and affix the torque chain. NOTE: It is important to test the sprayer with plain water before actual spraying is attempted. This will enable you to familiarize yourself and check for leaks without the possibility of losing any expensive chemicals. - Page 6 Broadcast spray nozzles are great for rough terrains, road side spraying, fence rows and other areas that are difficult to apply with a traditional boom. Gallons per Acre GAL/1000 Sq. Ft. Swath BROADCAST & TURF APPLICATIONS Width (Ft) @ 40 PSI Thread XT Model 0.32...
-
Page 7: Maintenance And Tank Care
After use, fill the sprayer tank part way with water. Start the sprayer and allow the clear water to be pumped through the plumbing system and out through the spray nozzles. Refill the tank about half full with plain water and use FIMCO Tank Neutralizer and Cleaner and repeat cleaning instructions above (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. -
Page 8: Winter Storage
When spring time comes and you are preparing your sprayer for the spray season, rinse the entire plumbing system out, clearing the lines of the antifreeze solution. Proper care and maintenance will prolong the life of your sprayer. Exploded View: 3PT-110-6R-2BB (5303764) Refer to the parts list next page for part numbers. -
Page 9: Sprayer Parts List
Parts List: 3PT-110-6R-2BB (5303764) Detail Hose Wrap Mount Page 9... - Page 10 Detail Intake Plumbing Detail Detail Boom Broadcast Nozzle Assemblies Page 10...
-
Page 11: High Pressure Spray Gun Info
PRO SERIES Long Range Ergonomic Handguns Technical Specifications: • Adjustable Spray Pattern • No Drip Shut Off • Aluminum Barrel • Convenient Hanger Hole • 600 PSI, 8 GPM • Chemical Resistant Construction • 38’ Horizontal, 27’ Vertical Maximum Spray Distance • Integrated Trigger Lock •... -
Page 12: Roller Pump Gen. Info/Operations/Maintenance
Roller Pump General Safety Information Use a pressure relief device on the discharge side of the Make certain that the power source conforms to the pump to prevent damage from pressure buildup when requirements of your equipment. the pump discharge is blocked or otherwise closed and Provide adequate protection in guarding around the the power source is still running. -
Page 13: Pressure Relief Valve Exploded View/Parts List
Piston Type Pressure Relief/Regulating Valves Bypasses excess fluid. Adjustable to maintain control of line pressure at any pressure within the valve operating range. Selected pressure setting firmly held in place by locknut. Extra large passages to handle large flows. • Polypropylene with stainless steel spring •... -
Page 14: Dimensions
Approx. Dimensions 51 15/32” 44” 30” 45 1/8” 48 11/16” Page 14... -
Page 15: Troubleshooting
Troubleshooting Symptom Probable Cause(s) Corrective Action Leak in suction line Check hose and fittings for leaks and correct Obstruction in suction line Inspect hose for debris or loose inner liner in hose Suction strainer clogged Clean strainer Suction hose sucked to Cut a notch or "V"... -
Page 16: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Inc. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
