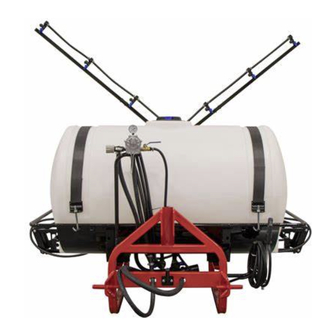

Model: 3PT-300-NR-1725FX5 (5303773)
(300 Gallon 3-Point Sprayer w/1725FX5 Boom Kit & Handgun)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3 Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year
Commercial Usage: 90 Days.
OWNER'S MANUAL
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195955
Category I, II or III
(10/23)]
Page 1
Advertisement
Table of Contents
Related Manuals for Fimco 3PT-300-NR-1725FX5
Summary of Contents for Fimco 3PT-300-NR-1725FX5
- Page 1 Warranted against manufacturer or workmanship defects from www.fimcoindustries.com date of purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Homeowner Usage: One Year [5195955 (10/23)] Commercial Usage: 90 Days.
-
Page 2: Table Of Contents
High Pressure Spray Gun Info ..........10 Boom Exploded Views and Parts Lists ....... 16 - 17 Pressure Relief Valve Exploded View/Parts List ....10 Warranty ................18 Model: 3PT-300-NR-1725FX5 (5303773) (300 Gallon 3-Point Sprayer w/1725FX5 Boom Kit & Handgun) Technical Specifications •... -
Page 3: Sprayer And Boom Assembly Instructions
Assembly Procedure Most of the sprayer has been assembled at the factory. • Follow the steps on pages 3 through 6 to properly assemble the sprayer. Install the hose wrap mount (handgun/hose bracket will already be attached to the mount) to the sprayer frame using (2) bolts and nuts. - Page 4 Assembly Procedure 3/4” 1” Pump IS NOT included with this Sprayer - for Reference ONLY 5. Using a good quality thread sealant, thread 1” fitting The roller pump IS NOT included with the assembly. into the inlet (IN) and 3/4” fitting into the outlet (OUT) Attach the adapter, the torque bracket, torque chain, S- sides of the pump.
- Page 5 Boom Assembly Procedure 1. Mount the MX5 Center Section to the sprayer frame, using (2) saddle bases, (2) saddle mount clamps, (4) bolts and (4) nuts. 2. Attach the LH side FX5 Wing Assembly to the center section, using (2) bolts and (2) nuts. Then insert the carriage bolt and secure to the center section with the 2 jam nuts as shown.
- Page 6 Boom Assembly Procedure 4. Attach the FX5 LH Boom Extension with (2) carriage bolts and nuts. Then attach 6-Nozzle Harness to the LH wing assembly using (6) Phillips truss head locking screws. Then find the end of the hose that is con- nected to the back of the control valve (as indicated below) and slip a hose clamp from the parts bag on to the end of the hose, then with a twisting motion attach to the HB Nozzle Dry Boom Adapter on the end of the harness.
-
Page 7: Sprayer Operation
Operation Instructions Information About the Sprayer Roller pumps are positive displacement pumps, which means that the entire solution being pumped must go somewhere or the pump will break. In this roller pumping system, solution is drawn from the tank and forced to a planned source, such as boom noz- zles or handgun. -
Page 8: Calibration
Tip Information Important note about tips: When you refer to the rate charts found in this owners manual, these rates are based on water. Please read this tip selection section carefully before attempting to operate your boom assembly. The selection of proper tips for the boom is determined by the gallon per acre (GPA) requirement which is specified on the chemi- cal label. -
Page 9: Maintenance, Tank Care And Winter Storage
After use, fill the sprayer tank part way with water. Start the sprayer and allow the clear water to be pumped through the plumbing system and out through the spray nozzles. Refill the tank about half full with plain water and use FIMCO Tank Neutralizer and Cleaner and repeat cleaning instructions above (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. -
Page 10: High Pressure Spray Gun Info
PRO SERIES Long Range Ergonomic Handguns Technical Specifications: • Adjustable Spray Pattern • No Drip Shut Off • Aluminum Barrel • Convenient Hanger Hole • 600 PSI, 8 GPM • Chemical Resistant Construction • 38’ Horizontal, 27’ Vertical Maximum Spray Distance •... -
Page 11: Teevalve Control Valve Info
TeeValve Control Valve Model: AA17L (5143295) Model AA17L, used for selective control of 3-section boom sprayers at pressures up to 300 PSI. • Use to open any of three boom sections lines in any desired combination. • Raise lever to open, lower lever to close the valve without changing the indexed position. -
Page 12: Sprayer Exploded View
See Detail Hose Wrap Mount Plumbing Detail See Valve Detail Hoses to Booms Exploded View: 3PT-300-NR-1725FX5 (5303773) Refer to the parts list Page 14 for part numbers. Hose to Handgun See Agitator Detail Hose to Hose to Bypass Valve Assembly... - Page 13 Bypass Hose From Pressure Regulator Strainer Detail ** Available ONLY in Complete Assembly Detail Intake Valve Detail LH Boom Hose Center Boom Hose RH Boom Hose Bypass Hose Handgun Hose Hose from Pump Page 13...
-
Page 14: Sprayer Parts List
Parts List: 3PT-300-NR-1725FX5 (5303773) Intake Hose Detail Hose Wrap Mount to back of TeeValve Agitator Detail Intake Hose from pump Page 14... -
Page 15: Sprayer Dimensions
Approx. Dimensions 96 1/16” 59 31/32” 86 31/32” 53 15/16” Boom Width Folded Out: 324 3/16” Page 15... -
Page 16: Boom Exploded Views And Parts Lists
1725FX5 (5282881) Boom Exploded View/Parts List See Nozzle Harness Breakdowns Next Page See Detail E See Detail D See Detail B See Detail C See Detail A See Detail C See Detail B See Detail A See Detail D See Detail E Page 16... - Page 17 1725FX5 Nozzle Harnesses Ref. #15 - MX5 LH Boom Harness (#5282863) Ref. #6 - MX5 Center Harness (#5282862) Ref. #21 - MX5 RH Boom Harness (#5282864) Typical Nozzle Assembly Configurations Nozzle Nozzle Assembly #5002523 #5002522 #5002524 The AIXR TeeJet Flat Spray Tip offers the benefits of obtaining excellent drift resistance without compromising spray coverage. Tips producing very coarse droplets do minimize drift but do not provide the same surface coverage as tips that produce smaller drop- lets.
-
Page 18: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Inc. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
