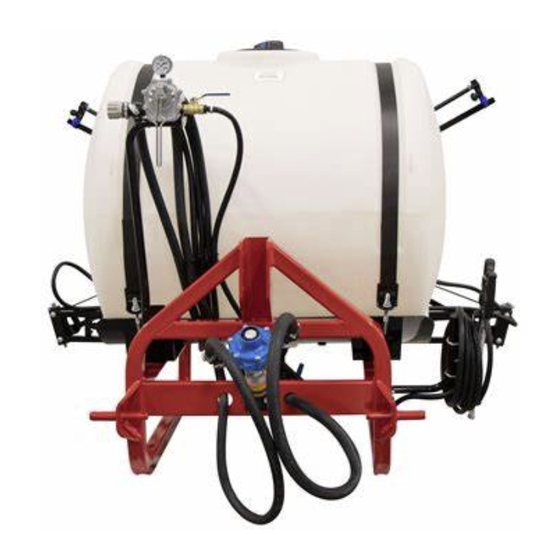

Model: 3PT-200-8R-1225FX4 (5303767)
(200 Gallon 3-Point Sprayer w/1225FX4 Boom Kit, Handgun, Pump & Coupler)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3 Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year
Commercial Usage: 90 Days.
OWNER'S MANUAL
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195947
Category I, II or III
(10/23)]
Page 1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Fimco 3PT-200-8R-1225FX4
Summary of Contents for Fimco 3PT-200-8R-1225FX4
- Page 1 Warranted against manufacturer or workmanship defects from www.fimcoindustries.com date of purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Homeowner Usage: One Year [5195947 (10/23)] Commercial Usage: 90 Days.
-
Page 2: Table Of Contents
Roller Pump Exploded View/Parts List ........ 10 Sprayer Dimensions ............19 Roller Pump Gen. Info/Operations/Maintenance ....11 Warranty ................20 Roller Pump Troubleshooting ..........12 Model: 3PT-200-8R-1225FX4 (5303767) (200 Gallon 3-Point Sprayer w/1225FX4 Boom Kit, Handgun, Pump & Coupler) Technical Specifications •... -
Page 3: Sprayer And Boom Assembly Instructions
Assembly Procedure Most of the sprayer has been assembled at the factory. • Follow these steps to properly assemble the sprayer. Install the hose wrap mount (handgun/hose bracket will already be attached to the mount) to the sprayer frame using (2) bolts and nuts. 2. - Page 4 Assembly Procedure 3/4” 1” Pump IS included with this Sprayer - for Reference ONLY 5. Using a good quality thread sealant, thread 1” fitting The roller pump IS included with the assembly. Attach into the inlet (IN) and 3/4” fitting into the outlet (OUT) the adapter, the torque bracket, torque chain, S-hook, sides of the pump.
- Page 5 Boom Assembly Procedure 1. Mount the MX4 Center Section to the sprayer frame, using (2) saddle bases, (2) saddle mount clamps, (4) bolts and (4) nuts. 2. Attach the LH side MX4 Wing Assembly to the center section, using (2) bolts and (2) nuts. Repeat for RH side MX 4 Wing Assembly.
- Page 6 Boom Assembly Procedure 4. Attach the MX4 LH Boom Harness to the LH nozzle wing assembly using (4) Phillips truss head locking screws. Then find the end of the hose that is connected to the back of the control valve (as indicated below) and slip a hose clamp from the parts bag on to the end of the hose, then with a twisting motion attach to the HB Nozzle Dry Boom Adapter on the end of the harness.
-
Page 7: Sprayer Operation
Operation Instructions Information About the Sprayer Roller pumps are positive displacement pumps, which means that the entire solution being pumped must go somewhere or the pump will break. In this roller pumping system, solution is drawn from the tank and forced to a planned source, such as boom noz- zles or handgun. -
Page 8: Calibration
Tip Information Important note about tips: When you refer to the rate charts found in this owners manual, these rates are based on water. Please read this tip selection section carefully before attempting to operate your boom assembly. The selection of proper tips for the boom is determined by the gallon per acre (GPA) requirement which is specified on the chemi- cal label. -
Page 9: Maintenance, Tank Care And Winter Storage
After use, fill the sprayer tank part way with water. Start the sprayer and allow the clear water to be pumped through the plumbing system and out through the spray nozzles. Refill the tank about half full with plain water and use FIMCO Tank Neutralizer and Cleaner and repeat cleaning instructions above (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. -
Page 10: High Pressure Spray Gun Info
PRO SERIES Long Range Ergonomic Handguns Technical Specifications: • Adjustable Spray Pattern • No Drip Shut Off • Aluminum Barrel • Convenient Hanger Hole • 600 PSI, 8 GPM • Chemical Resistant Construction • 38’ Horizontal, 27’ Vertical Maximum Spray Distance •... -
Page 11: Roller Pump Gen. Info/Operations/Maintenance
Roller Pump General Safety Information 1. Use a pressure relief device on the discharge side of the 7. Make certain that the power source conforms to the pump to prevent damage from pressure buildup when requirements of your equipment. the pump discharge is blocked or otherwise closed and 8. -
Page 12: Roller Pump Troubleshooting
Troubleshooting Symptom Probable Cause(s) Corrective Action Leak in suction line Check hose and fittings for leaks and correct Obstruction in suction line Inspect hose for debris or loose inner liner in hose Suction hose sucked to Cut a notch or "V" in end of suction hose Pump Does Not Prime bottom or side of tank Rollers stuck in pump... -
Page 13: Troubleshooting
Troubleshooting Symptom Probable Cause(s) Corrective Action Leak in suction line Check hose and fittings for leaks and correct Obstruction in suction line Inspect hose for debris or loose inner liner in hose Suction strainer clogged Clean strainer Suction hose sucked to Cut a notch or "V"... -
Page 14: Sprayer Exploded View
See Detail Hose Wrap Mount Plumbing Detail See Valve Detail Hoses to Booms Exploded View: 3PT-200-8R-1225FX4 (5303767) Refer to the parts list Page 15 for part numbers. Hose to Handgun See Agitator Detail Hose to Hose to Bypass Valve Assembly... - Page 15 Bypass Hose From Pressure Regulator Strainer Detail Detail Intake Valve Detail LH Boom Hose Center Boom Hose RH Boom Hose Bypass Hose Handgun Hose Hose from Pump Page 15...
-
Page 16: Sprayer Parts List
Parts List: 3PT-200-8R-1225FX4 (5303767) Intake Hose Detail Hose Wrap Mount to back of TeeValve Agitator Detail Intake Hose from pump Page 16... -
Page 17: Boom Exploded Views And Parts Lists
1225FX4 Boom Exploded View/Parts List See Nozzle Harness Breakdowns Next Page 1225FX4 Boom Kit (5282901) See Detail C See Detail B See Detail A See Detail A See Detail B See Detail C Page 17... - Page 18 1225FX4 Nozzle Harnesses Ref. #10 - MX4 LH Boom Harness (#5282574) Ref. #7 - MX4 Center Harness (#5282902) Ref. #12 - MX4 RH Boom Harness (#5282575) Typical Nozzle Assembly Configurations Nozzle Nozzle Assembly #5002523 #5002522 #5002524 The AIXR TeeJet Flat Spray Tip offers the benefits of obtaining excellent drift resistance without compromising spray coverage. Tips producing very coarse droplets do minimize drift but do not provide the same surface coverage as tips that produce smaller drop- lets.
-
Page 19: Sprayer Dimensions
Approx. Dimensions 58 5/32” 54 7/16” 74 1/8” Boom Width Folded Out: 224 5/16” Page 19... -
Page 20: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Inc. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
