General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point Sprayer.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

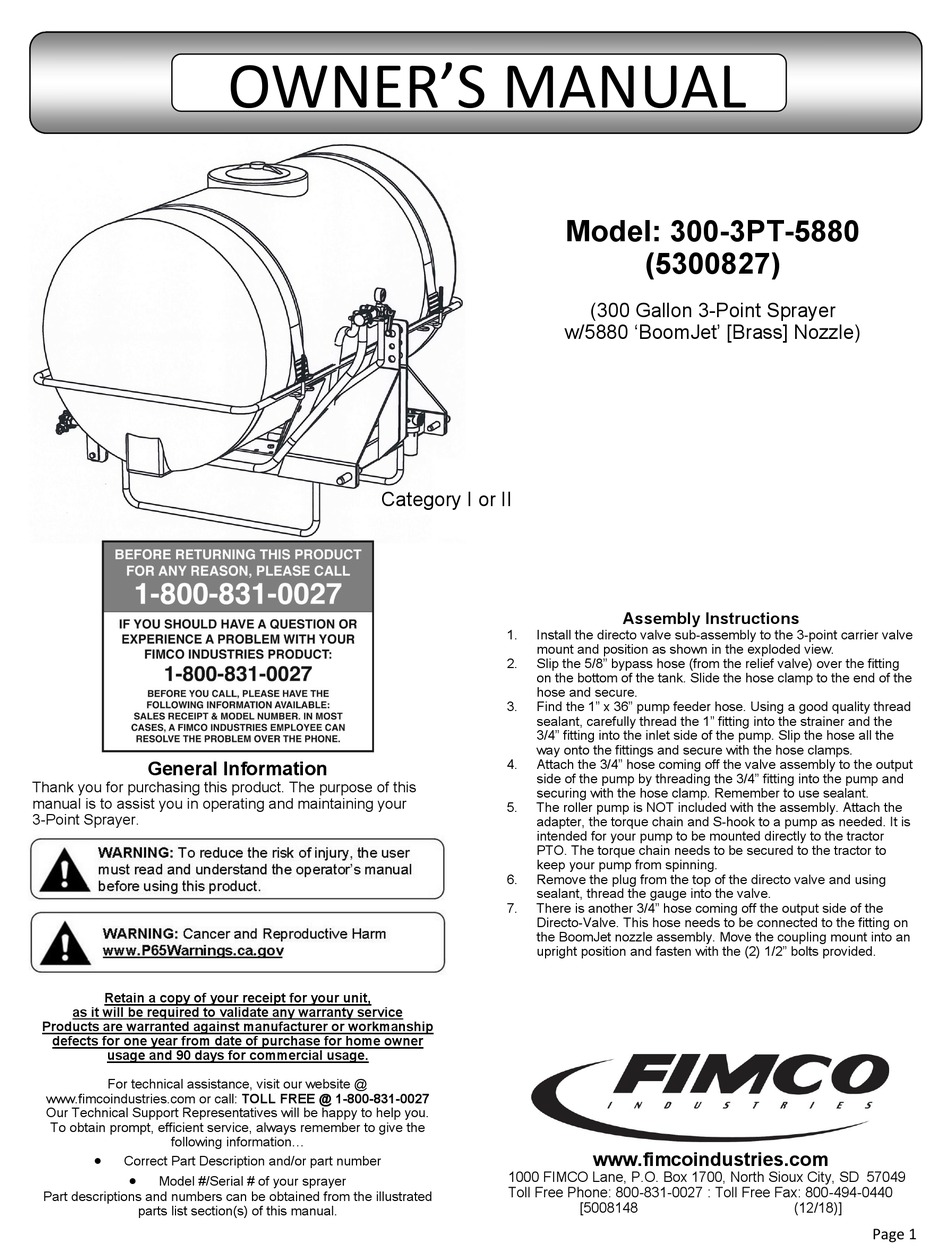

OWNER'S MANUAL
Category I or II
Model: 300-3PT-5880
(5300827)
(300 Gallon 3-Point Sprayer
w/5880 'BoomJet' [Brass] Nozzle)
Assembly Instructions
1.
Install the directo valve sub-assembly to the 3-point carrier valve
mount and position as shown in the exploded view.
2.
Slip the 5/8" bypass hose (from the relief valve) over the fitting
on the bottom of the tank. Slide the hose clamp to the end of the
hose and secure.
3.
Find the 1" x 36" pump feeder hose. Using a good quality thread
sealant, carefully thread the 1" fitting into the strainer and the
3/4" fitting into the inlet side of the pump. Slip the hose all the
way onto the fittings and secure with the hose clamps.
4.
Attach the 3/4" hose coming off the valve assembly to the output
side of the pump by threading the 3/4" fitting into the pump and
securing with the hose clamp. Remember to use sealant.
5.
The roller pump is NOT included with the assembly. Attach the
adapter, the torque chain and S-hook to a pump as needed. It is
intended for your pump to be mounted directly to the tractor
PTO. The torque chain needs to be secured to the tractor to
keep your pump from spinning.
6.
Remove the plug from the top of the directo valve and using
sealant, thread the gauge into the valve.
7.
There is another 3/4" hose coming off the output side of the
Directo-Valve. This hose needs to be connected to the fitting on
the BoomJet nozzle assembly. Move the coupling mount into an
upright position and fasten with the (2) 1/2" bolts provided.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5008148
(12/18)]
Page 1
