Clenergy PV-ezRack SolarTerrace Eco Installation Manual
Hide thumbs
Also See for PV-ezRack SolarTerrace Eco:
- Installation manual (16 pages) ,
- Installation manual (14 pages)
Advertisement
Quick Links
Content
1. Production Introduction ............................................................................ 2
2. Tools & Components ............................................................................... 3
3. System Overview ..................................................................................... 6
4. Installation Instructions ............................................................................ 8
Designed
by：
Checked by：
Approved
by：
PV-ezRack
SolarTerrace Eco
Installation Guide
Version：
V1.0
Reviewed
by：
Advertisement
Related Manuals for Clenergy PV-ezRack SolarTerrace Eco
Summary of Contents for Clenergy PV-ezRack SolarTerrace Eco
- Page 1 PV-ezRack SolarTerrace Eco Installation Guide Content 1. Production Introduction ................2 2. Tools & Components ................3 3. System Overview ..................6 4. Installation Instructions ................8 Designed Version： V1.0 by： Reviewed Checked by： by： Approved by：...
-
Page 2: Production Introduction

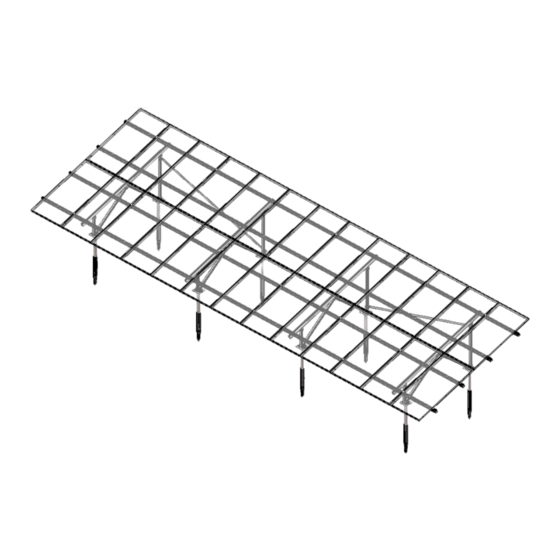

1. Production Introduction Clenergy PV-ezRack®SolarTerrace Eco (hereinafter referred to as ST Eco) is a pre-assembled ground PV-Module mounting system, which is suitable for large- scale commercial installation and multi-purpose installation.ST Eco has been developed as a mounting system for various PV-module. Innovative and unique Rail with M Module is convenient and helps to improve the installation precision. -
Page 3: Tools & Components
Please consult system installation personnel about installation of electronic parts. 2.2 Components 3 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China... - Page 4 Connector for Rectangular Tube 2.3 Installation Precautions Stainless Steel Fastener Installation Precautions 4 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
- Page 5 Please refer to safe torques defined in this guide as shown in below figure. In case power tools are required, Clenergy recommends the use of low speed only. High speed and impact drivers increase the risk of bolt galling (deadlock) If deadlock occurs and you need to cut fasteners please make sure that there is no load on the fastener before you cut it.
-
Page 6: System Overview
4) Splice for TW Rail 5) Support 6) Angle AL 7) Connector for Rectangular Tube 6 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China... - Page 7 3） Distance between the two adjacent supports：L1 according to engineering drawings 4） Distance between two legs：L3 according to engineering drawings 7 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China sales@clenergy.com.cn...
-
Page 8: Installation Instructions
±20mm.l. as shown Figure2-2. Figure 2-2 8 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China sales@clenergy.com.cn... - Page 9 Plates to make them in a same horizontal level, as Figure 6 shown in Figure 6. 9 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
- Page 10 Unlock bolts adjust position, necessary, as shown in Figure 8. 10 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China sales@clenergy.com.cn...
- Page 11 4.3.3 Place the rails one by one on the planned position. 11 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
- Page 12 Recommended Torque: M8: 18~20 N•m Figure 11 12 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
- Page 13 Recommend torque: Figure 14 M 8 bolt 18~20N.m 13 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China sales@clenergy.com.cn...
- Page 14 Ensure the PV modules aligned in both horizontal and vertical directions Figure 16 14 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
- Page 15 Figure 18. Please recheck all bolts, and fasten them tightly. Figure 18 15 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
- Page 16 Grounding Clip = number of number of PV Module +1=5+1=6 Figure 20 16 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
- Page 17 Grounding Lug slightly within 5N.m as shown in Figure 22. 17 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
- Page 18 One clamp can clamp 4 wires. Figure 23 18 / 18 Clenergy China Telephone +86 592 311 0088 999-1009 Min'an Rd, Huoju Hi-tech Ind. Dev. Zone Facsimile +86 592 599 5028 Xiang'an District 361101, Xiamen, Fujian, China...
