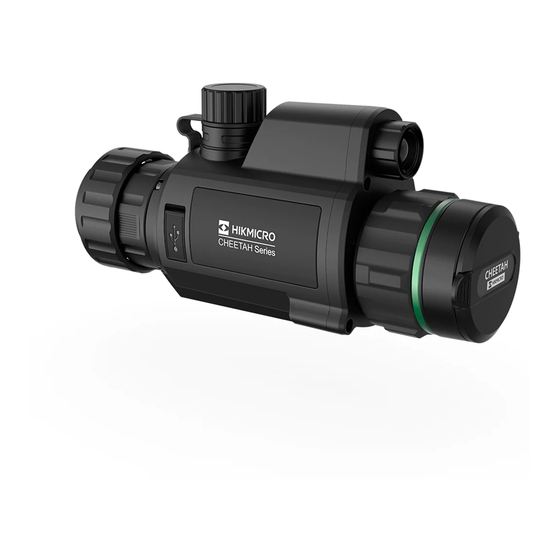

Hikmicro CHEETAH LRF Series User Manual

Digital night vision monocular
Hide thumbs
Table of Contents

Advertisement

Quick Links

Digital Night Vision Monocular
HIKMICRO CHEETAH LRF Series
User Manual
Contact Us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHEETAH LRF Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hikmicro CHEETAH LRF Series

Summary of Contents for Hikmicro CHEETAH LRF Series

  • Page 1 Digital Night Vision Monocular HIKMICRO CHEETAH LRF Series User Manual Contact Us...

  • Page 2: Table Of Contents

    Digital Night Vision Monocular User Manual Table of Contents Chapter 1 Overview ........................1 1.1 Device Description ......................1 1.2 Main Function ........................1 1.3 Appearance ........................1 Chapter 2 Preparation ........................3 2.1 Cable Connection ......................3 2.2 Install Adapter ........................3 2.3 Remove Adapter .......................
  • Page 3 Digital Night Vision Monocular User Manual 6.3 Record Video........................14 6.4 Prerecord Video ......................14 6.5 Export Files ........................15 Chapter 7 Client Software Connection ..................16 Chapter 8 Language Settings ......................17 Chapter 9 Unit Settings ........................ 18 Chapter 10 Maintenance ......................19 10.1 View Device Information ....................

  • Page 4: Chapter 1 Overview

    ● Client Software Connection: The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight App after being connected to your phone via hotspot. ● Zeroing: The reticle helps you to aim at the target fast and accurately. See Zeroing.
  • Page 5 Digital Night Vision Monocular User Manual Figure 1-1 Device Appearance Table 1-1 Buttons and Components Description Function Lens Cover Protect the lens. Focus Ring Adjust the focus to find clear targets. ● Press: standby mode/wake up device Power Key ● Hold: power on/off ●...

  • Page 6: Chapter 2 Preparation

    Digital Night Vision Monocular User Manual Chapter 2 Preparation 2.1 Cable Connection Connect the device and power adaptor with a type-C cable to power on the device. Alternatively, connect the device and PC to export files. Steps 1. Lift the cable interface cover. 2.

  • Page 7: Remove Adapter

    Digital Night Vision Monocular User Manual Note The selectable types of the adapter are 38, 40, 50, and 62. 2.3Remove Adapter Steps 1. Rotate only the locking ring clockwise, and make sure the device or other parts of the adapter are not rotated or moved.

  • Page 8: Power On/Off

    Digital Night Vision Monocular User Manual Figure 2-4 Open Battery Cover 2. Insert the battery into the battery compartment with the positive mark inward. Figure 2-5 Install Battery 3. Turn the battery cover clockwise to tighten it. Figure 2-6 Close Battery Cover Note Remove the battery from the battery compartment if the device is not used for a long time.

  • Page 9: Menu Description

    Digital Night Vision Monocular User Manual When the battery is sufficiently charged, hold for about 2 seconds to power on the device. Power Off When the device is turned on, hold for 2 seconds to power off the device. Auto Power Off Set the auto power off time for your device, and then the device will automatically shut down as the set time.

  • Page 10: Chapter 3 Image Settings

    Digital Night Vision Monocular User Manual Chapter 3 Image Settings 3.1 Adjust Focus Steps 1. Power on the device. 2. Hold the device and make sure the eyepiece covers your eye. 3. Adjust the focus ring until the image is clear. Figure 3-1 Adjust Focus Note When focusing, do not touch the surface of lens to avoid smearing the lens.

  • Page 11: Set Display Mode

    Digital Night Vision Monocular User Manual the overexposed images, and it can improve the image effect in night mode by adjusting the brightness of the supplement light. In menu mode, rotate the wheel to select and press the wheel to enable this function. 3.5 Set Display Mode You can select different display modes in different scenes.

  • Page 12: Calibrate Image

    Digital Night Vision Monocular User Manual 5. Rotate the wheel to change the hour, minute, second, year, month, or day selected, and press the wheel again to finish the setting. 6. Hold the wheel to save settings and exit. 3.7 Calibrate Image The device can adjust the thermal view to make it consistent with the optical view.
  • Page 13 Digital Night Vision Monocular User Manual 4. Hold the wheel to save the settings and exit. Result The brand logo is displayed at the right bottom of the image and video.

  • Page 14: Chapter 4 Zeroing

    Digital Night Vision Monocular User Manual Chapter 4 Zeroing 4.1 Set Reticle You can select a reticle in the current reticle group, and set parameters such as type, color, and position for the reticle. Steps 1. In the view mode, hold the wheel to show the menu. 2.

  • Page 15: Correct Reticle

    Digital Night Vision Monocular User Manual 4.2 Correct Reticle Correcting the reticle can help you aim at the target with high accuracy by marking the offset between the big reticle and small reticle. Steps 1. In the view mode, hold the wheel to show the menu. 2.

  • Page 16: Chapter 5 Measure Distance

    Digital Night Vision Monocular User Manual Chapter 5 Measure Distance The device can detect the distance between the target and the observation position with laser. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected.

  • Page 17: Chapter 6 Picture And Video

    Digital Night Vision Monocular User Manual Chapter 6 Picture and Video You can manually record video or capture picture when displaying live view. 6.1 Capture Picture In the main live view interface, press and wheel at the same time to capture images. Note When capturing succeeds, the image freezes for 1 second and a prompt shows on the display.

  • Page 18: Export Files

    Before You Start Install HIKMICRO Sight on your mobile phone. Steps 1. Open HIKMICRO Sight and connect your device to the app. See Client Software Connection. 2. Tap Media to access device albums. Figure 6-4 Access Device Albums 3. Tap Local or Device to view the photos and videos.
  • Page 19 Digital Night Vision Monocular User Manual 4. Tap to select a file, and tap Download to export the file to your local phone albums. Note ● Go to Me → About → User Manual on the app to see more detailed operations. ●...
  • Page 20 Digital Night Vision Monocular User Manual ● When you connect the device to PC for the first time, it installs the drive program automatically.

  • Page 21: Chapter 7 Client Software Connection

    Digital Night Vision Monocular User Manual Chapter 7 Client Software Connection Connect the device to the HIKMICRO Sight App via hotspot, then you can capture picture, record video, or configure parameters on your phone. Steps 1. Hold the wheel to show the menu of device.

  • Page 22: Chapter 8 Language Settings

    Digital Night Vision Monocular User Manual Chapter 8 Language Settings You can select the device language in this function. Steps 1. Hold the wheel to show the menu. 2. Rotate the wheel to select , and press the wheel to enter the language configuration interface.

  • Page 23: Chapter 9 Unit Settings

    Digital Night Vision Monocular User Manual Chapter 9 Unit Settings You can switch the unit for the distance measurement function and the reticle function. Steps 1. Hold the wheel to show the menu. 2. Rotate the wheel to select , and press the wheel to switch the unit. Yard and m are selectable.

  • Page 24: Chapter 10 Maintenance

    Digital Night Vision Monocular User Manual Chapter 10 Maintenance This part introduces the operation of checking device information, upgrading device, and restoring to defaults, etc. 10.1 View Device Information Steps 1. Hold the wheel to show the menu of device. 2.

  • Page 25: Chapter 11 Frequently Asked Questions

    Digital Night Vision Monocular User Manual Chapter 11 Frequently Asked Questions 11.1 Why is the monitor off? Check whether the device is off-battery. Connect the device to power supply and turn it on to check the monitor. 11.2 The image is not clear, how to adjust it? Adjust the focus ring until the image is clear.

  • Page 26: Safety Instruction

    Digital Night Vision Monocular User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations Use of the product must be in strict compliance with the local electrical safety regulations. Symbol Conventions The symbols that may be found in this document are defined as follows.
  • Page 27 Digital Night Vision Monocular User Manual Battery ● Improper use or replacement of the battery may result in explosion hazard. Replace with the same or equivalent type only. ● The battery type is 18650 with the protection board. The battery size is 19 mm × 70 mm. The rated voltage is 3.6 VDC, and the battery capacity is 3200 mA.
  • Page 28 Digital Night Vision Monocular User Manual Laser When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam, or it may burn out. The laser radiation emitted from the device can cause eye injuries, burning of skin or inflammable substances.

  • Page 29: Legal Information

    INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 30 PURCHASE OR USE OF THIS PRODUCT. PLEASE NOTE THAT YOU MAY HAVE TO APPLY FOR PERMITS, CERTIFICATES, AND/OR LICENSES BEFORE ANY PURCHASING, SELLING, MARKETING AND/OR USING OF THE PRODUCT. HIKMICRO SHALL NOT BE LIABLE FOR ANY SUCH ILLEGAL OR IMPROPER PURCHASING, SELLING, MARKETING, AND END USES AND ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES ARISING THEREOF.

  • Page 31: Regulatory Information

    Digital Night Vision Monocular User Manual Regulatory Information These clauses apply only to the products bearing the corresponding mark or information. FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 32 Digital Night Vision Monocular User Manual Fi 2.4 GHz (2.4 GHz to 2.4835 GHz), 20 dBm. This product and - if applicable - the supplied accessories too are marked with "UKCA" and comply therefore with the following directives: Radio Equipment Regulations 2017, Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
  • Page 33 Digital Night Vision Monocular User Manual (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
  • Page 34 Website: www.hikmicrotech.com E-mail: support@hikmicrotech.com UD32817B...
