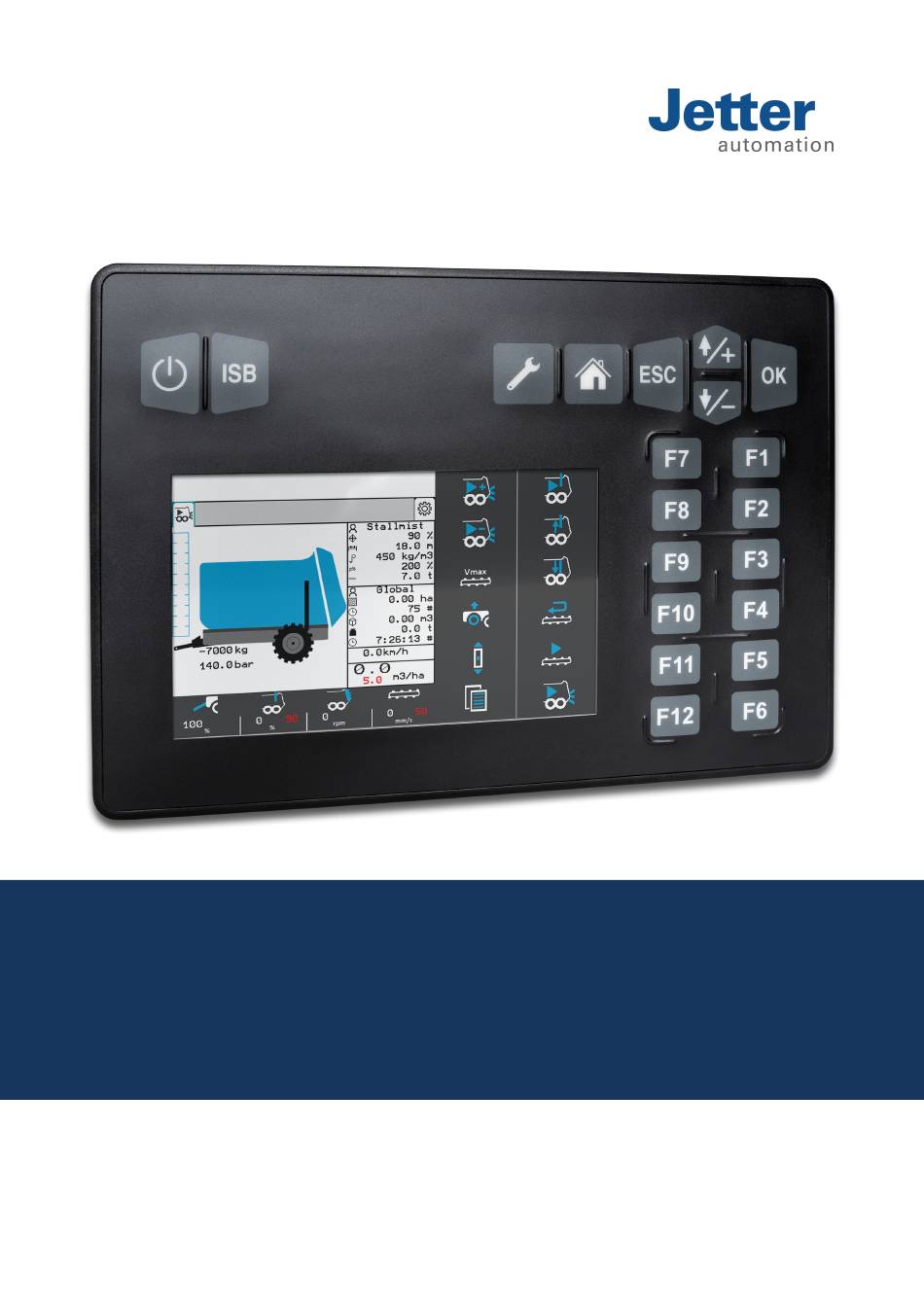

- Page 1 User Manual JetVewMobile 206 60886309_01 We automate your success.
- Page 2 This document has been compiled by Jetter AG with due diligence based on the state of the art as known to them. Any revisions and technical advancements of our products are not automatically made available in a revised document. Jetter AG shall not be liable for any errors either in form or content, or for any missing updates, as well as for any damage or detriment resulting from such failure.
-
Page 3: Table Of Contents
4.10 Inputs/outputs according to ISO11786:1995 ................ 15 4.11 Acoustic signal generator ...................... 16 4.12 Real-time clock .......................... 17 5 Mechanical installation ........................ 18 Allowed mounting orientations.................... 19 6 Electrical connection........................ 20 8-pin M12 connector (male)....................... 21 8-pin M12 connector (female).................... 21 User Manual – JetVewMobile 206... - Page 4 9 Maintenance ............................ 38 Repairs ............................ 38 Return and disposal........................ 38 Storage and shipment ....................... 39 10 Service ............................... 40 10.1 Customer service........................ 40 11 Spare parts and accessories ...................... 41 11.1 Accessories .......................... 41 User Manual – JetVewMobile 206...
-
Page 5: Introduction
For information on new revisions of this document, visit the download area on our website. This document is not subject to any updating service. Start | Jetter - We automate your success. For further information refer to the following information products: ■... -
Page 6: Legal Notices
ST Microelec- http://www.st.com/software_li- Free for con- tronics cense_agreement_liberty_v2 trollers belong- ing to ST Python Python Soft- https://docs.python.org/3/license.html GPL-compati- ware Founda- tion (PSF) srec_ca Peter Miller http://srecord.sourceforge.net GNU GPLv3 Tab. 1: Licenses of third-party providers User Manual – JetVewMobile 206 6 / 44... -
Page 7: Safety
Machinery Directive This device is no safety-related part as per Machinery Directive 2006/42/EC, and must, therefore, not be used for safety-relevant applications. This device is NOT intended for the purpose of personal safety, and must, therefore, not be used to protect persons. User Manual – JetVewMobile 206 7 / 44... -
Page 8: Warnings Used In This Document
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Material damage Indicates a situation which, if not avoided, could result in mal- functions or material damage. User Manual – JetVewMobile 206 8 / 44... -
Page 9: Product Description

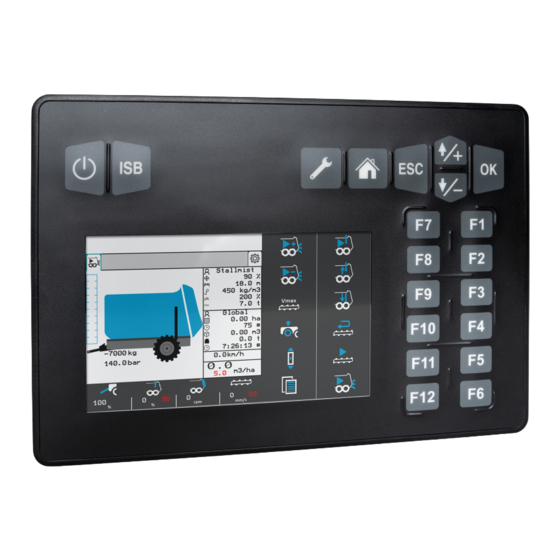

Supported firmware This document refers to firmware version 2.0.0.84 and higher. 3.1 Design Front Fig. 1: Front side of the control unit On/Off key ISB key Settings key Home key ESC key Navigation keys OK key Function keys TFT-Touchscreen User Manual – JetVewMobile 206 9 / 44... -
Page 10: Product Features
16-MB flash memory ■ TECU function ■ Calibrating function for the tractor speed signal ■ FS function ■ Update of the operating system and system menu via USB ■ Adaptable system menu User Manual – JetVewMobile 206 10 / 44... -
Page 11: Nameplate
Fig. 3: Nameplate Manufacturer logo Barcode Serial number CE mark E1 approval E1 approval number Hardware revision Part number Product type 3.4 Scope of delivery Scope of delivery Item number Quantity JVM-206 10001905 User Manual – JetVewMobile 206 11 / 44... -
Page 12: Technical Specifications
LED, typ. 500 cd/m , dimmable Tab. 2: Technical data – display 4.3 Pushbuttons Parameter Description Number of membrane 20 keys keys Backlighting Dimmable Adjustable between 0% … 100% Typical service life 1,000,000 activations Tab. 3: Technical data – keys User Manual – JetVewMobile 206 12 / 44... -
Page 13: Processor Kernel
Typical logic current con- 320 mA at DC 12 V sumption (VBAT_ECU) Power consumption Approx 3 W Integrated protective func- Reverse polarity protection, overvoltage, short volt- tions age pulses Tab. 7: Technical data – power supply VBAT_ECU User Manual – JetVewMobile 206 13 / 44... -
Page 14: Emc Values
(logarithmically increasing) 400 MHz … 1000 MHz = 63d BµV/m (constant) Tab. 11: Emitted radiation acc. to CISPR 25 ESD acc. to Electrostatic discharge Function class EN 61000-4-2 (ESD) Contact ±4 kV Air ±8 kV Tab. 12: Electrostatic discharge (ESD) acc. to EN 61000-4-2 User Manual – JetVewMobile 206 14 / 44... -
Page 15: Ports And Interfaces
4.7 kΩ Can be switched off H level Mode 1: ≥ 3.4 V Standard = mode 1 Mode 2: ≥ 6.2 V L level Mode 1: ≥ 2.5 V Mode 2: ≥ 1.5 V Signal Duty cycle 20% … 80% Tab. 16: Input for PTO speed acc. to ISO11786:1995 User Manual – JetVewMobile 206 15 / 44... -
Page 16: Acoustic Signal Generator
Description Type Piezo Volume > 70 dB With resonance fre- quency and without me- chanical damping. Volume control Turned off, Controlled via PWM. 10% … 100% Frequency range 200 Hz … 4 kHz Tab. 20: Technical data – acoustic signal generator User Manual – JetVewMobile 206 16 / 44... -
Page 17: Real-Time Clock
Parameter Description Battery type CR2032 Service life Approx. 10 years from The service life of the production. battery depends on the ambient conditions and may therefore differ. Tab. 21: Technical data – real-time clock User Manual – JetVewMobile 206 17 / 44... -
Page 18: Mechanical Installation
Clean the area around a connector prior to removing the mating connector. NOTICE Compliance with degree of protection The protection class of the device is only ensured if the M12 cable gland is tightened securely. User Manual – JetVewMobile 206 18 / 44... -
Page 19: Allowed Mounting Orientations
Mechanical installation | 5 5.1 Allowed mounting orientations The device has a RAM mount connection and can be installed in the driver's cab with a suitable holder. Fig. 5: Permitted installation position with RAM mount holder User Manual – JetVewMobile 206 19 / 44... -
Page 20: Electrical Connection
Surges may cause malfunctions or damage to the product. ► Protect the voltage inputs from surges according to the re- quirements. ► Ensure that the device is handled in accordance with ESD regulations. User Manual – JetVewMobile 206 20 / 44... -
Page 21: 8-Pin M12 Connector (Male)
Tractor: Wheel speed n. c. Speed input of the PTO (rpm signal) Hitch position (digital) Fig. 7: 8-pin M12 socket Power supply term.31 (GND) Hitch position (analog) Tab. 23: Pin assignment of the M12 socket User Manual – JetVewMobile 206 21 / 44... -
Page 22: Firmware And System Menu
Updating the firmware and system menu via USB [} 24] ■ 3443445_EDC_x_x_x_x_.hex: Updating the firmware and system menu via CAN bus [} 25] ■ 3443445_Emergency.hex: Update firmware and system menu via RS232 (not supported). User Manual – JetVewMobile 206 22 / 44... -
Page 23: Description Of The Iop File Of The System Menu
Adapt the content of this column to the name of your IOP file if neces- sary. ■ Column 4 is the comment field. It is not compiled. Multiple menu lan- To integrate additional menu languages see Language selection in the system guages menu [} 33]. User Manual – JetVewMobile 206 23 / 44... -
Page 24: Updating The Firmware And System Menu Via Usb
This procedure requires an operating system that is already installed. ü Update preparation The required firmware package JVM-206-K00-O21_rev_x_x_x_x.zip has been provided by Jetter Support (support@jetter.de). Make certain the control unit is turned off. Connect the 12-V power supply. Unpack firmware package JVM-206-K00-O21_rev_x_x_x_x.zip. -
Page 25: Updating The Firmware And System Menu Via Can Bus
The firmware and system menu must not be updated while the motor is running or the vehicle is being used. Update preparation ü The required file package JV-206_CAN_updater_rev_1_0_0_2.zip and the system requirements have been provided by Jetter Support (support@jet- ter.de). ü The required PEAK-P-CAN USB/CAN dongle is on hand. ü... -
Page 26: Programming
The system menu contains the general functions of the control unit. It is written by a customer-specific IOP file that is transferred to the control unit together with the firmware. The script for linking the two files is provided by Jetter together with the file package. -
Page 27: Reserved Object Ids
Set this attribute on rectangle object 200. Used when the entry in the editor field is faulty. Set this attribute on rectangle object 200. Tab. 25: FillAttribute objects Rectangular ob- Object ID Description jects Editor field Tab. 26: Rectangular objects User Manual – JetVewMobile 206 27 / 44... -
Page 28: Tab. 27 String Variables
(0 = metric, 1 = imperial) 65114 Decimal separator (0 = comma, 1 = dot) 65115 Ground speed 65116 Wheel speed 65117 Pulse counter for ground speed. 65118 Pulse counter for wheel speed. 65119 Ground speed: Pulses/meter User Manual – JetVewMobile 206 28 / 44... - Page 29 Automatic shutdown of the TECU: 1 = activated, 2 = deactivated; 65167 Current status of the TECU: 1 = active, 0 = not active 65169 FS active: 0 = file system functions deactivated, 1 = activated User Manual – JetVewMobile 206 29 / 44...
-
Page 30: Tab. 28 Numeric Variables
) = 256 + 65 = 321 Tab. 31: Key objects Container objects Object ID Description 3100 … 3199 Container for keyboard assignments. 3000 Listbox 3030 … 3035 Container for different date formats. Tab. 32: Container objects User Manual – JetVewMobile 206 30 / 44... -
Page 31: Physical Keys
Increases the numeric value. Reduces the numeric value. Opens the status mask for the USB update and updates the variable with the USB information. Starts the update via USB and opens the USB update mask. User Manual – JetVewMobile 206 31 / 44... -
Page 32: Character Set Types Of The System Menu
Type Character set ISO8859-1 (ISO Latin-1, West European) ISO8859-15 (ISO Latin-9, West European) ISO8859-2 (ISO Latin-2, Central European) ISO8859-4 (ISO Latin-4, North European) ISO8859-5 (Cyrillic) ISO8859-7 (Greek) Tab. 35: Supported character set types User Manual – JetVewMobile 206 32 / 44... -
Page 33: Language Selection In The System Menu
ISOBUS. The selected index is stored in variable ID 65112. Language Index Language abbreviation English Dutch French German Italian Spanish Danish Swedish Czech Croatian Hungarian Norwegian Polish Romanian Turkish Tab. 36: Assignment of index and language abbreviation User Manual – JetVewMobile 206 33 / 44... -
Page 34: Programming Examples
The scrollbar consists of two linear bar graphs with one superimposed on the other. Keys (key code 36) and (key code 35) are defined as buttons. Fig. 10: Programming example for list editor User Manual – JetVewMobile 206 34 / 44... -
Page 35: Programming Example For String Editor
100 keyboard sets can be programmed. The keyboard with object ID 3100 is the assignment that is shown when the string editor is opened. Container-ObjectID = 3100 Container-ObjectID = 3101 Container-ObjectID = 3102 Fig. 12: Programming example for multiple keyboard sets User Manual – JetVewMobile 206 35 / 44... -
Page 36: Programming Example For Error Messages
This example shows an error message that appears when the connection to the ECU is interrupted. Additional error messages can be created in a similar manner using the relevant object ID. Fig. 14: Programming example for error messages User Manual – JetVewMobile 206 36 / 44... -
Page 37: Defining The Date Format
The format is defined with variable 65180. The output strings named here contain the date format; for example, the value of the first string is DD-MM-YYYY. The object IDs of the strings are random. Only the positions in the input list are permanent (1 … 6). User Manual – JetVewMobile 206 37 / 44... -
Page 38: Maintenance
Any liability for any damages resulting from the use of non-original parts and equipment is excluded. 9.2 Return and disposal How to dispose of Return your Jetter AG product to us for proper disposal. Visit our homepage waste equipment detailed information and to download the required Returns form. -
Page 39: Storage And Shipment
In case of damaged packaging inspect the device for any visible damage, and in- form your freight forwarder and the Jetter AG of the damage caused during ship- ment. If the device is damaged or has been dropped, it is strictly forbidden to use User Manual –... -
Page 40: Service
To contact them, please call our technical hotline or use the contact form on our homepage: Technical hotline | Jetter - We automate your success. You are also welcome to send an e-mail to our technical hotline: hotline@jetter.de... -
Page 41: Spare Parts And Accessories
Inadequate accessories might cause damage to the prod- Parts and equipment from other manufacturers might impede the function of the device and cause damage to the product. ► Only use accessories recommended by Jetter AG. 11.1 Accessories Component Item number... - Page 42 Fig. 13 Object pointer for changing the keyboard set................Fig. 14 Programming example for error messages ................Fig. 15 Container IDs of the date components ..................Fig. 16 Container for date format......................Fig. 17 WEEE icon – crossed-out trash can..................User Manual – JetVewMobile 206 42 / 44...
- Page 43 Tab. 33 Function and behavior of physical keys................... Tab. 34 Key codes..........................Tab. 35 Supported character set types....................Tab. 36 Assignment of index and language abbreviation..............Tab. 37 Available date formats ......................User Manual – JetVewMobile 206 43 / 44...
- Page 44 Jetter AG Graeterstrasse 2 71642 Ludwigsburg www.jetter.de E-mail info@jetter.de Phone +49 7141 2550-0 We automate your success.
