Unitech MS282e Quick Start Manual

Barcode Programming
Before starting scanning any setting barcode,
please do follow the instruction below.
Scanning the Enter Setup barcode can enable the engine to
enter the setup mode. Then you can scan a number of programming
barcodes to configure your engine. To exit the setup mode,
scan the Exit Setup barcode.
Enter Setup
USB Device Type
USB HID-KBW
Scan Mode
Trigger mode*
Continuous Mode
Trigger Mode: A trigger pull activates a decode session.
Sense Mode: The engine activates a decode session every time it detects a barcode presented to it.
Continuous Mode: The engine automatically starts one decode session after another.
Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode
session timeout expires.
Batch Mode: A trigger pull activates a round of multiple decode sessions. This round of multiple scans continues until
you release the trigger. Rereading the same barcode is not allowed in the same round.
Good Read LED
Good Read LED ON *
* ：Default Option
Thank you for purchasing the unitech product.
For other product documentation, please scan the QR code for more information.
Connecting the Scanner
Connect USB cable to the USB port of a host PC.
Exit Setup *
USB COM Port Emulation
Pulse Mode
Good Read LED OFF
MS282e
USB HID-POS
Sense Mode
Batch Mode

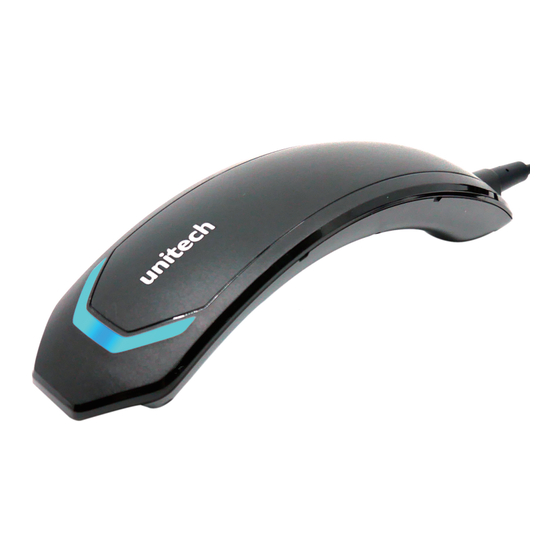

2D Imager Barcode Scanner
Quick Start Guide
Factory Default
Product Information
Aiming On /Off
Normal *
Off
Always On
Enable/Disable
All Prefixes/Suffixes
Enable All Prefixes/Suffixes
Disable All Prefixes/Suffixes
Version 1.0
608671G
