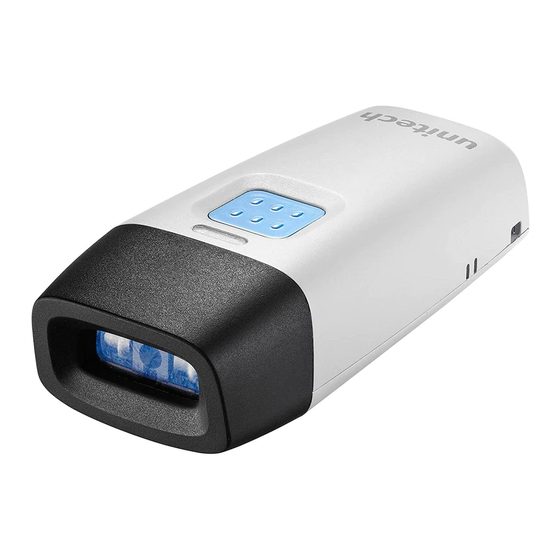

Unitech MS912+ Quick Manual

Wireless barcode scanner
Hide thumbs Also See for MS912+:
Table of Contents

Advertisement

Quick Links

Download this manual
MS912
Wireless
+
Barcode Scanner
Quick Guide
For more detailed scanner setting,
please go to www.ute.com to
download the user manual and scanner
configuration manager utility.
Version 1.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS912+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitech MS912+

Summary of Contents for Unitech MS912+

  • Page 1 MS912 Wireless Barcode Scanner Quick Guide For more detailed scanner setting, please go to www.ute.com to download the user manual and scanner configuration manager utility. Version 1.8...

  • Page 2: Specifications

    OUT OF THE BOX INTRODUCTION 2. Trigger 3. LED Indicator 4. Exit Window Wireless Pocket 1. Type-C USB port Scanner 5. Hard Reset Button SPECIFICATIONS (insert pin into the hole) Light source 625nm visible red LED Scan rate 650 scans/sec Sensor Linear CMOS sensor Resolution...

  • Page 3: Getting Started

    BEEPER INDICATION GETTING STARTED Single long beep Power up Single beep Good read Single short beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps i. Wireless connection ii. The scanner successfully reads a configuration barcode Two short beeps Good read (Auto mode) Three beeps Wireless disconnection...
  • Page 4 INTERFACE INTERFACE There are 5 interfaces for data transmission/collection: . E043$ BT HID 1. BT HID - Emulates a Bluetooth HID keyboard that transmits each barcode data to the host after decode. (See page 7) 2. BT SPP - Emulates a Bluetooth SPP device that transmits .

  • Page 5: Getting Connected

    GETTING CONNECTED PINCODE SETUP There are two modes of wireless communication: . E043$ STEP 1 . E032$ [ Recommended ] BT mode - HID Pincode Start 1. Press the trigger for 1 second to activate the scanner. 2. Scan [DISCONNECT] STEP 2 3.

  • Page 6: Numeric Bar Codes

    NUMERIC BARCODES - 9 - - 10 -...
  • Page 7 POWER OFF TIMEOUT SMARTPHONE/TABLET TOUCH KEYBOARD The period of inactivity before auto power-off. Touch Keyboard - iOS Variable Timeout . E047$ . B030$ *.B030$* ENABLE iOS HOTKEY SET MINUTE (Range: 00 ~ 60) After enabling iOS Hotkey(enabled by default), you may simply .
  • Page 8 GENERAL SETTINGS TERMINATOR . D012$ . A001$ DEFAULT . D011$ . P023$ ABORT . D013$ . A007$ CHECK CR + LF VERSION . D010$ BEEPER NONE . F012$ . D015$ BEEP OFF SPACE . F018$ BEEP ON . D014$ - 13 - - 14 -...
  • Page 9 KEYBOARD LAYOUT . C009$ . C010$ ENGLISH JAPAN (USA) (106 key) . C018$ . C025$ ENGLISH CANADIAN (UK) (FRENCH) . C034$ . C012$ CANADIAN FRENCH (TRADITIONAL) . C029$ . C011$ GERMAN NORWEGIAN . C026$ . C014$ ITALIAN SWEDISH . C031$ .
  • Page 10 KEYBOARD LAYOUT . C030$ . C017$ CZECH BELGIAN (QWERTY) (AZERTY) . C028$ . C022$ CZECH DUTCH (QWERTZ) . C027$ . C021$ HUNGARIAN DANISH (QWERTZ) . C024$ . C032$ HUNGARIAN SLOVAK (101 KEY) . C033$ . C016$ SWISS BRAZILIAN (GERMAN) (PORTUGUESE) .

  • Page 11: Gs1 Databar Expanded

    ENABLE SYMBOLOGIES . G010$ . A002$ ENABLE CODE 93 ALL CODE . K010$ . N017$ CODE 32 IATA . L010$ . L014$ UK PLESSEY TELEPEN . L001$ . N032$ GS1 DATABAR . N001$ . N010$ INDUSTRIAL GS1 DATABAR 2 OF 5 LIMITED .

  • Page 12: Auto Mode

    BINARY CHECK CHARACTER AUTO MODE For MS912M+ only . E029$ Being out of range, the scanner will temporarily *.e029$* keep scanned data in its memory buffer(2K RAM) ENABLE until the buffer is full. The scanner will send all stored data back to the host after getting in range. .

  • Page 13: Batch Mode

    BATCH MODE BATCH MODE For MS912M+ only For MS912M+ only . C035$ Retrieve Batch Data - *.txt File *.c035$* BATCH MODE To retrieve stored data as *. file, please connect the scanner to the host with cable, access removable storage device “MiniScan” from which you may open or copy the file “BARCODE.txt”...

  • Page 14: Data Format

    DATE FORMAT DATA FORMAT For MS912M+ only For MS912M+ only . R011$ . R008$ *.R011$* *.R008$* DATA FORMAT DATE FORMAT The default Data Format is <Date>, <Time>, <Barcode Data> The default Date Format is DD/MM/YYYY (Code = 09), below below are all items available for display and their codes: is full list of available formats and their setup codes: Code Item...

  • Page 15: Time Format

    TIME FORMAT DATE & TIME SETUP For MS912M+ only For MS912M+ only . R006$ . R009$ *.R006$* *.R009$* SET DATE TIME FORMAT Example: To set Date to 2023-01-01 (Year-Month-Day): The default Time Format is HH:MM:SS (Code = 01), below 1. Scan [Set Date] are available formats and their setup codes: 2.
  • Page 16 QUANTITY QUANTITY For MS912M+ only For MS912M+ only . R017$ . R018$ DISABLE QUANTITY INPUT ENABLE QUANTITY INPUT When quantity input is disabled, the operation procedure under When quantity input is enabled, the operation procedure under batch mode will be: batch mode will be: 1.
  • Page 17 - 31 - - 32 -...
