Unitech MS910 User Manual

Wireless scanner
Hide thumbs Also See for MS910:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Manual
Wireless Scanner
- MS910 -
User's Manual
Version 1.0
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
Tel: + 886 2 89121122
Fax: +886 2 89121810
website: www.ute.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS910 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitech MS910

Summary of Contents for Unitech MS910

  • Page 1 Wireless Scanner - MS910 - User’s Manual Version 1.0 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 2 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Overview ........................... 1 Introducing the MS910 ......................1 Package Contents......................... 2 Chapter 2 Installation and Connection ....................5 Connecting (Pairing) the Scanner to a Host PC..............5 Connecting via Serial Port Profile (SPP) Mode ..............5 Connecting via Human Interface Device (HID) Mode............
  • Page 4 Full ASCII Chart........................34 Barcode Chart ........................37 Appendix B Worldwide Support ........................ 38 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 5: Chapter 1 Overview

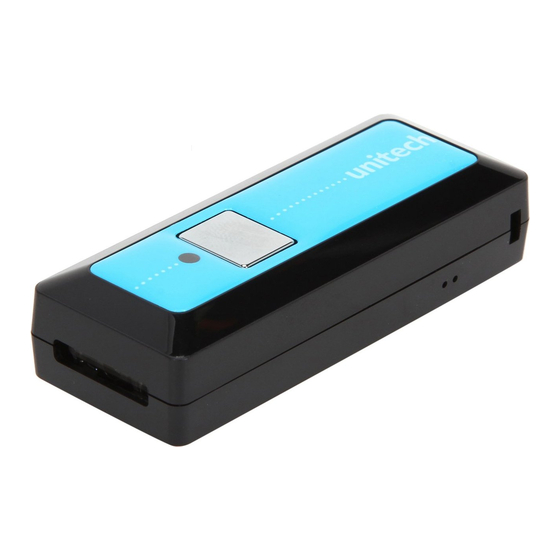

    MS910 scanner ensures the productivity and mobility of your business application. The MS910 is the smallest wireless scanners in the market and is compatible with all major OS on the nowadays popular smartphones and tablet PC via both HID and SPP profiles.

  • Page 6: Package Contents

    Package Contents Please make sure the following contents are in the MS910 box. If something is missing or damaged, please contact your Unitech representative. MS910 scanner Product Resource CD Quick Guide USB Charging Cable Hand Strap Note: Environmental temperature for charging should be within 0ºC – 50ºC (32ºF – 122ºF).

  • Page 7: Scanner Detail

    Mini USB port Exit Window Trigger Hard Reset Button LED Indicator Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 8 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 9: Installation And Connection

    Connecting (Pairing) the Scanner to a Host PC Please make sure your PC or Smart Phone has a built-in wireless adaptor; the MS910 supports both HID and SPP wireless profiles. If you are connecting it to an iOS (Apple) smart phone, please follow the instruction of “Connecting via Human Interface Device (HID) Mode”;...
  • Page 10 To complete verification of your pin code, scan the [Pincode-Stop] barcode: Pincode-Stop The scanner will beep twice to verify a successful connection. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 11: Smartphone Connection (Android)

    Note. To disconnect the scanner from the host PC or to switch the wireless profile from one to another, please scan the [Disconnect] barcode: Disconnect After scanning the [Disconnect] barcode, the MS910 will emit 3 beeps. Smartphone Connection (Android) 1. Pair with the scanner via [SPP]; see topic “Connecting via Serial Port Profile (SPP) Mode”...

  • Page 12: Scanner Led & Beeper Indication

    PC. 3. Please charge the scanner for at least 2 hours (until the LED indicator turns off). Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 13: Chapter 3 Specification

    5000 reads/charge Environmental ESD Protection Functional after 4KV Contact and 8KV Air Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 14 Regulation Approvals FCC Class B, CE Accessories Mini USB cable, Hand Strap, Tools CD Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 15: Chapter 4 User Preferences

    Locate the appropriate feature setting listed in the following pages. Set feature values by scanning single barcodes or short barcode sequences. The MS910 will beep to confirm a successful scan and will store the new setting in the scanner’s memory.
  • Page 16 STEP 5: Scan: " $" twice from Full ASCII Chart of Appendix A. STEP 6: Scan: POSTAMBLE. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 17 Scan CONTINUOUS AUTO OFF. (GROUP 2) All parameters will be converted to alphanumeric characters and shown on the monitor. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 18 The following label dumps the settings to a PC/AT regardless of the type of device that has been chosen on the scanner. Dump Settings on PC_AT Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 19 All characters in dumped strings are uppercase. If you see lowercase characters in dumped strings, change them to uppercase. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 20 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 21: Setup Chart

    Mode Beep Trigger .F018$ Terminator .D013$ Enter UPC-E Scan Code Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 22 $T%K Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 23: Beeps And Delays Group 1

    100 ms 4 mS 200 ms 16 mS 500 ms 15 19 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 24: Keyboard Wedge Settings Group 2

    Function Code Caps-Lock .C021$ .C017$ Lower Case .C022$ Use number keypad digits Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 25: Scanner Port: Group 3

    Scanner Port: Group 3 Trigger Code ID Preamble /postamble Label Type Factory ID On Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 26: Define Code Id Group 3

    Set ID GS1 DataBar Set ID GS1 DataBar Limited Set ID Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 27: Code 39 / Full Ascii Code Group 4

    CD not Calculate No Send Min Length (1) Max Length (48) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 28: I 2 Of 5 Group 5

    I 2of5 (ITF) Disable CD not Calculate Min Length (6) Max Length (48) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 29: S 2 Of 5 / Code 32 Group 6

    Leading Character Send CD not Calculate Tailing Character Send Min Length (11) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 30: Ean 128 Group 7

    Disable Enable Code ID Disable Define the EAN 128 Fields Separtor Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 31: Code 128/ Code 93 / Msi Code Group 8

    Min Length (6) Min Length (6) Max Length (48) Max Length (48) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 32: Code 11 / Codabar Group 9

    Min Length (6) Max Length (48) Check Digit Codabar Not Calculate Enable Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 33: Upc / Ean Code Group 10

    UPC / EAN Code Group 10 UPC-A Enable Leading Digit Send Check Digit Send UPC-E Enable Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 34: Upc / Ean Code Group 11

    Leading Digit Send Leading Digit Send Check Digit Send Check Digit Send Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 35: Supplement Code Group 12 / Matrix 2 Of 5 Group 13

    Supplement Code Group 12 MATRIX 2 Of 5 Group 13 Supplement Code Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 36: Iata Group 14

    CDV & SEND CD .L013$ CDV & NOT SEND CD UK PLESSY CODE GROUP - 15 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 37: Gs1 Databar Group - 16

    . P019$ GS1 DataBar LIMITED PREFIX NOT SEND GS1 DataBar LIMITED SET ID Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 38: Full Ascii Chart

    Full ASCII Chart (Characters in parentheses represent Code 39 bar code printing) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 39 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 40 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 41: Barcode Chart

    .B018$ 0987654321 1 min 3 min 5 min 10 min 1234558 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 42: Appendix B Worldwide Support

    Worldwide Support Unitech’s professional support team is available to quickly answer questions or technical-related issues. Should an equipment problem occur, please contact the nearest Unitech regional service representative. For complete contact information please visit the Web sites listed below: Region...
