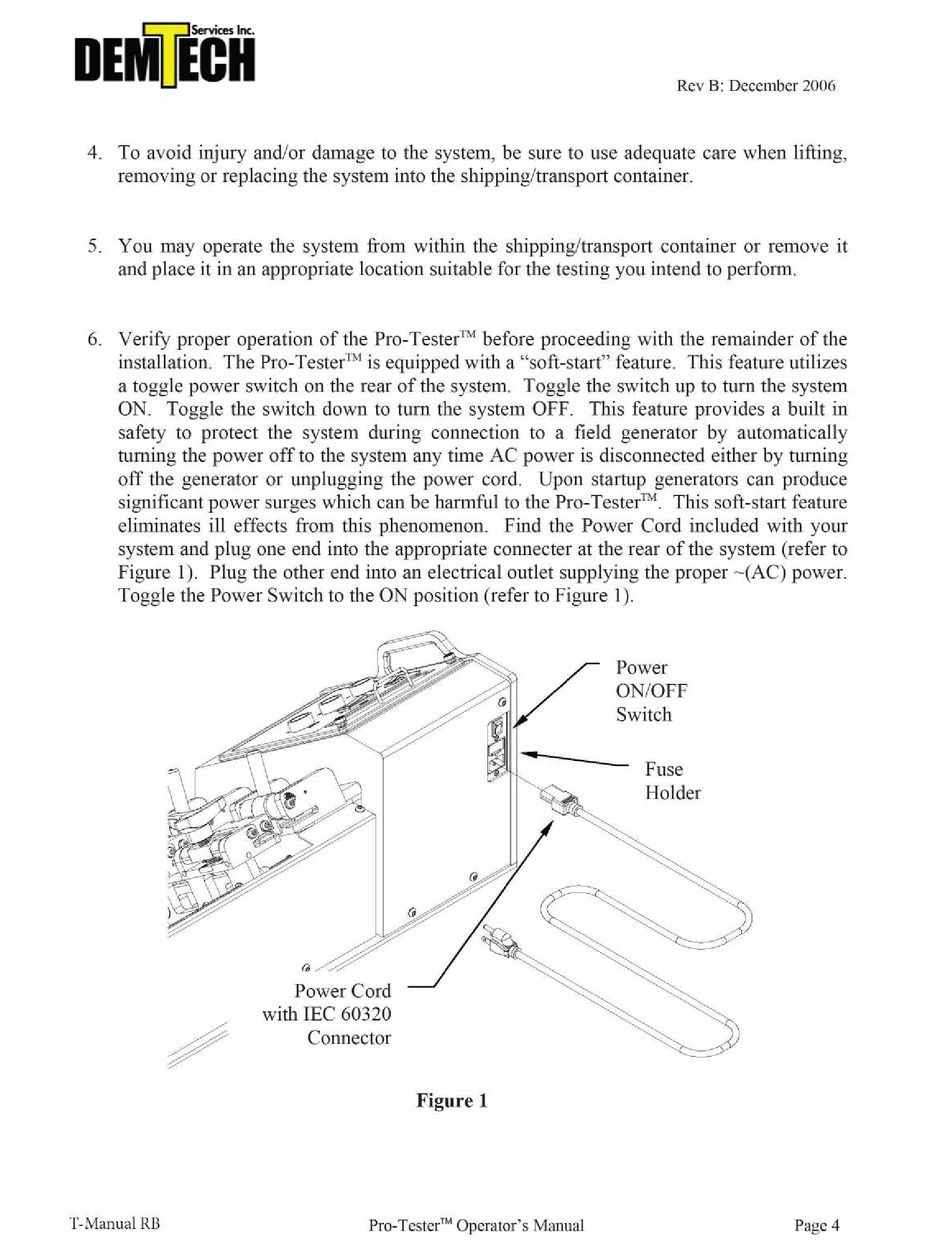

Demtech Pro-Tester T-0100 Operator's Manual page 8

DEMl)Cii
Rev B: December 2006
4. To avoid injury and/or damage to the system, be sure to use adequate care when lifting,
removing or replacing the system into the shipping/transport container.
5. You may operate the system from within the shipping/transport container or remove it
and place it in an appropriate location suitable for the testing you intend to perform.
6. Verify proper operation of the Pro-Tester™ before proceeding with the remainder of the
installation. The Pro-Tester™ is equipped with a "soft-start" feature. This feature utilizes
a toggle power switch on the rear of the system. Toggle the switch up to tum the system
ON. Toggle the switch down to tum the system OFF. This feature provides a built in
safety to protect the system during connection to a field generator by automatically
turning the power off to the system any time AC power is disconnected either by turning
off the generator or unplugging the power cord. Upon startup generators can produce
significant power surges which can be harmful to the Pro-Tester™. This soft-start feature
eliminates ill effects from this phenomenon. Find the Power Cord included with your
system and plug one end into the appropriate connecter at the rear of the system (refer to
Figure 1). Plug the other end into an electrical outlet supplying the proper
~(AC)
power.
Toggle the Power Switch to the ON position (refer to Figure 1).
T-Manual RB
Power Cord
with IEC 60320
Connector
Figure 1
Pro-Tester™ Operator's Manual
Power
ON/OFF
Switch
Fuse
Holder
Page 4
