16 STOCK
WASHER, M5 SPLIT LOCK, SS 2
15 STOCK WASHER, M5 FLAT, DIN 125, SS 2
14 STOCK
SCREW, M5 X .8 X 16mm LONG, SOCKET HEAD CAP, SS 4
13 STOCK NUT, M8 X 1.25 HEX, JAM, SS 1
12 STOCK NUT, 10-32 HEX, SMALL-PATTERN MACHINE, SS 2
11
STOCK BUSIUNG, 5/8" 10 X 7/8" OD X 5/8" LONG, SAE 841, BRONZE 2
10
STOCK BOLT, M8 X 1.25 X 60mm LONG, HEX HEAD CAP, SS
1
9 STOCK BOLT, 10-32 X 2-112" LONG, HEX HEAD MACIUNE, SS 1
8 STOCK
BOLT, 10-32 X 1-1/4" LONG, HEX HEAD MACHINE, SS
1
7 T-084 POST,DRIVE,PLATE,DETENT 1
6 T-079 HOUSING, LINEAR BEARING, MOUNT
1
5
T-078
PLATE, CARRIAGE SLAVE, SHAFT 1
4 T-077 PLATE, CARRIAGE DRIVE, SCREW
1
3
T-067 BEARING, 5/8' ID LINEAR BALL, SELF-ALIGNING, CLOSED
2
2 T-064 PLUNGER, BALL, 3/8-16 X .625, SS, W/LOCK 1
1 T-058 NUT, 5/8" X .20" LEAD, BRONZE, GRIP DRIVE
2
ITEM PART NUMBER DESCRIPTION QTY

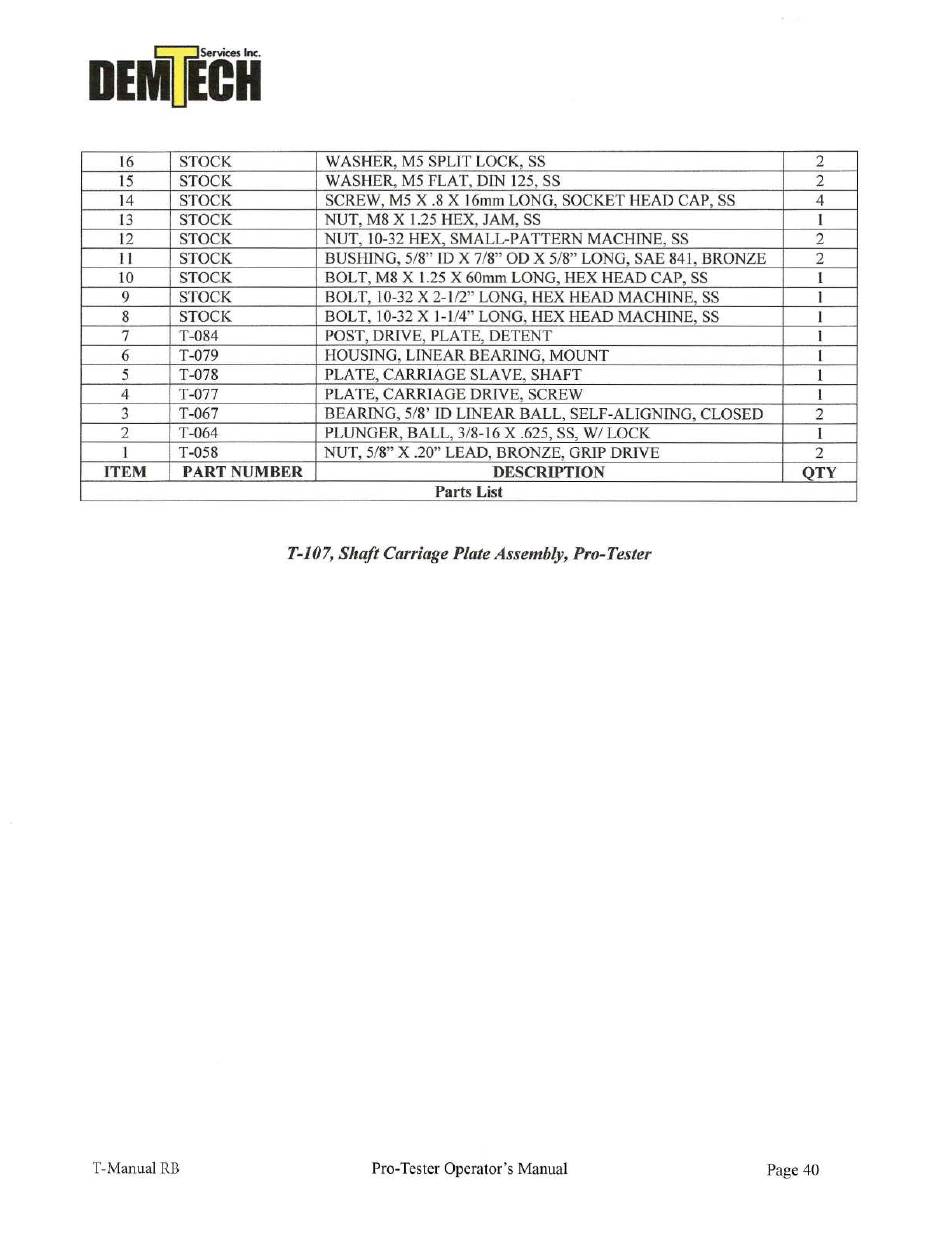

Parts List
T-107, Shaft Carriage Plate Assembly, Pro-Tester
