14 STOCK
SCREW, M4 X .7 X 8mm LONG, BUTTON HEAD SOCKET, SS
2
13 STOCK
SCREW, M3 X .5 X 8mm LONG, BUTTON HEAD SOCKET, SS 2
12
T-034 SCREW, SET, M4 X .7 X 20mm LONG, ALLEN CUP POINT, SS 2
11
T-033
CAP, 112" ID X 2" LONG, VINYL, BLACK 1
10
T-032
STUD, 112-13 X 2-1 /2" LONG, FULLY THREADED, SS 1
9
T-031 CAM, SAMPLE GRlP, PIVOT
1
8 T-030
JAW, SAMPLE GRIP, LOWER, CAM
1
7 T-018 SCREW, SHOULDER, 5/16" OD X 5/8" LONG, HARDENED 2
ALLOY STEEL
6 T-017
SPRING, EXTENSION, .029" WIRE DIA X .240" OD X .750"
2
LONG, MUSIC WIRE
5 T-015 SHIM, .314" ID X .438" OD X .020" THICK, SS 4
4 T-014 PIN, DOWEL, 1/8" OD X 5/8" LONG, HARDENED, SS 2
3
T-013 BEARING, GRIP ASSY, 5116" ID X 112" OD X 1/2" LONG
2
2 T-007 STOP, SAMPLE SIDE, ADJUSTABLE 1
1
T-006 GRIP, SAMPLE, LOWER
1
ITEM PART NUMBER DESCRIPTION QTY

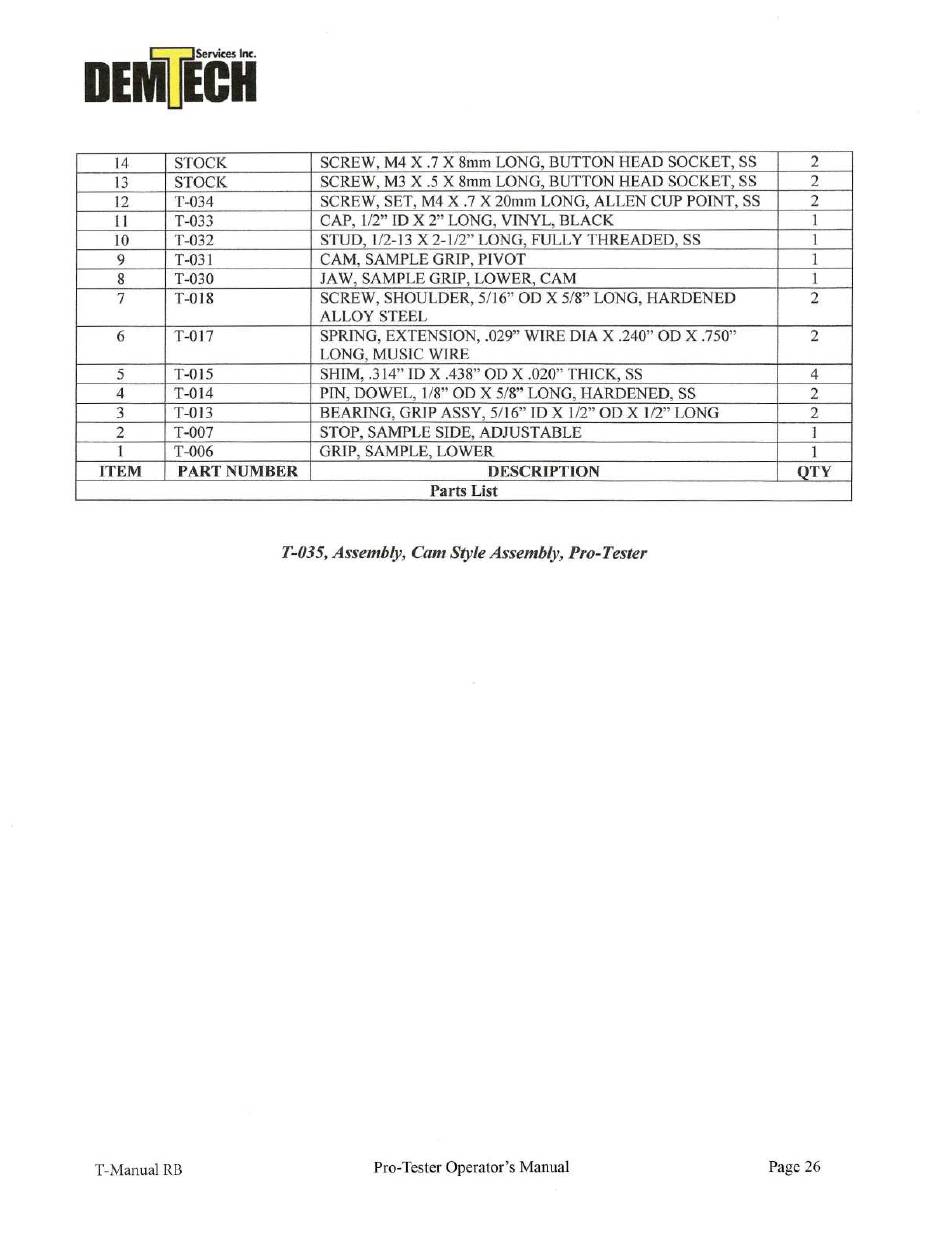

Parts List
T-035, Assembly, Cam Style Assembly, Pro-Tester
