FRAME IT ALL 300001168 Assembly Instructions

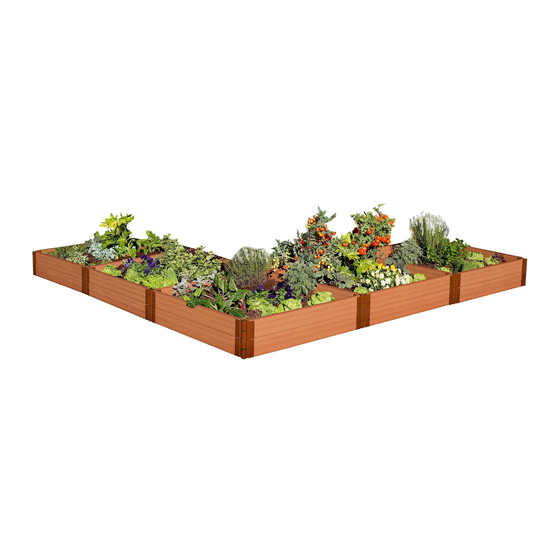

L-shaped raised garden

Download this manual

300001168/300001169

300001452/300001436

L-SHAPED RAISED GARDEN

Layout your timbers along the borderline

and connect each timber together by

inserting the top of the stake through the

bracket loops with the stake pointing to the

sky. This enables you to freely position your

border to get your desired location.

KIT CONTAINS:

Plugs x 112

Composite

Stacking

4-way Bracing

Stake x 24

Brackets x 40

Brackets x 8

Timbers x 28

Caps x 12

Tools needed: Hammer (to tap stake in place), Hackshaw (optional)

Customer Service: 1800-914-9835 | support@frameitall.com

Need help?

Do you have a question about the 300001168 and is the answer not in the manual?

Page 1 4-way Bracing Stake x 24 Brackets x 40 Brackets x 8 Timbers x 28 Caps x 12 Tools needed: Hammer (to tap stake in place), Hackshaw (optional) Customer Service: 1800-914-9835 | support@frameitall.com © 2020 Frame It All. All Rights Reserved.
Page 2 ASSEMBLY INSTRUCTIONS STEP 1: Assemble 18 x Doubled-Bracket Timbers (A) Attach one single stacking bracket to each end of timbers (one facing up, one facing down – shown below) X 18 You will need 12 (A) Timbers for the 1 (base) level and 6 (A) Timbers for the 2 level.
Page 3 ASSEMBLY INSTRUCTIONS STEP 5: For the second level, place 4 (C) timbers on top of base level. Place the remainder (A) and (B) timbers based on the diagram below. (C) Timber Connections Joint requires one Joint requires both piece of 4-way pieces of 4-way bracket bracket STEP 7: Add the caps to each of the top...
