FRAME IT ALL 300001063 Quick Start Manual

300001063/300001064/300001066/300001067
300001421/300001423/300001442/300001443
300001420/300001442/300001440/300001441
300001090/300001091/300001097/300001098

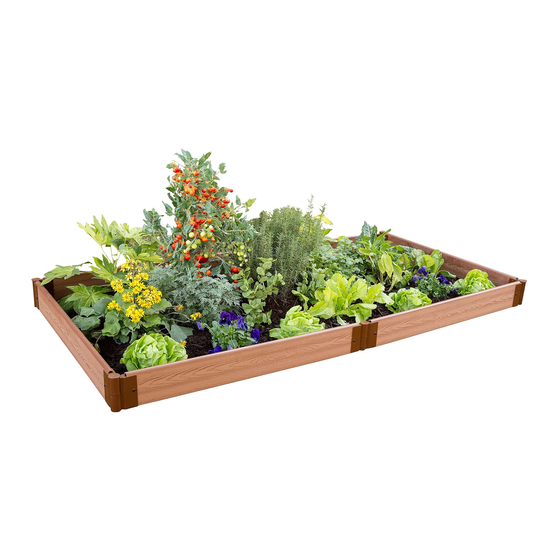

RAISED GARDEN BED
1 LEVEL
1 LEVEL KIT CONTAINS:
•
Composite timbers 4' x 6
•
Stacking Brackets x 12
•
Stacking Stakes x 6
•
Plugs x 24
•
Caps x 6
2 LEVEL KIT CONTAINS:
•
Composite timbers 4' x 13
•
Stacking Brackets x 22
•
4-way Brackets x 4
•
Stacking Stakes x 12
•
Plugs x 52
•
Caps x 6
Layout your timbers along the borderline and connect each
timber together by inserting the top of the stake through the
bracket loops with the stake pointing to the sky. This enables
you to freely position your border to get your desired location.
FOR INDOOR & HARD SURFACE:
If you plan to assemble raised bed on a hard surface, use
hacksaw to remove the spike of each stake. Use these cut
Trim stake spike with
down stakes for the base level only of your raised garden.
hacksawfor use indoor
or on hard surfaces
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
4' x 8'
3 LEVEL KIT CONTAINS:
•
Composite timbers 4' x 19
•
Stacking Brackets x 34
•
4-way Brackets x 4
•
Stacking Stakes x 18
•
Plugs x 76
•
Caps x 6
4 LEVEL KIT CONTAINS:
•
Composite timbers 4' x 26
•
Stacking Brackets x 44
•
4-way Brackets x 8
•
Stacking Stakes x 24
•
Plugs x 104
•
Caps x 6
ASSEMBLY INSTRUCTIONS – For the First Level
STEP 1:
Assemble the timbers by sliding one end of timber into channel end
of one of the brackets. Use plugs to cover the holes on both sides to
lock the bracket in place.
Repeat this process on the opposite end of the timber flipping the bracket in the opposite
direction (see image). Repeat for all timbers on
the first level.
STEP 2:
Layout the base level of your raised garden in a straight rectangular shape, using 6
timbers. Insert stake through the hole of the bracket and into each of the corners to lock
all sides in place. If you are installing a 2
your base shape can be adjusted.
ASSEMBLY INSTRUCTIONS – For Product with Two to Four Levels
STEP 3:
For the second level, connect 2 timbers with a
stacking bracket on one end and a mid-section 4-
way bracket on the other end in alternating
orientation.
Then, connect 1 timber with top 4-way brackets on
both ends in alternating orientation as shown to the
right. These 3 timbers will be used to install the
cross timber.
Now connect 4 timbers with stacking brackets on
both ends as you did for the first level.
How the Joints Work
Use a Cap to
complete the
top level.
Use stacking
stakes for
ground level
frames and
Use plugs to
Use plugs (included)
stacking
cover the holes
additional levels.
– two plugs are
to cover the holes on
required per
both side of timbers
bracket (1 on
each side)
nd level, insert your stakes upside down so that
STEP 2a: For one level, add caps to each of the top
corner joints to finish off the raised garden.
HAPPY GARDENING!
2 x
1 x
4 x
Use stacking
Stacking stake fit
stake when
into the tops other
creating a
Stacking stakes
multi-level
A
B
C
3-Way Connection:
Combining two halves
of a 4-way bracket and
a stacking bracket (A),
will result in a 3-way
junction (B).
