FRAME IT ALL 300000078 Quick Start Manual

300000078/300001078/300003078/300004078
300000402/300001402/300003402/300004402
300000435/300001435/300003435/300004435
300000451/300001451/300003451/300004451
RAISED GARDEN BED
1 LEVEL
1 LEVEL KIT CONTAINS:
•
Composite boards 4' x 10
•
Stacking Brackets x 20
•
Stacking Stakes x 10
•
Plugs x 40
•
Caps x 10
2 LEVEL KIT CONTAINS:
•
Composite boards 4' x 23
•
Stacking Brackets x 34
•
4-way Brackets x 12
•
Stacking Stakes x 20
•
Plugs x 92
•
Caps x 10
you to freely position your border to get your desired location.
FOR INDOOR & HARD SURFACE:
If you plan to assemble raised bed on a hard surface, use
hacksaw to remove the spike of each stake. Use these cut
Trim stake spike with
down stakes for the base level only of your raised garden.
hacksawfor use indoor
or on hard surfaces
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
4 LEVELS
3 LEVEL KIT CONTAINS:
•
Composite boards 4' x 33
•
Stacking Brackets x 54
•
4-way Brackets x 12
•
Stacking Stakes x 30
•
Plugs x 132
•
Caps x 10
4 LEVEL KIT CONTAINS:
•
Composite boards 4' x 46
•
Stacking Brackets x 68
•
4-way Brackets x 24
•
Stacking Stakes x 40
•
Plugs x 184
•
Caps x 10
Layout your boards along the borderline and connect each
Board together by inserting the top of the stake through the
bracket loops with the stake pointing to the sky. This enables
ASSEMBLY INSTRUCTIONS – For the First Level
STEP 1:
Assemble the boards by sliding one end of Board into channel end
of one of the brackets. Use plugs to cover the holes on both sides to
lock the bracket in place.
Repeat this process on the opposite end of the Board flipping the bracket in the opposite
4' x 16'
direction (see image). Repeat for all boards on the
First level.
STEP 2:

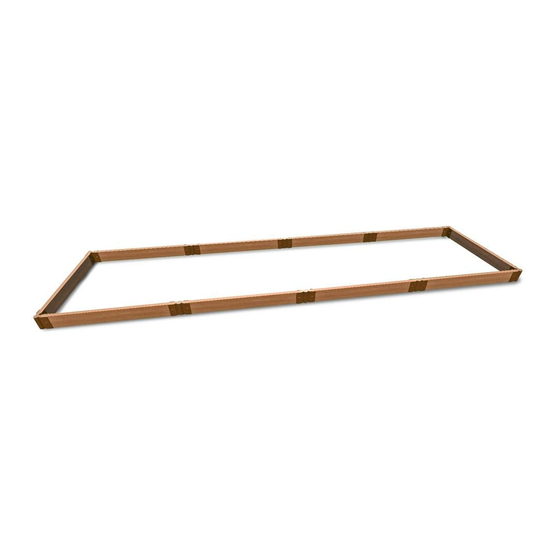

Layout the base level of your raised garden in a straight rectangular shape, using 10
boards. Insert stake through the hole of the bracket and into each of the corners to lock
all sides in place.
ASSEMBLY INSTRUCTIONS – For Product with Two to Four Levels
STEP 3:
For the second level, connect 4 boards with a
stacking bracket on one end and a mid-section 4-
way bracket on the other end in alternating
orientation.
Then, connect 2 boards with top 4-way brackets on
both ends in alternating orientation as shown to the
right. These 3 boards will be used to install the cross
Board.
Now connect 4 boards with stacking brackets on
both ends as you did for the first level.
How the Joints Work
Use a Cap to
complete the
top level.
Use stacking
stakes for
ground level
frames and
Use plugs to
stacking
cover the holes
additional levels.
– two plugs are
required per
bracket (1 on
each side)
STEP 2a: For one level, add caps to each
of the top corner joints to finish off the
raised garden.
6 x
3 x
4 x
Use stacking
Stacking stake fit
stake when
into the tops other
creating a
Stacking stakes
multi-level
Use plugs (included)
to cover the holes on
both side of boards
HAPPY GARDENING!
A
B
C
3-Way Connection:
Combining one half of a
4-way bracket and a
stacking bracket (A), will
result in a 3-way
junction (B).
