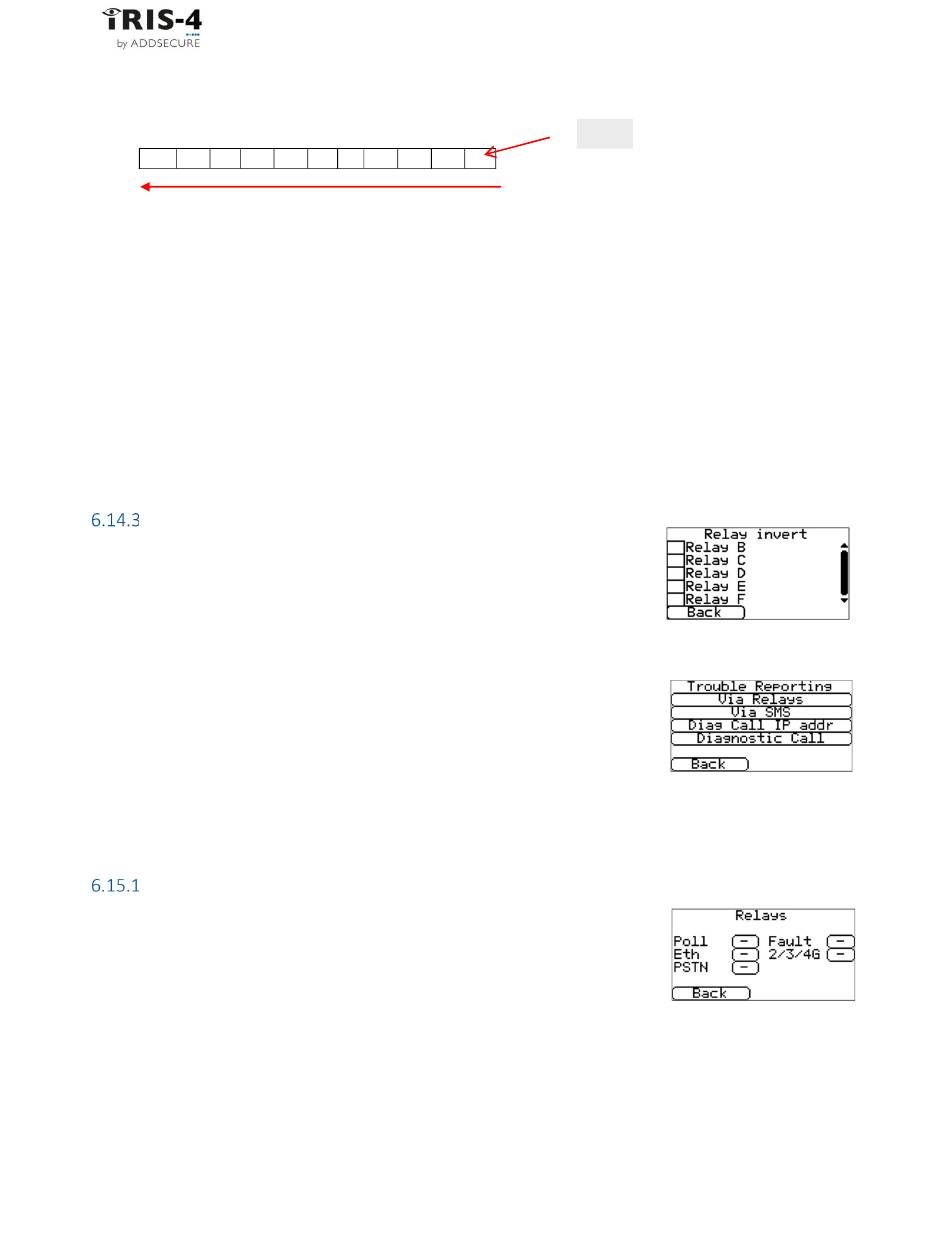

The comparison begins at the least significant number (LSN) and then works backward as shown in the
example below using the phone number 07890123456:
0 7 8 9
Starting from the LSN 6, you can work backward to compare the CLI number. For example, you can enter
"56" which will allow all phone numbers with a CLI ending in 56.
You need to confirm which CLI number is being received, by using your mobile phone to receive the call,
thereby displaying the incoming CLI number.
Leaving the source number blank will allow any mobile number to set or restore the relay providing the SMS
text matches.

6.14.2.2 Activation msg

Sets the SMS text message required to open the relay, note this is case sensitive.

6.14.2.3 Deactivation msg

Sets the SMS text message required to close the relay, note this is case sensitive.

Relay invert

This option lets you reverse the way relays work so you can reverse the normal
state of a relay from open to closed and vice versa.
This might be required depending on the external equipment being connected.

6.15 Trouble reporting

Trouble reporting allows setup of the reporting of communication faults via
relays or SMS and diagnostic calls to be made over an IP communication path
(Ethernet or cellular).
The remote diagnostic call allows an outbound TCP/IP call using TCP/IP port
number 51292 to a technician with a PC/laptop running the IRIS Toolbox software. This will then let them
check setup and run diagnostics remotely to investigate any issues.
Below is a breakdown of these individual setup options:

Via relays

It is possible to enable or disable the terminal toggling the state of the relays to
indicate communication path failures. This is intended to signal failures back to
the panel inputs, so the site has local indication of a communication failure (for
EN standards). The terminal allows the choice of which relay is to be used for
the indication of a poll or other communication fault.
Click on the relevant box for the relay to be used for indicating this failure.
Note: Each relay can be used for multiple path fault indications.
The «Fault» option allows reporting of system fault indications via the selected relay. For a list of these
faults, see section 9.1. "Trouble report"
page 42
0 1 2 3 4 5
IRIS-4 Technical Reference Manual.docx 12/01/2023
LSN
6
