4.2

Recommended installation sequence

We recommend that you follow this installation sequence:

Add Extension board (if required)

Mount the terminal

Position the antenna
 Connect cables to the terminal

Power up

Use Touchscreen menus
Note: that the term "touchscreen" as used in this document refers to both the physical touchscreen on a
terminal PCB and the virtual touchscreen provided in the IRIS Toolbox.

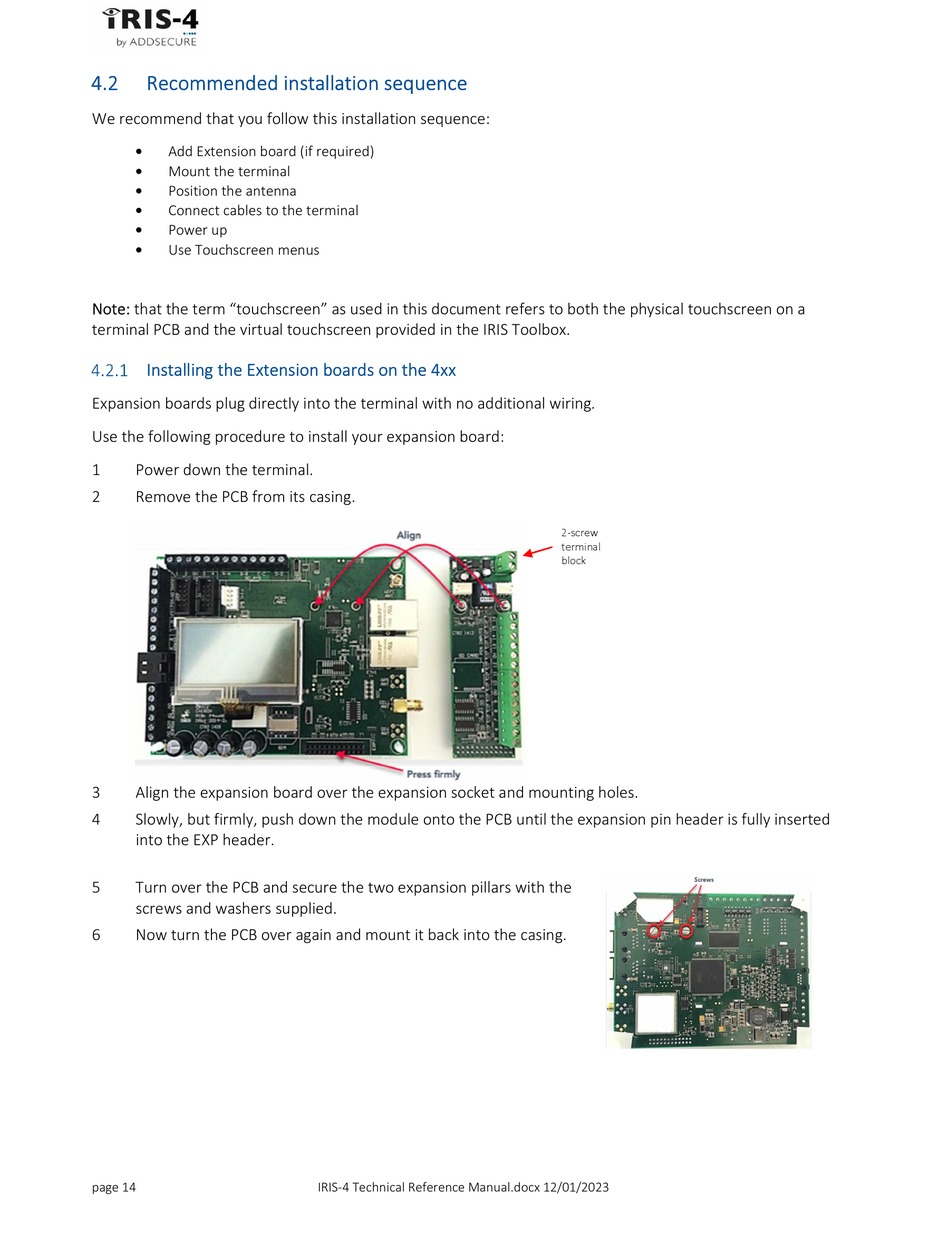

Installing the Extension boards on the 4xx

Expansion boards plug directly into the terminal with no additional wiring.
Use the following procedure to install your expansion board:
1 Power down the terminal.
2 Remove the PCB from its casing.
3 Align the expansion board over the expansion socket and mounting holes.
4 Slowly, but firmly, push down the module onto the PCB until the expansion pin header is fully inserted
into the EXP header.
5 Turn over the PCB and secure the two expansion pillars with the
screws and washers supplied.
6 Now turn the PCB over again and mount it back into the casing.
