3.4

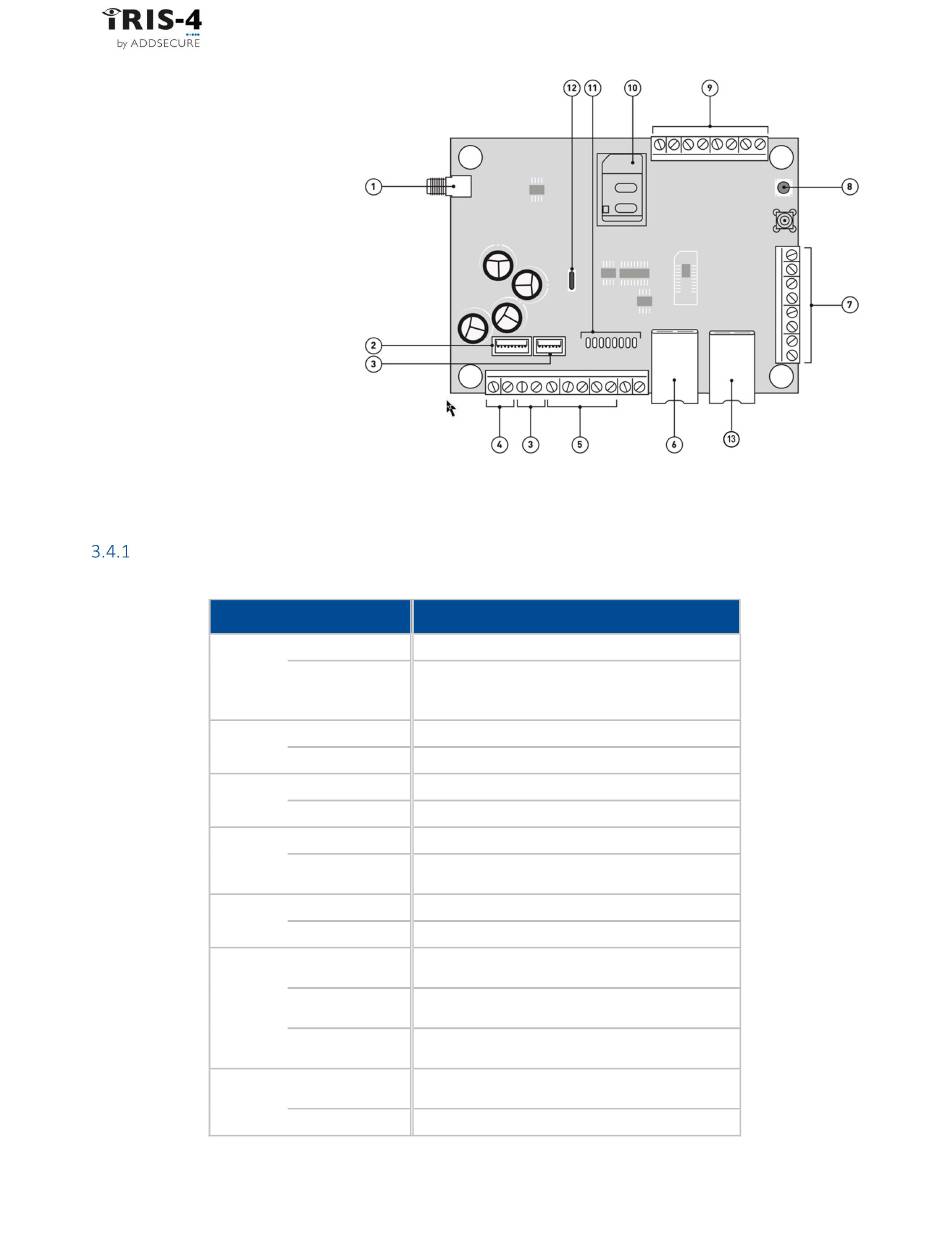

The 6xx

①
= Cellular antenna socket
②
= Serial (TTL) connector
③
= RS485 connector and screw
terminals
④
= DC power screw terminals
⑤
= 2 x RS232 screw terminals
⑥
= Ethernet 1 connector
⑦
= Pin input screw terminals
⑧
= AP button
⑨
= Relays screw terminals
⑩
= SIM card holder
⑪
= LEDs
⑫
= Micro USB connector
⑬
= Ethernet 2 connector

LED indications

LED status
SYS
SIM
GSM
GPRS/3G
Ethernet
Serial
Poll
page 12
Indication
On Terminal is operational and all systems ok.
Flashing Not currently configured or indicating there are
current faults outstanding. See section 9.1,
"Trouble report".
On Terminal can see the SIM card (IRIS-4 640D).
Off Terminal cannot see the SIM card (IRIS-4 640D).
On GSM connected / registered (IRIS-4 640D).
Off GSM Not connected / registered (IRIS-4 640D).
On Terminal has network connection (IRIS-4 640D).
Off Terminal has no network connection (IRIS-4
640D).
On ETH connected / synchronized.
Off ETH disconnected / not synchronized.
Flashing Not communicating with panel.
0.2s on/ off
Flashing Terminal not configured.
1.5s on/off
Flashing Normal communication.
0.1s on/0.9s off
On (flickers per Successfully polling with ARC.
poll)
Off Not polling with ARC.
