3.2

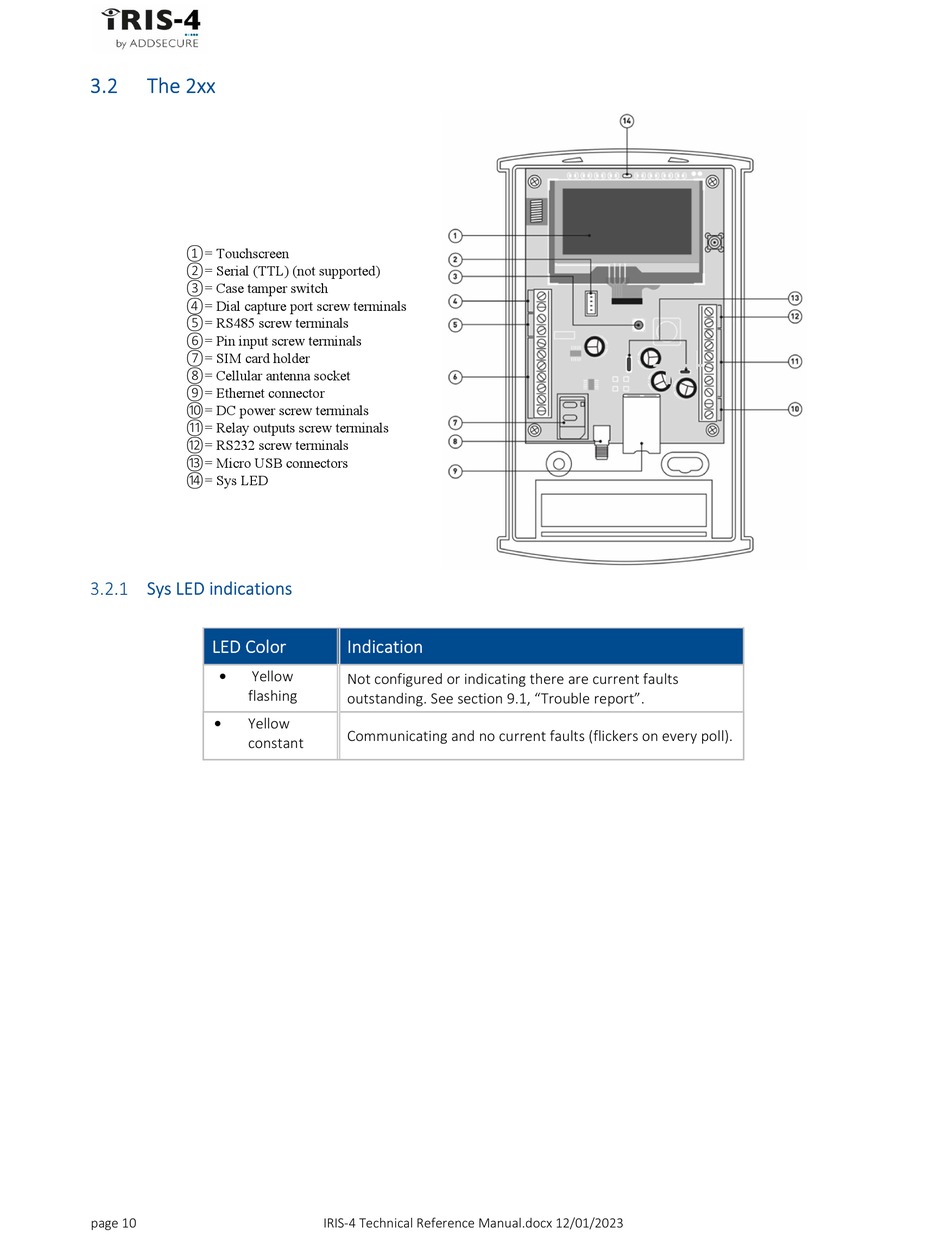

The 2xx

①= Touchscreen
②= Serial (TTL) (not supported)
③= Case tamper switch
④= Dial capture port screw terminals
⑤= RS485 screw terminals
⑥= Pin input screw terminals
⑦= SIM card holder
⑧= Cellular antenna socket
⑨= Ethernet connector
⑩= DC power screw terminals
⑪= Relay outputs screw terminals
⑫= RS232 screw terminals
⑬= Micro USB connectors
⑭= Sys LED

Sys LED indications

LED Color

Yellow
flashing
 Yellow
constant
page 10
Indication
Not configured or indicating there are current faults
outstanding. See section 9.1, "Trouble report".
Communicating and no current faults (flickers on every poll).
