Service Manual
SUNNY BOY 1300TL / 1600TL / 2100TL
SB13-21TL-SG-en-10 | Version 1.0
AMERICAN ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNNY BOY 1300TL and is the answer not in the manual?

Questions and answers

Summary of Contents for SMA Solar Technology SUNNY BOY 1300TL

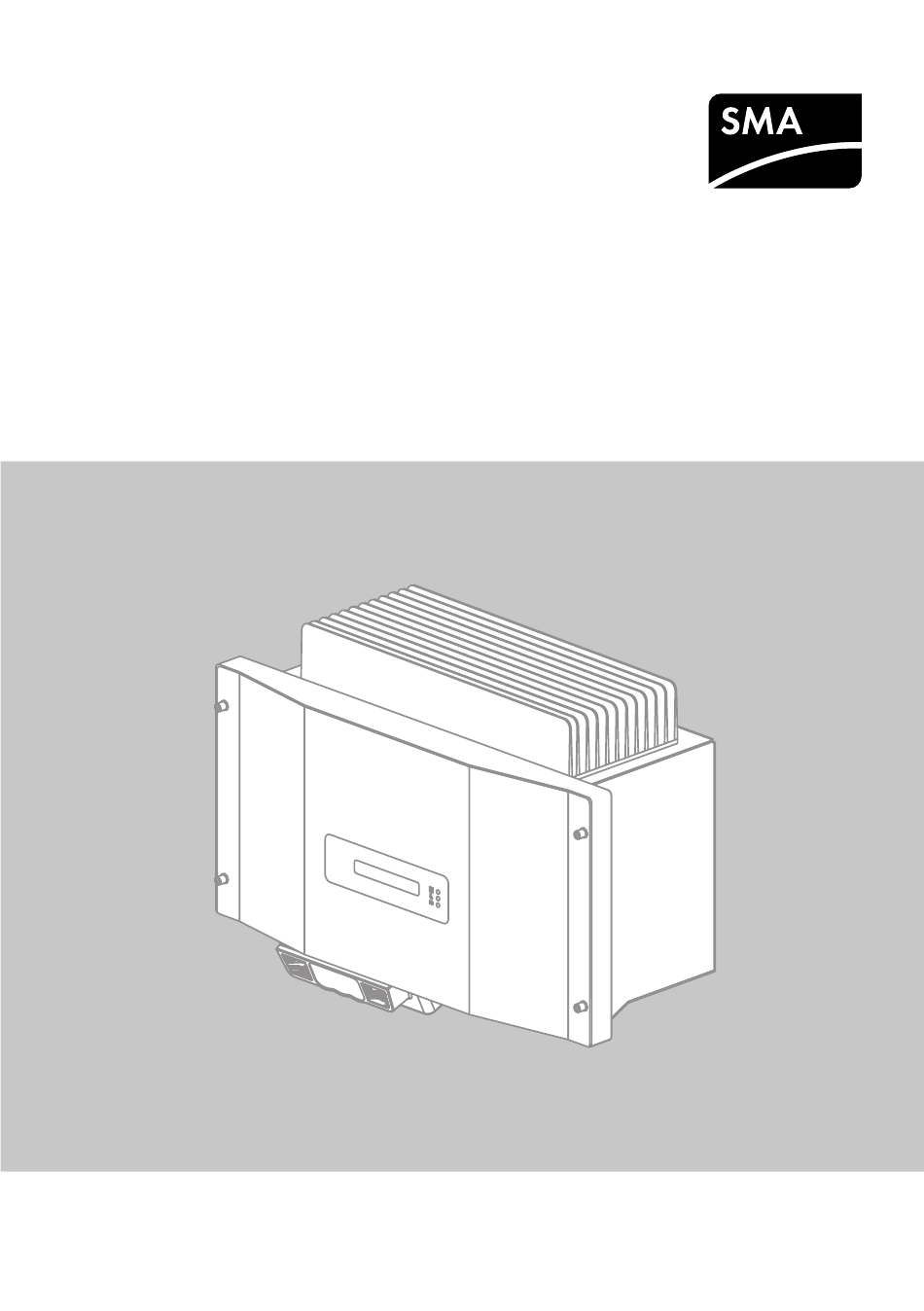

  • Page 1 Service Manual SUNNY BOY 1300TL / 1600TL / 2100TL SB13-21TL-SG-en-10 | Version 1.0 AMERICAN ENGLISH...
  • Page 2 The information contained in these documents is property of SMA Solar Technology AG. Any publication, whether in whole or in part, requires prior written approval by SMA Solar Technology AG. Internal reproduction used solely for the purpose of product evaluation or other proper use is allowed and does not require prior approval.
  • Page 3: Table Of Contents

    SMA Solar Technology AG Table of Contents Table of Contents Information on this Document ..........Safety..................Skills of Qualified Persons ..............6 Safety Precautions................6 Disconnecting the Inverter from Voltage Sources ......7 Cleaning the Inverter..............Errors, Disturbances, Warnings..........10 Checking the ESS for Wear ............
  • Page 4: Information On This Document

    Read and observe all documents supplied with the product. Validity This document is valid for the following device types from firmware version 4.50: • Sunny Boy 1300TL (SB 1300TL-10) • Sunny Boy 1600TL (SB 1600TL-10) • Sunny Boy 2100TL (SB 2100TL) Target Group This document is intended for qualified persons.
  • Page 5 SMA Solar Technology AG 1 Information on this Document Symbol Explanation Indicates a situation which, if not avoided, can result in property damage Information that is important for a specific topic or goal, but is not safety-relevant Indicates a requirement for meeting a specific...
  • Page 6: Safety

    2 Safety SMA Solar Technology AG 2 Safety 2.1 Skills of Qualified Persons The tasks described in this document must only be performed by qualified persons. Qualified persons must have the following skills: • Knowledge of how an inverter works and is operated •...
  • Page 7: Disconnecting The Inverter From Voltage Sources

    SMA Solar Technology AG 2 Safety Damage to the inverter due to electrostatic discharge Touching electronic components can cause damage to or destroy the inverter through electrostatic discharge. • Ground yourself before touching any component. Damage to the display or the type label due to the use of cleaning agents •...
  • Page 8 2 Safety SMA Solar Technology AG 8. Pull the AC connection socket out of the AC pin connector on the inverter. Danger to life due to high voltages The capacitors in the inverter take ten minutes to discharge. • Wait ten minutes before opening the inverter.
  • Page 9: Cleaning The Inverter

    SMA Solar Technology AG 3 Cleaning the Inverter 3 Cleaning the Inverter Risk of burns from hot heat sink During operation, the heat sink at the top of the inverter can reach temperatures of over 70°C. • Do not touch the heat sink.
  • Page 10: Errors, Disturbances, Warnings

    4 Errors, Disturbances, Warnings SMA Solar Technology AG 4 Errors, Disturbances, Warnings Errors, disturbances and warnings are shown in the display and start in the first line with the word "Error", "Disturbance" or "Warning". In the second line of the display, the cause of the error, disturbance or warning is shown.
  • Page 11 SMA Solar Technology AG 4 Errors, Disturbances, Warnings Message Cause and corrective measures ACVtgRPro The ten-minute average line voltage is no longer within the permissi- ble range. The line voltage or grid impedance at the connection point is too high. The inverter disconnects from the utility grid to com- ply with the power quality.
  • Page 12 4 Errors, Disturbances, Warnings SMA Solar Technology AG Message Cause and corrective measures Fault current The inverter has detected a change in the differential current. A change in the differential current can be caused by a ground fault, dI-Srr residual current or a malfunction. The inverter disconnects from the utility grid.
  • Page 13 SMA Solar Technology AG 4 Errors, Disturbances, Warnings Message Cause and corrective measures Iac-DC_Offs-Srr Excessive DC current has been detected during feed-in operation. Iac-DC_Offs-Bfr Corrective measures: • Ensure that the grid conditions are complied with. • If this message is displayed frequently or recurrently, contact the SMA Service Line.
  • Page 14 4 Errors, Disturbances, Warnings SMA Solar Technology AG Message Cause and corrective measures STM Timeout Internal program run disturbance Corrective measures: • If this message is displayed frequently, contact the SMA Service Line. Vac-Bfr The line voltage is no longer within the permissible range. The in- verter has disconnected from the utility grid for safety reasons.
  • Page 15 SMA Solar Technology AG 4 Errors, Disturbances, Warnings Message Cause and corrective measures Vinternal The internal hardware monitoring system has detected an overvolt- age in the DC link of the inverter. Corrective measures: • If this message is displayed frequently, contact the SMA Service Line.
  • Page 16: Checking The Ess For Wear

    5 Checking the ESS for Wear SMA Solar Technology AG 5 Checking the ESS for Wear The ESS is an optional device. Depending on the design of the ESS, you can recognize wear either on the metal mounting tabs or on the plastic of the ESS.
  • Page 17: Red Led Is Glowing Continuously

    SMA Solar Technology AG 6 Red LED is Glowing Continuously 6 Red LED is Glowing Continuously 6.1 Procedure If the red LED is continuously glowing during operation, there is a ground fault in the PV array or at least one of the varistors for overvoltage protection is defective.
  • Page 18 6 Red LED is Glowing Continuously SMA Solar Technology AG ☑ The sum of the two voltages to ground potential is approximately equal to the voltage between the positive and negative terminals. • If a ground fault is present, determine the location of the ground fault via the ratio of the two measured voltages and eliminate the ground fault.
  • Page 19 SMA Solar Technology AG 6 Red LED is Glowing Continuously Calculating the insulation resistance The total resistance of the PV system to be expected or of an individual string can be calculated using the following formula: total The exact insulation resistance of a PV module can be obtained from the module manufacturer or the datasheet.
  • Page 20: Checking The Function Of The Varistors

    6 Red LED is Glowing Continuously SMA Solar Technology AG 6.3 Checking the Function of the Varistors If no ground fault was detected in the PV system, check the function of the varistors as described below: Figure 2: Varistors inside the inverter...
  • Page 21 SMA Solar Technology AG 6 Red LED is Glowing Continuously 1. Disconnect the inverter from all voltage sources Disconnecting the Inverter from Voltage Sources. 2. Remove all screws from the enclosure lid and pull the enclosure lid forward smoothly. 3. Remove the grounding conductor from the bottom of the enclosure lid.
  • Page 22: Recommissioning The Inverter

    7 Recommissioning the Inverter SMA Solar Technology AG 7 Recommissioning the Inverter If you have disconnected the inverter from all voltage sources (e.g. for configuration purposes) and want to recommission it, proceed as follows. Requirements: ☐ The circuit breaker must be correctly rated.
  • Page 23 SMA Solar Technology AG 7 Recommissioning the Inverter Risk of fire due to tightening the screw within the ESS A perfect contact between the ESS and the inverter is only guaranteed if the ESS plug remains flexible. • Do not tighten the screw in the plug of the ESS.
  • Page 24: Decommissioning

    8 Decommissioning SMA Solar Technology AG 8 Decommissioning Risk of injury when lifting the inverter, or if it is dropped The inverter is heavy. There is risk of injury if the inverter is lifted incorrectly or dropped while being transported or when attaching it to or removing it from the wall mounting bracket.
  • Page 25: Accessories

    9 Accessories 9 Accessories You will find the corresponding accessories and spare parts for your product in the following overview. If required, these can be ordered from SMA Solar Technology AG or your distributor. Designation Brief description SMA order number...
  • Page 26: Contact

    10 Contact SMA Solar Technology AG 10 Contact If you have technical problems concerning our products, contact the SMA Service Line. We need the following information in order to provide you with the necessary assistance: • Inverter type • Inverter serial number •...
  • Page 27 Lisboa Internacional: +351 212377860 România Vezi Česko (Cehia) Schweiz Siehe Deutschland Slovensko pozri Česko (Česká republika) South Africa SMA Solar Technology South Africa 08600 SUNNY (08600 78669) Pty Ltd. International: +27 (12) 643 1785 Centurion (Pretoria) United King- SMA Solar UK Ltd. +44 1908 304899 Milton Keynes Ελλάδα...
  • Page 28 10 Contact SMA Solar Technology AG 대한민국 SMA Technology Korea Co., Ltd. +82 2 508-8599 서울 中国 SMA Beijing Commercial Company +86 10 5670 1350 Ltd. 北京 +971 2 698-5080 SMA Middle East LLC Middle East LLC Other countries International SMA Service Line Toll free worldwide: 00800 SMA SERVICE (+800 762 7378423)
  • Page 32 SMA Solar Technology www.SMA-Solar.com...
