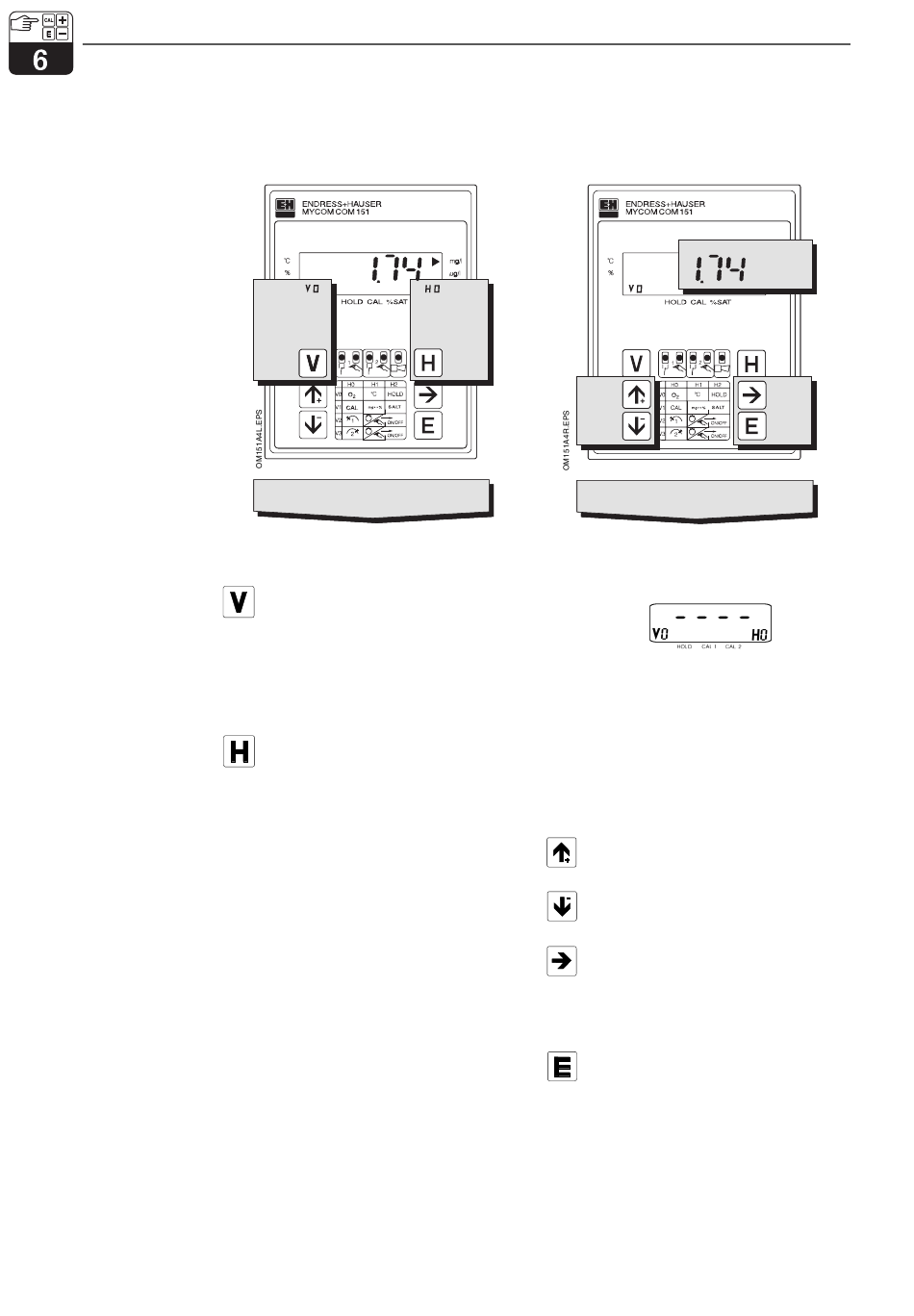

Key functions

Matrix position
V / H
V key:
Selection of row:
matrix fields V0 to V9
Each key stroke increases the V
(row) display value by one.
H key:
Selection of column:
matrix fields H0 to H9
Each key stroke increases the H
(column) display by one.
Example:
To select matrix field
V1 / H2:
Press V key 1 time
Press H key 2 times
mycom COM 121 / 151
Value range
for display or entry
Display for locked matrix fields:
Display for matrix fields that can be
changed: digit that can be edited
flashes.
Use these keys to enter values and
select functions:
Increase value
Decrease value
– Select digit:
This key cycles from 1st digit
to 2nd digit, 3rd digit, etc.
– Start editing
– Recall after E
Accept matrix field value
displayed or modified.
