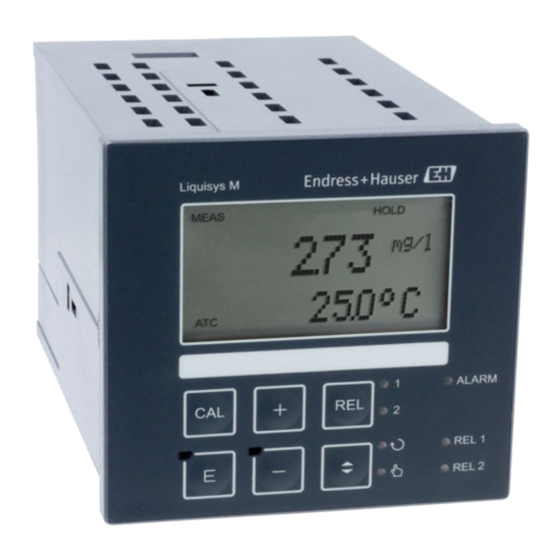

Endress+Hauser Liquisys M COM 223 F Operating Instructions Manual

Transmitter for dissolved oxygen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BA 246C/07/en/07.02
No. 51505938
Software version 2.40 or higher
Liquisys M
COM 223 F / 253 F
Transmitter for
Dissolved Oxygen
Operating Instructions
